Air Conditioning System

DIAGNOSTIC TROUBLE CODE CHART

B1411/11 - B1433/33:

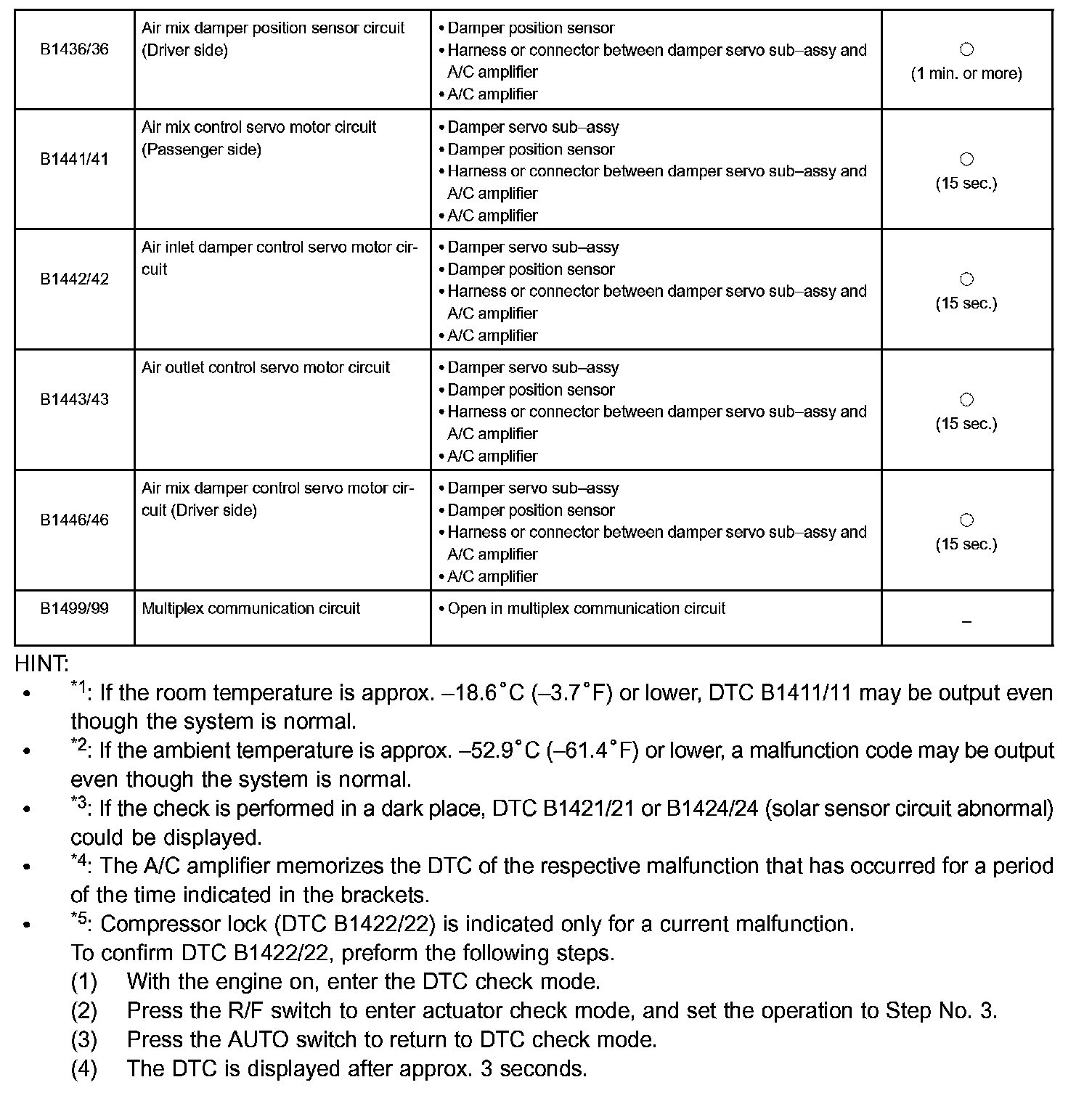

B1436/36 - B1499/99:

If a malfunction code is displayed during the DTCs check (sensor check), check the circuit listed for that code in the table.
