Automatic Transmission System

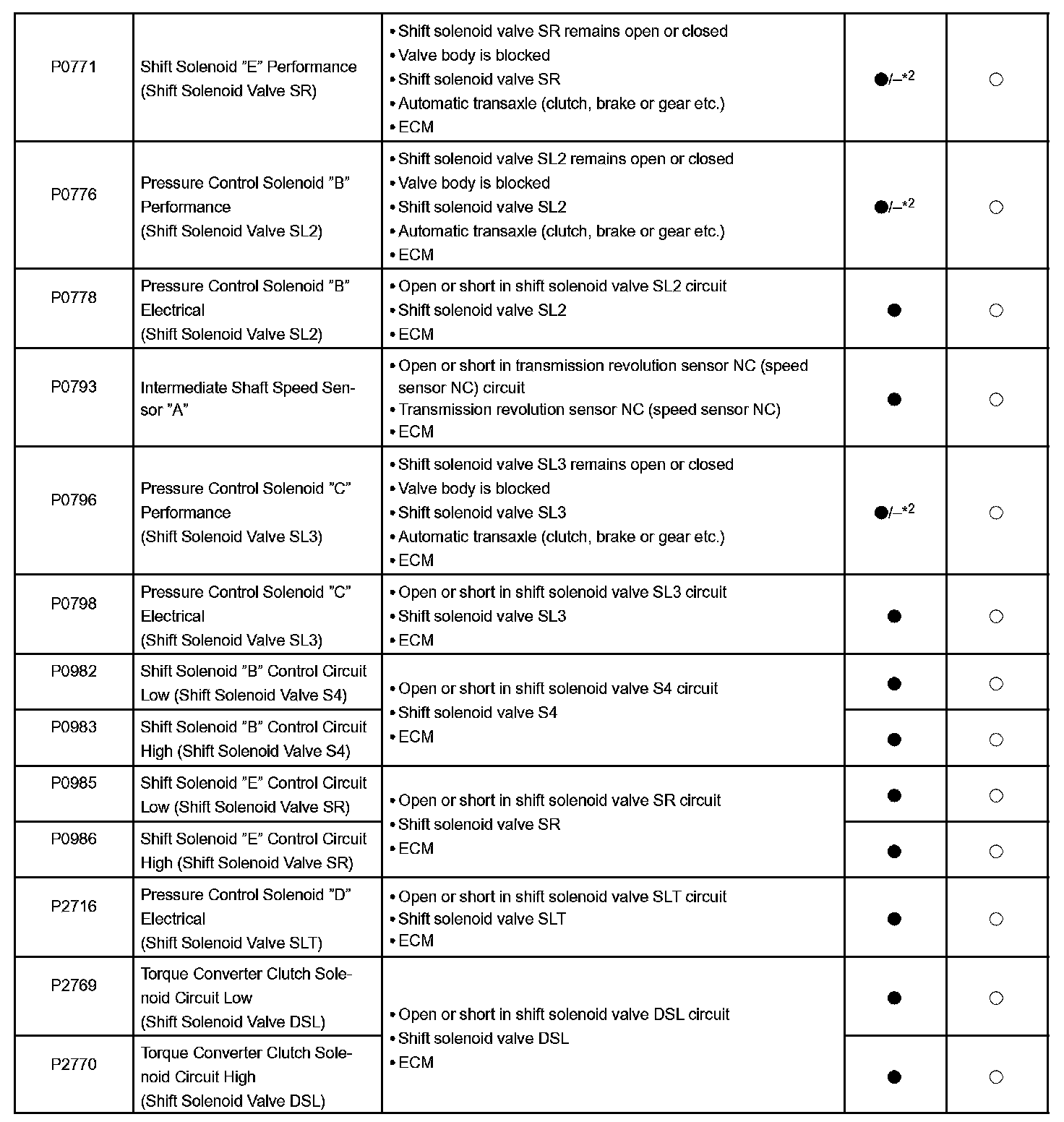

DIAGNOSTIC TROUBLE CODE CHART

P0500 - P0766:

P0771 - P2770:

If a DTC is displayed during the DTC check, check the circuit listed in the table and proceed to the corresponding troubleshooting.
