Engine Immobiliser System

DIAGNOSTIC TROUBLE CODE CHART

B2780 - B2798:

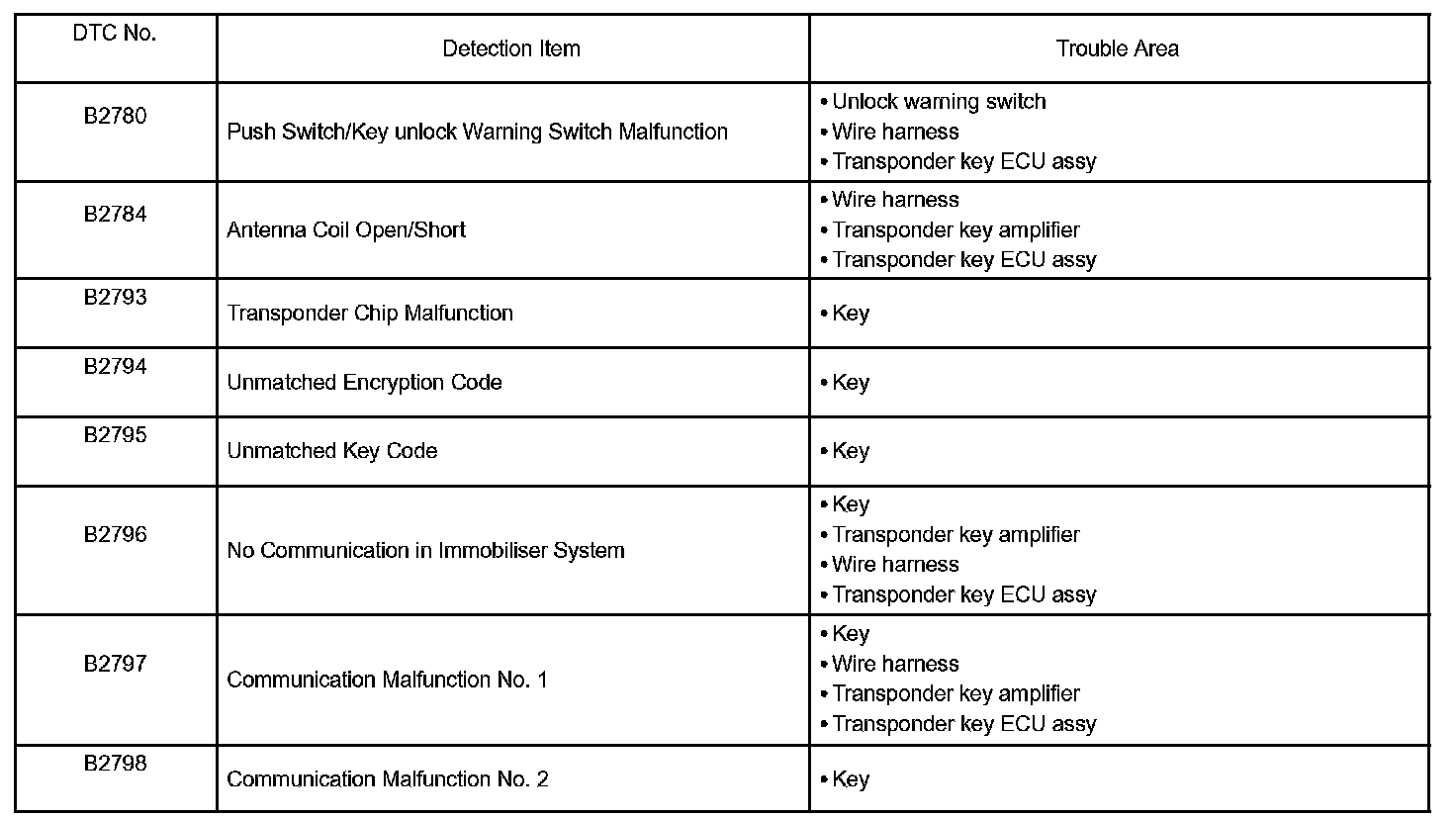

1. TRANSPONDER KEY ECU DIAGNOSTIC TROUBLE CODE CHART

B2799:

2. ECM DIAGNOSTIC TROUBLE CODE CHART

NOTE: The DTC for the immobilizer system is specified above. If the other codes are output, check the DTC chart for the engine control system.
