Multiplex Communication System

DIAGNOSTIC TROUBLE CODE CHART

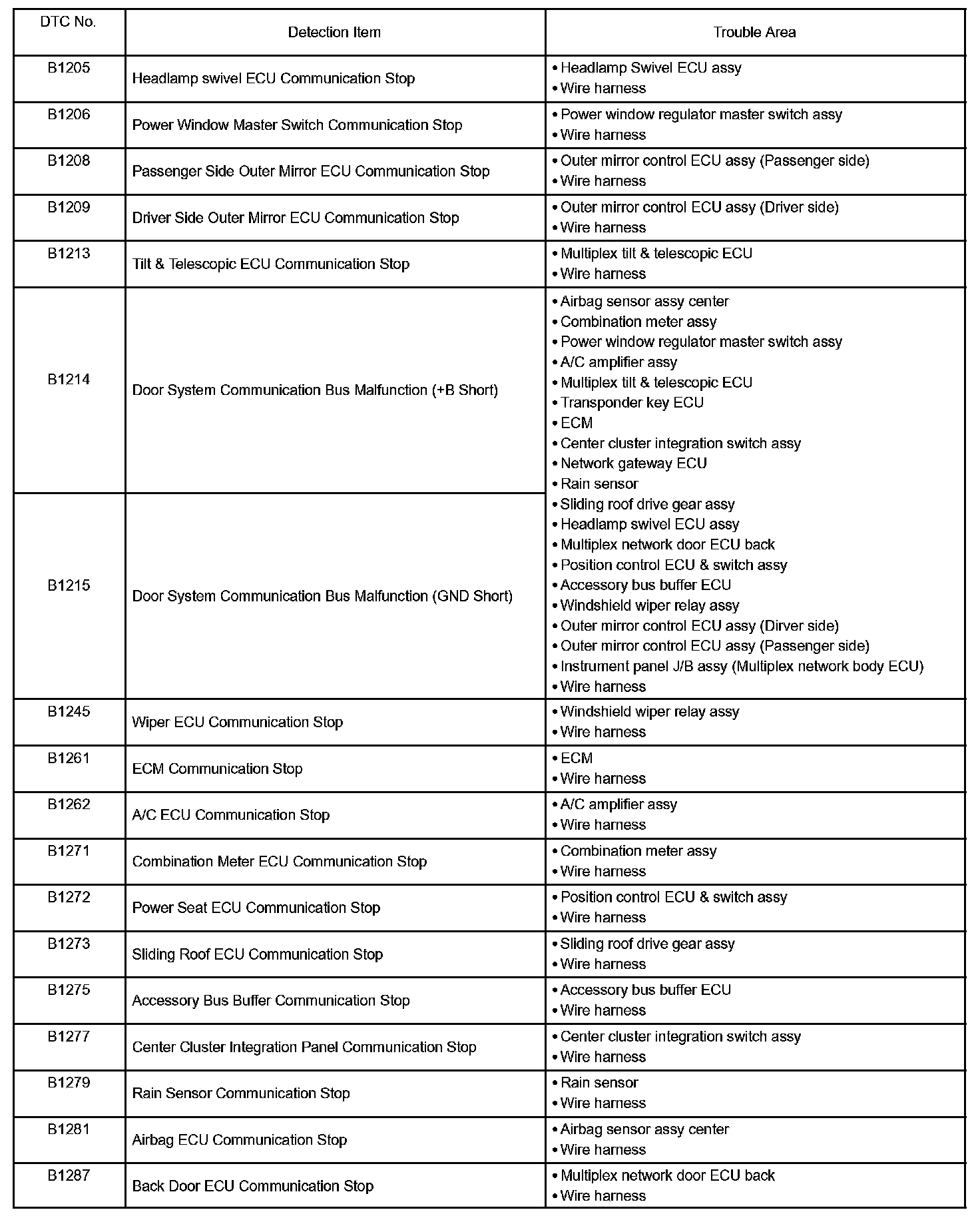

B1205 - B1287:

B1293 - B1294:

If a malfunction code is displayed during the DTC check, check the circuit listed for that code in the chart (Proceed to the troubleshooting given for the circuit).
