Navigation System

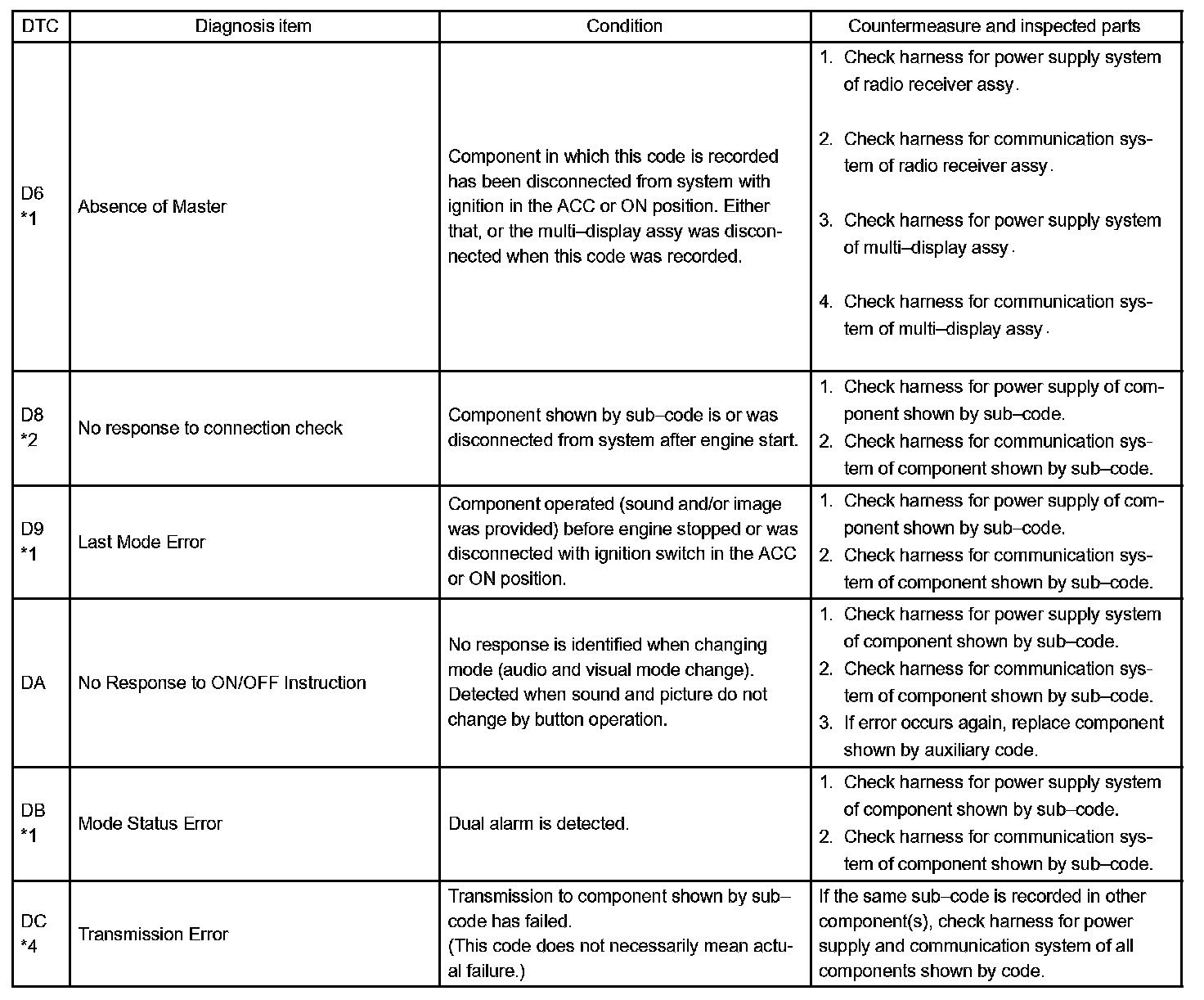

DIAGNOSTIC TROUBLE CODE CHART

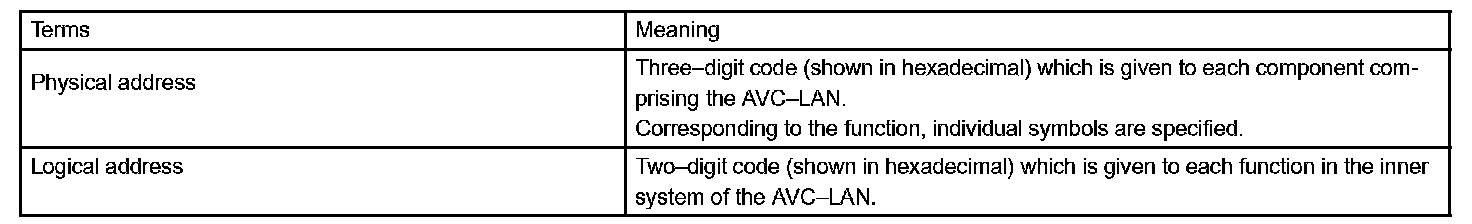

HINT: Titles for each unit are stated in the following order: physical address, (parts name) and [name indicated the DTC display].

1. RADIO RECEIVER ASSY (Physical address: 190) [AUDIO H/U]

HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting an engine.
- *2: This code is stored 180 seconds after the power supply connector is disconnected after engine start.
- *3: This code may be stored when the engine key is turned again after engine start.
- *4: This code may be stored when the engine key is turned back to the ON position and then again to the START position 1 minute after engine start.

Part 1:

Part 2:

a. Logical address: 01 (Communication control)

40:

b. Logical address: 61 (Cassette tape player s switch)

42 - 44:

47 - 48:

c. Logical address: 62 (CD player)

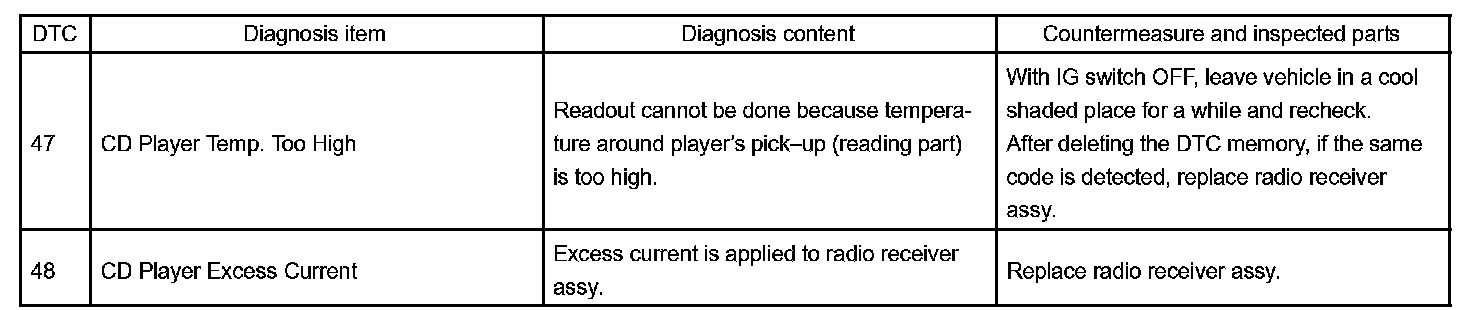

42 - 48:

d. Logical address: 63 (Indash CD changer)

2. NAVIGATION ECU (Physical address: 178) [NAVI]

HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting the engine.
- *2: This code is stored 210 seconds after the power supply connector of the master component is disconnected with the ignition switch in the ACC or ON position.
- *3: This code may be stored when the engine key is turned on again 1 minute after engine start.
- *4: This code may be stored when the engine key is turned again after the engine starts.

Part 1:

Part 2:

a. Logical address: 01 (Communication control)

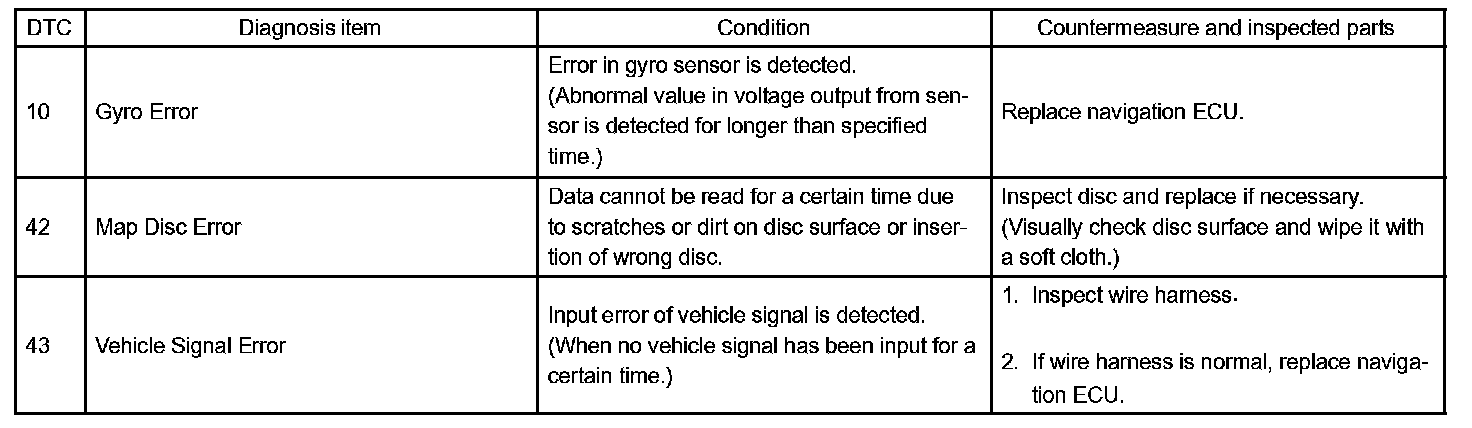

10 - 43:

b. Logical address: 58 (Navigation ECU)

11 - 41:

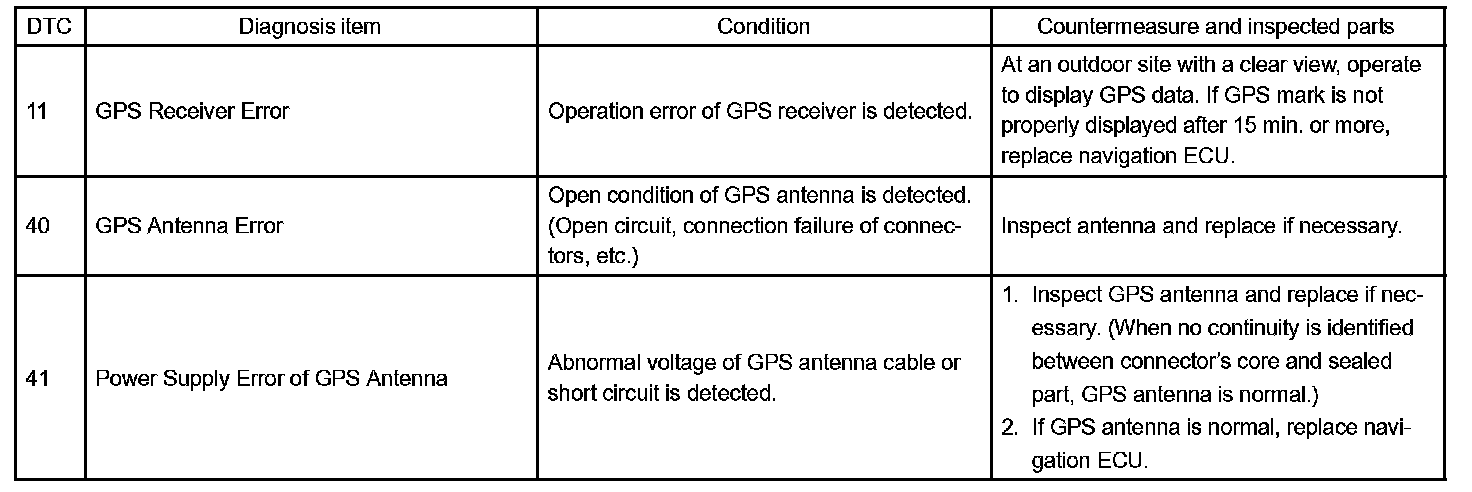

c. Logical address: 58 (GPS receiver)

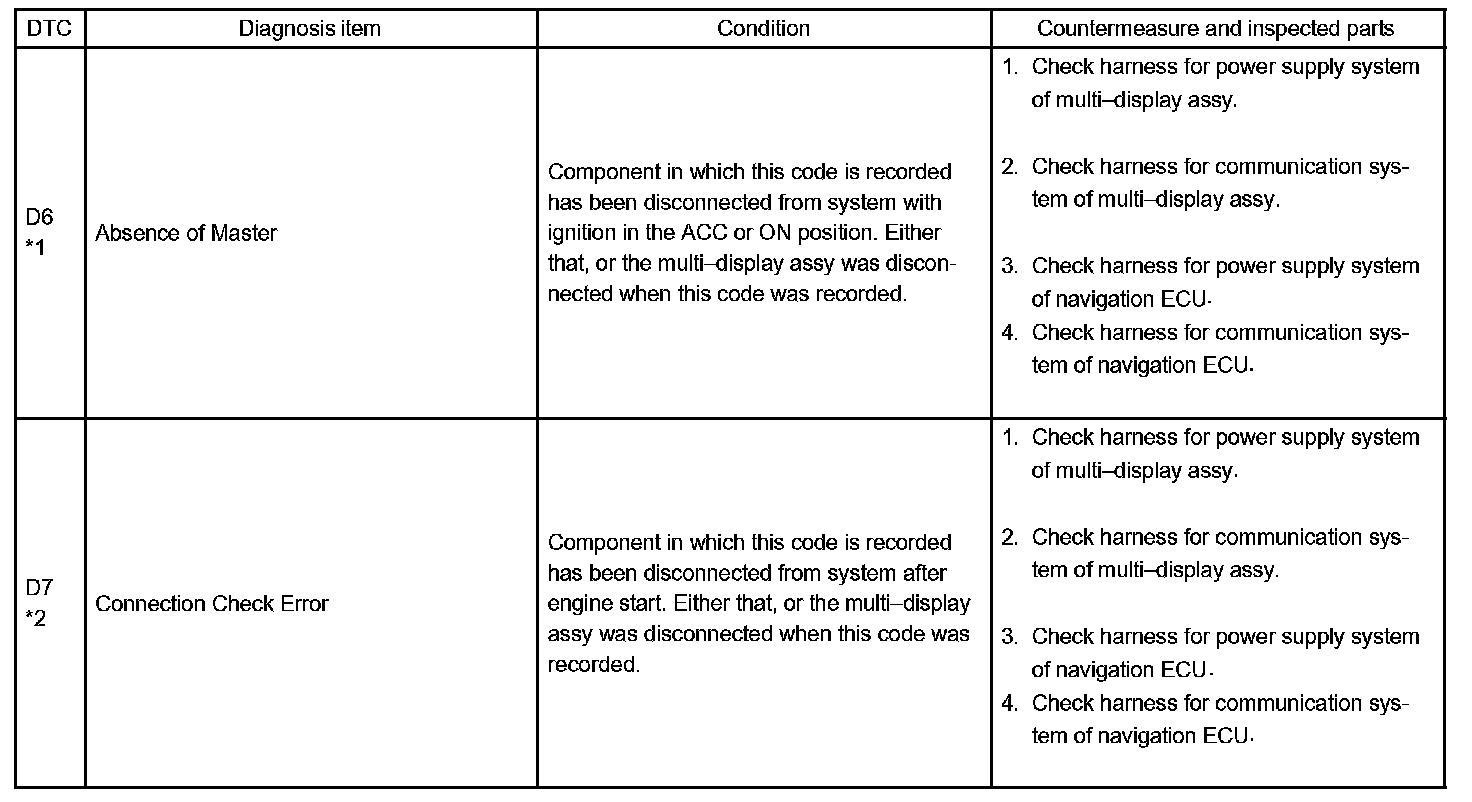

3. MULTI-DISPLAY ASSY (Physical address: 110) [EMV]

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It is stored 180 seconds after the power supply connector is disconnected after engine start.
- *3: It may be stored when the engine key is turned again after engine start.
- *4: It may be stored when the engine key is turned 1 min. again after engine start.

Part 1:

Part 2:

a. Logical address: 01 (Communication control)

10 - 11:

b. Logical address: 21 (Switch)

10 - 12:

c. Logical address: 34 (Front passenger monitor)

4. STEREO COMPONENT AMPLIFIER ASSY (Physical address: 440) [DSP-AMP2]

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It may be stored when the engine key is turned 1 min. again after engine start.
- *3: It may be stored when the engine key is turned again after engine start.
- *4: This code is stored 210 seconds after the power supply connector of the master component is disconnected with the ignition switch in the ACC or ON position.




Logical address: 01 (Communication control)

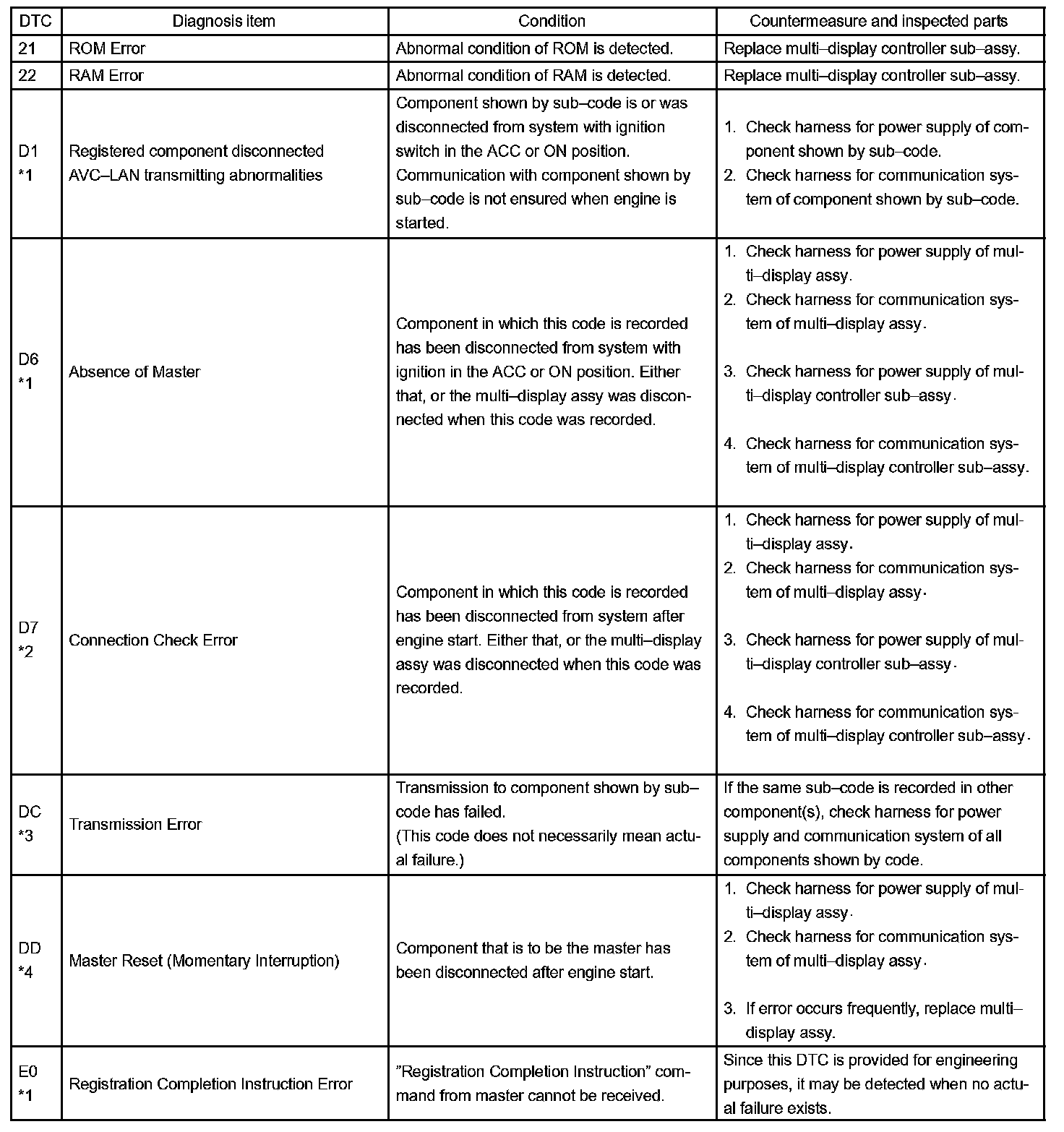

5. MULTI-DISPLAY CONTROLLER SUB-ASSY (Physical address: 1F6, 16C, 16D) [RSE ECU]

HINT:
- DTC of the Main AVC-LAN circuit is displayed on the multi-display assy, and DTC of the Sub AVC-LAN circuit is displayed on the television display assy.
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting an engine.
- *2: This code is stored 180 seconds after the power supply connector is disconnected engine start.

Part 1:

Part 2:

a. Main (1F6)
Logical address: 01 (Communication control)




b. Sub (16C, 16D) -AVC-LAN L-1
Logical address: 01 (Communication control)

6. NETWORK GATEWAY ECU (Physical address: 1C6) [G/W]

HINT:
*1: This code is stored 210 seconds after the power supply connector of the master component is disconnected with the ignition switch in the ACC or ON position.




Logical address: 01 (Communication control)

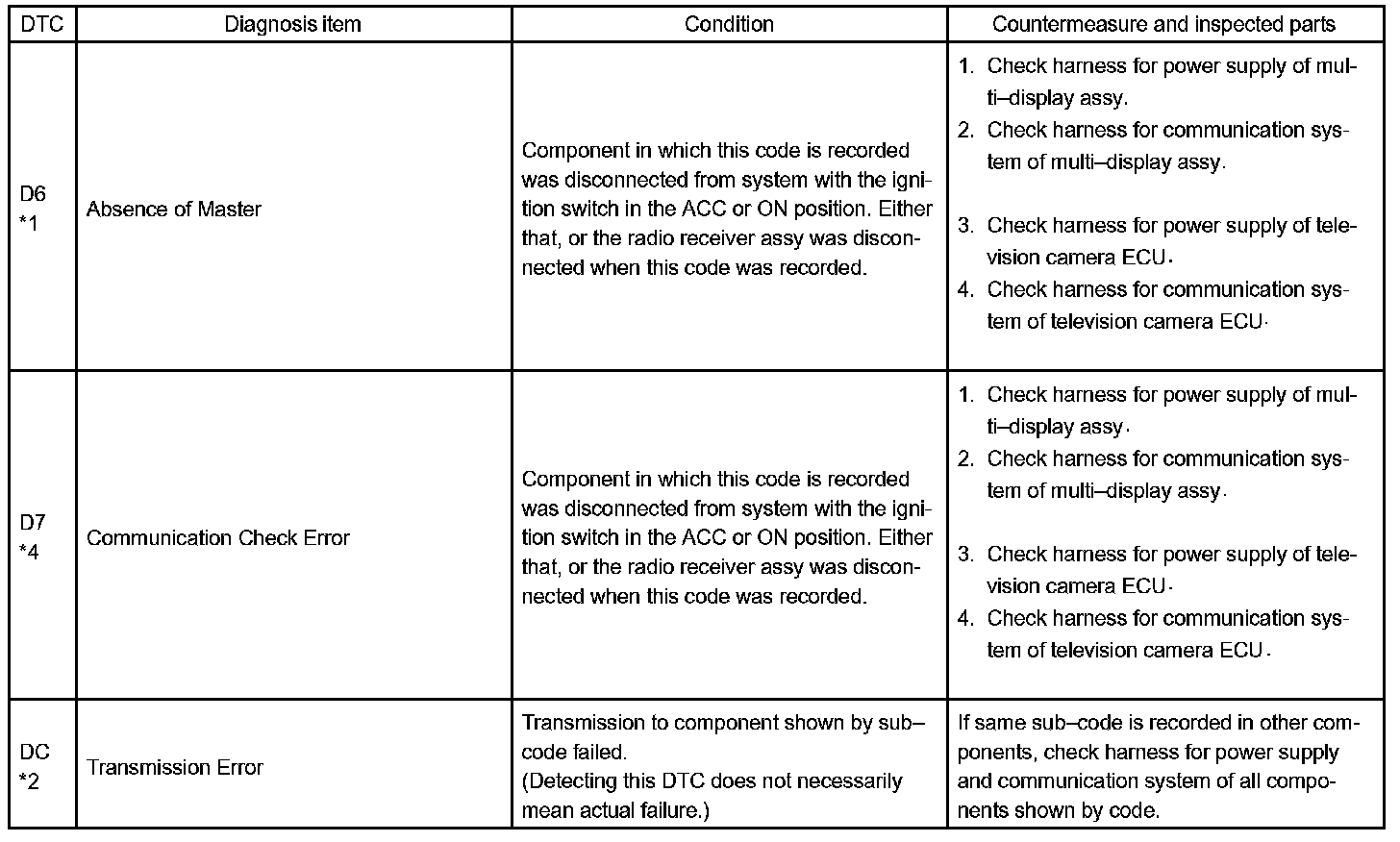

7. TELEVISION DISPLAY ASSY (Physical address: 1B0) [Rr-TV]

HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting the engine.
- *2: This code may be stored when the engine key is turned again in 1 minute after engine start.
- *3: This code may be stored when the engine key is turned again after engine start.
- *4: This code is stored 210 seconds after the power supply connector of the master component is disconnected with the ignition switch in the ACC or ON position.

Part 1:

Part 2:

a. Logical address: 01 (Communication control)

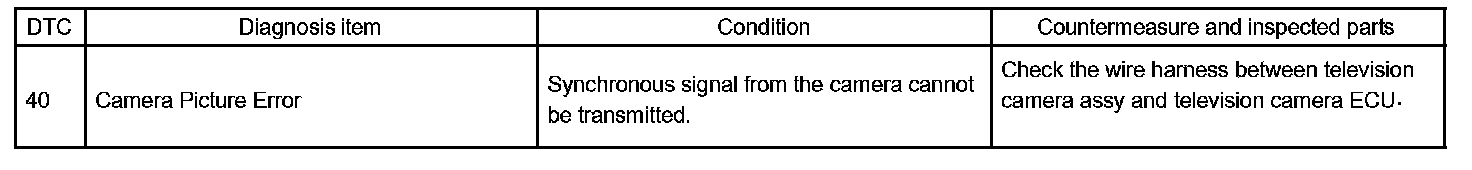

40:

b. Logical address: 5C (Camera unit)
