Radio, Stereo, and Compact Disc

DIAGNOSTIC TROUBLE CODE CHART






HINT: Tittle for each unit are stead in the following order: physical address, (parts name).

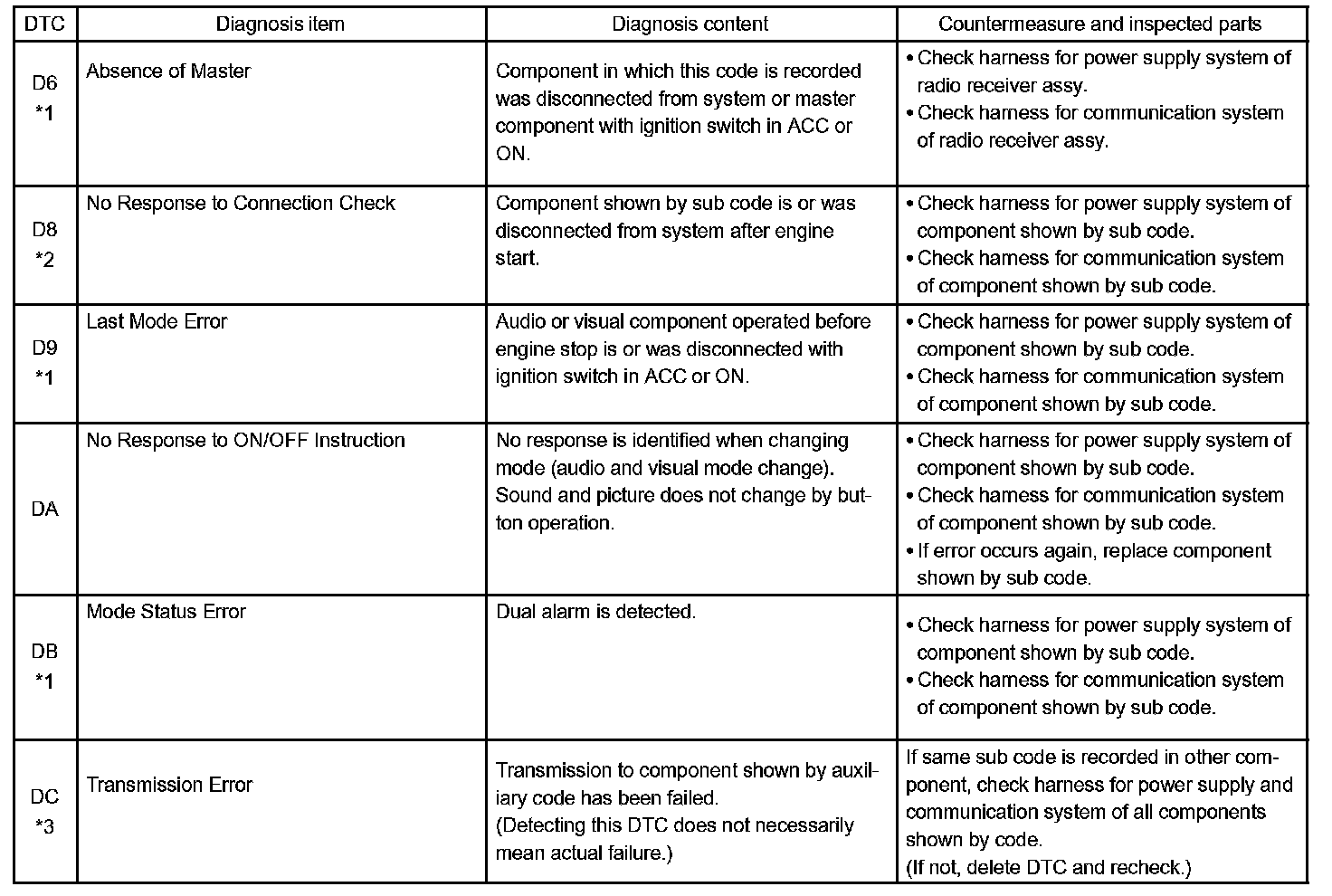

1. 190 (RADIO RECEIVER ASSY)

HINT:
- *1: Even if no failure is detected, trouble code may be stored depending on the battery condition or voltage for starting the engine.
- *2: The code is stored 180 seconds after the power supply connector is disconnected after engine start.
- *3: The code may be stored when the engine key is turned 1 minute after engine start.
- *4: The code may be stored when the engine key is turned again after engine start.
- *5: The code is stored 210 seconds after the master component power supply connector is disconnected with the ignition switch in the ACC or ON position.

Part 1:

Part 2:

a. Logical address: 01 (Communication control)

40:

b. Logical address: 61 (Cassette switch)

42 - 48:

c. Logical address: 62 (CD player)

42 - 48:

d. Logical address: 63 (In-dash CD changer)

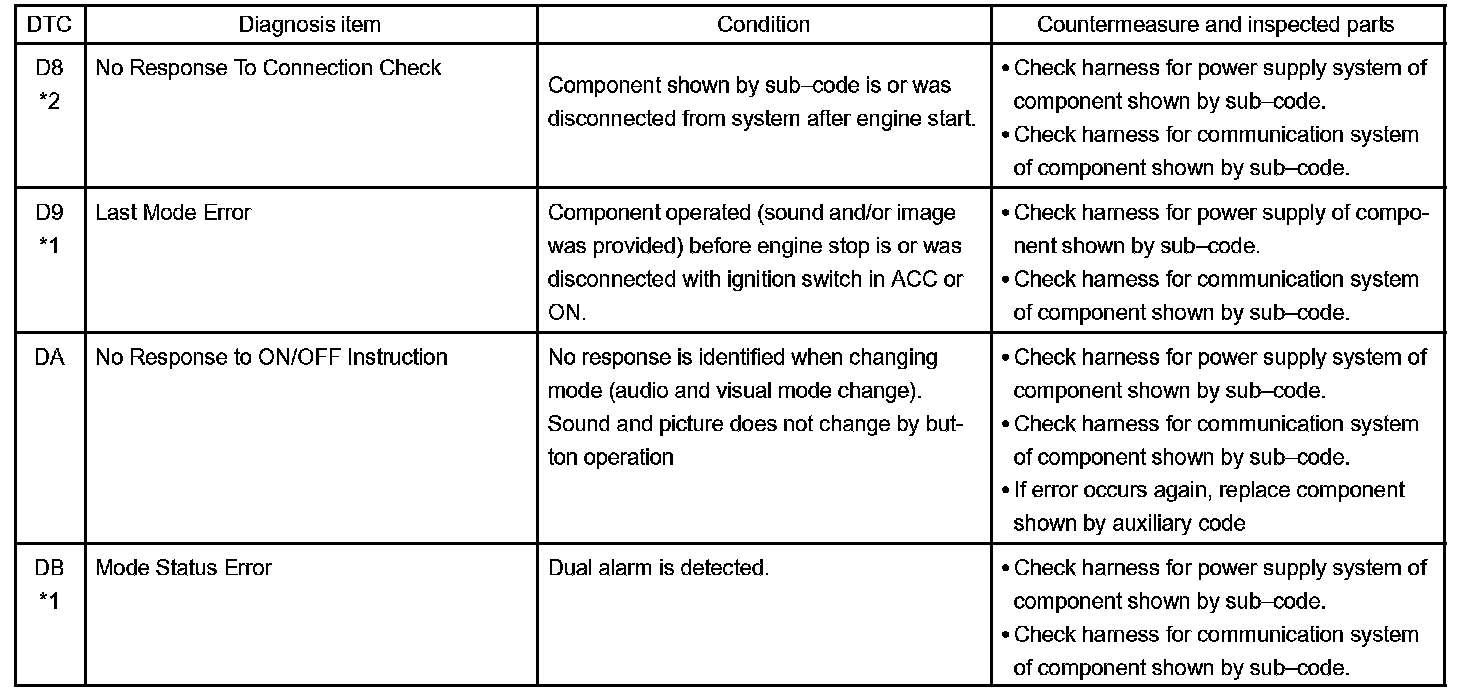

2. 440 (STEREO COMPONENT AMPLIFIER ASSY)

HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting the engine.
- *2: The code may be stored when the engine key is turned again 1 minute after engine start.
- *3: The code may be stored when the engine key is turned again after engine start.
- *4: The code is stored 210 seconds after the master component power supply is disconnected with the ignition switch in the ACC or ON position.

Part 1:

Part 2:

Logical address: 01 (Communication control)

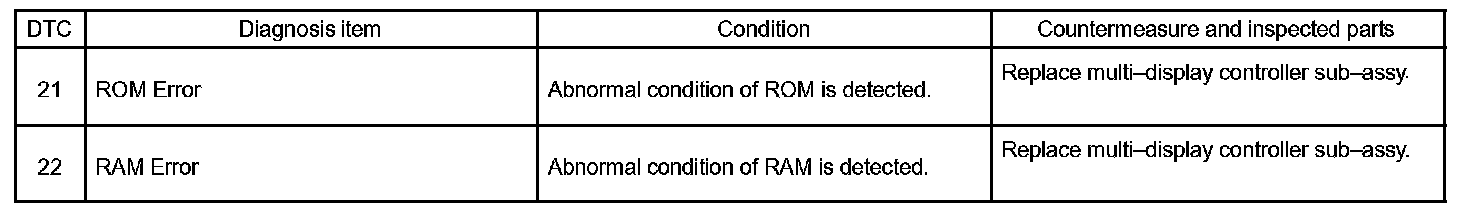

3. 1F6,16C (MULTI-DISPLAY CONTROLLER SUB-ASSY)

HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting the engine.
- *2: The code is stored 180 seconds after the power supply connector is disconnected after engine start.

Part 1:

Part 2:

Part 3:

a. Main (1F6)
Logical address: 01 (Communication control)

Part 1:

Part 2:

b. Sub (16C)-AVC-LAN L-1
Logical address: 01 (Communication control)
