Restraint Systems

DIAGNOSTIC TROUBLE CODE CHART

1. DTCs FOR SUPPLEMENTAL RESTRAINT SYSTEM

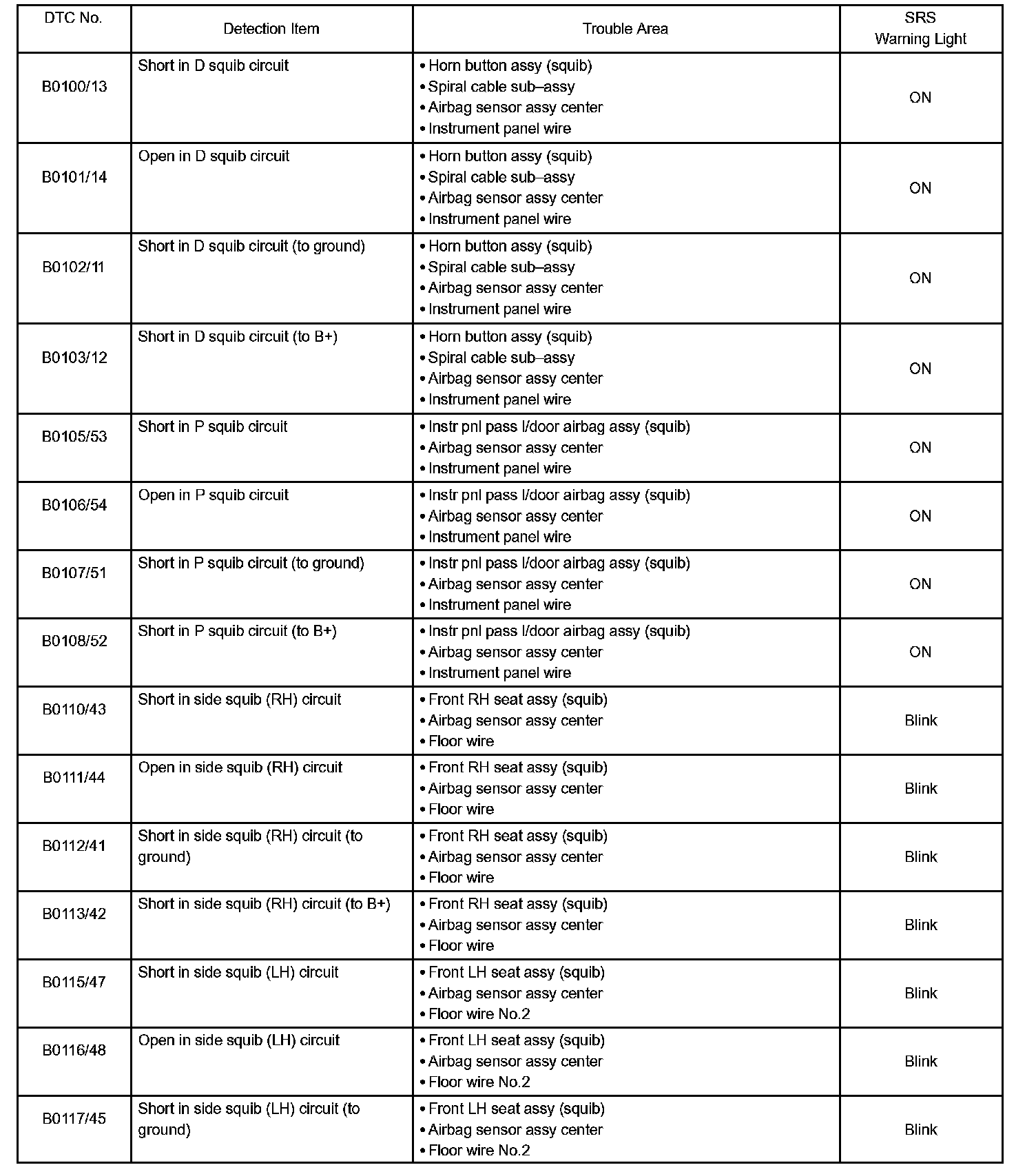

B0100/13 - B0117/45:

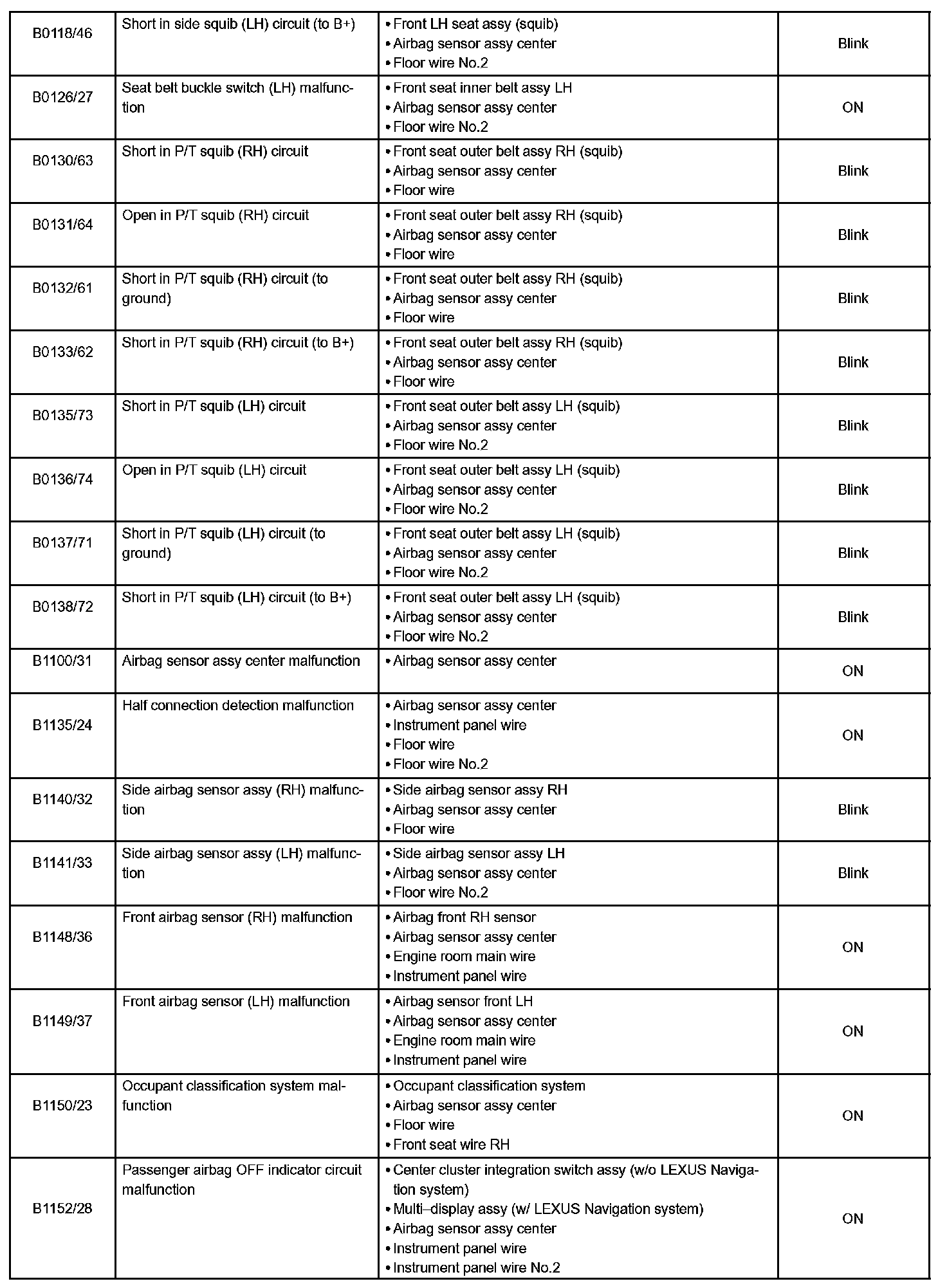

B0118/46 - B1152/28:

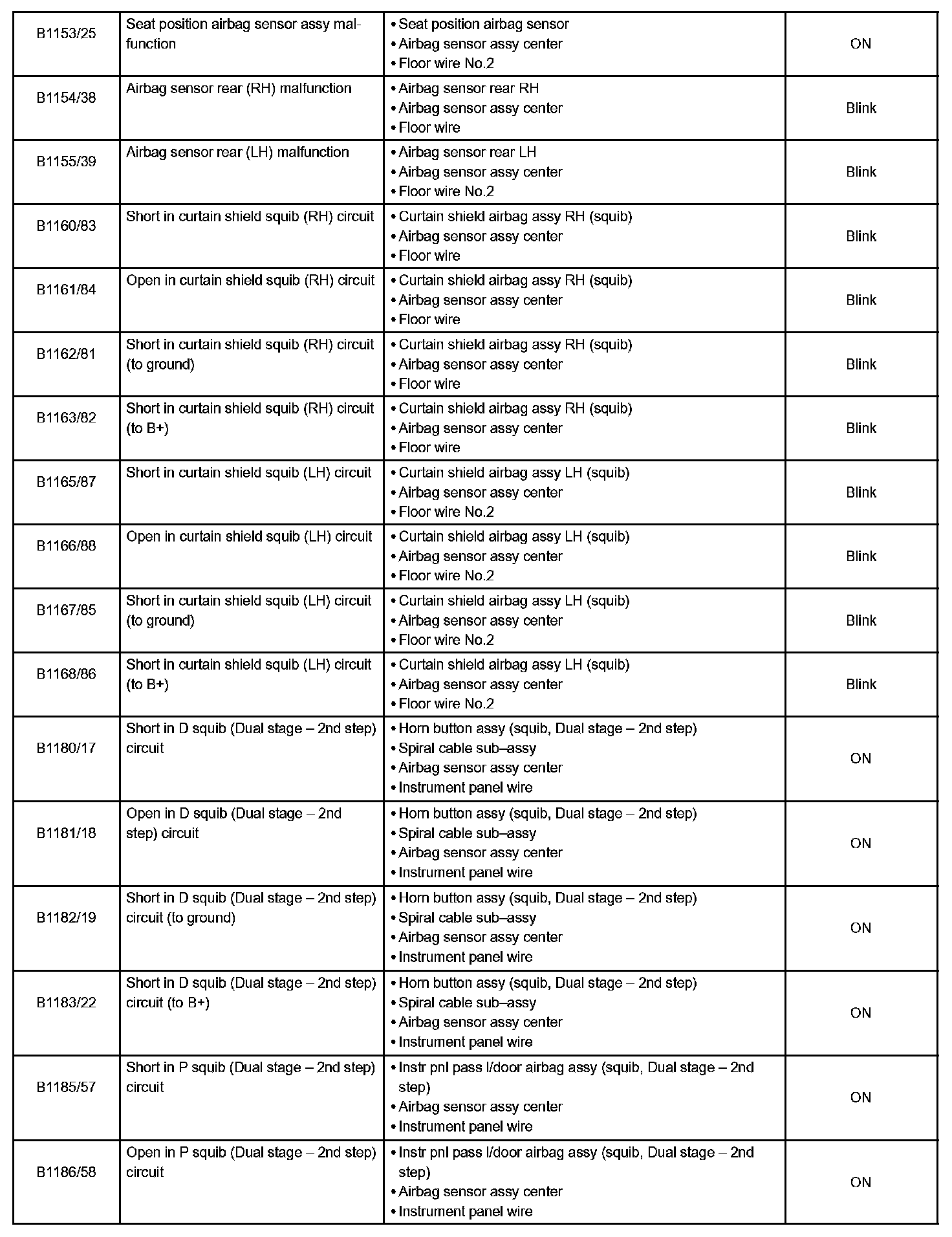

B1153/25 - B1186/58:

B1187/55 - Normal:

If a malfunction code is displayed during the DTC check, check the circuit listed for the code in the table (Proceed to the corresponding circuit).

HINT: When the DTC B1150/23 is detected as a result of troubleshooting for the Supplemental Restraint System, perform troubleshooting for the occupant detection system as shown in the chart.


2. DTCs FOR FRONT PASSENGER OCCUPANT CLASSIFICATION SYSTEM

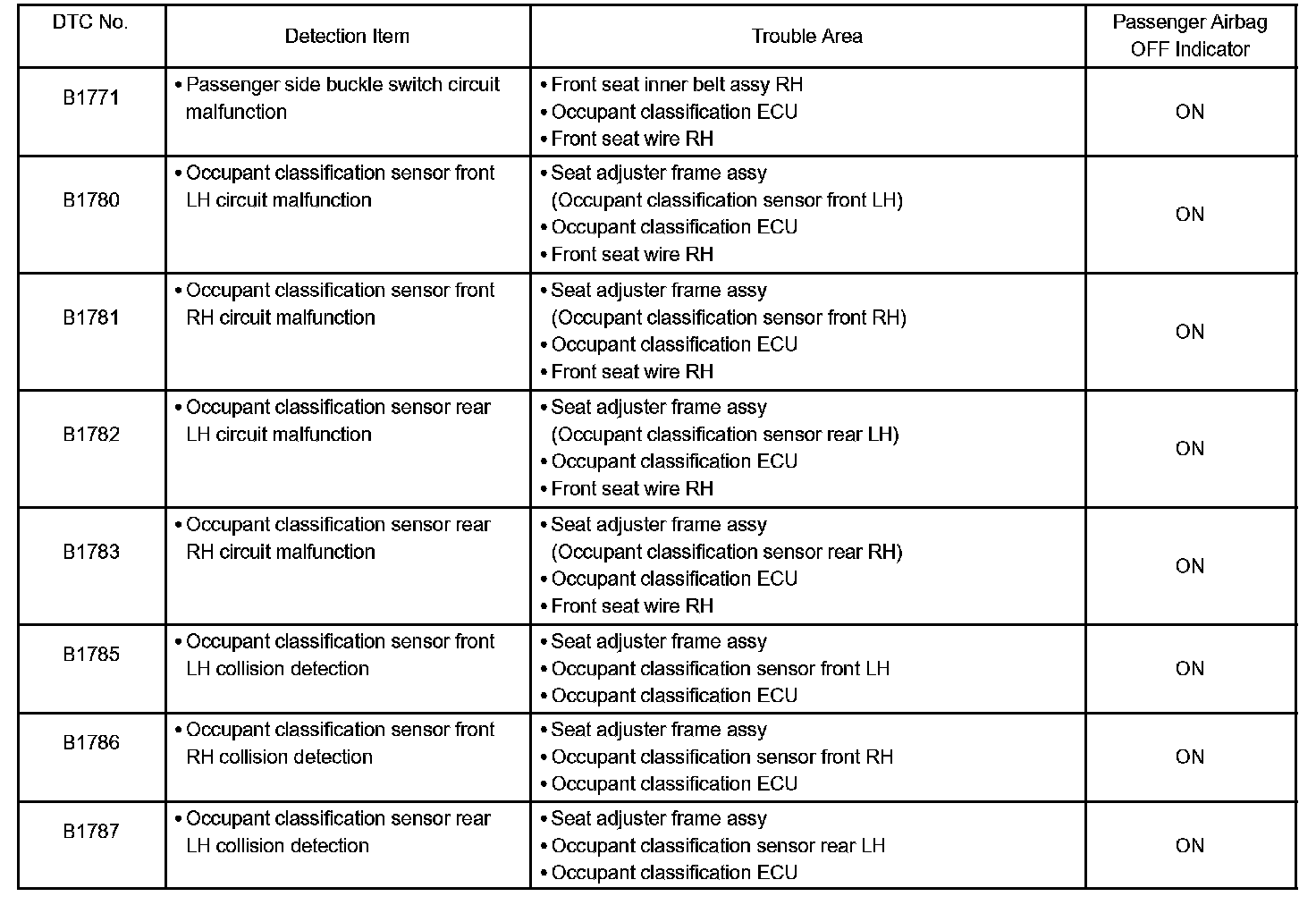

B1771 - B1787:

B1788 - B1796:

HINT: When the DTC B1150/23 is detected as a result of troubleshooting for the Supplemental Restraint System, perform troubleshooting for the front passenger occupant classification system as shown in the chart.

HINT:
- When the SRS warning light remains on and the DTC output is the normal system code, a voltage source drop is likely. This malfunction is not stored in the memory by the airbag sensor assy center. And if the power source voltage returns to normal, the SRS warning light will automatically go off.
- When 2 or more codes are indicated, the code with the lower number appears first.
- If a code is not listed on the display chart, the airbag sensor assy center may have failed.
- In the case of any malfunction concerning an open circuit, short to ground, or short to B+ due to an squib, another malfunction code may not be detected. In this case, repair the malfunction currently indicated and then perform malfunction diagnosis again.
