DTC P0339 CRANKSHAFT POSITION SENSOR "A" CIRCUIT INTERMITTENT

CIRCUIT DESCRIPTION

DTC Detection Condition:

The crankshaft position sensor (NE signal) consists of a magnet, iron core and pickup coil.

The NE signal plate (crankshaft position sensor plate) has 34 teeth and is installed on the crankshaft. The NE signal sensor generates 34 signals for each engine revolution. This sensor monitors a plate (timing rotor) located on the crankshaft timing pulley and is used by the ECM to detect crankshaft angle and engine speed (RPM/NE). As the crankshaft timing pulley rotates through an engine revolution, this sensor communicates the rotation of the NE signal plate as a pulse signal to the ECM. Based on the signal, the ECM controls fuel injection time and ignition timing.

MONITOR DESCRIPTION

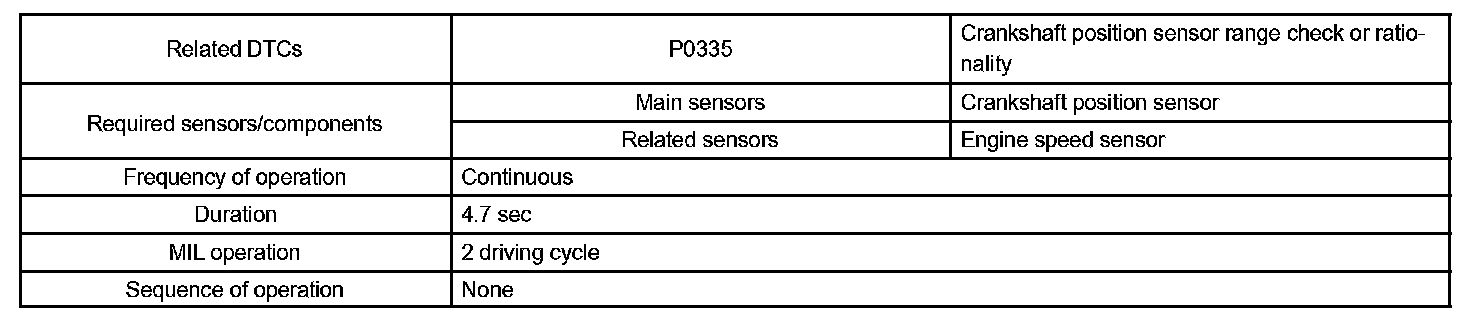

Monitor Strategy:

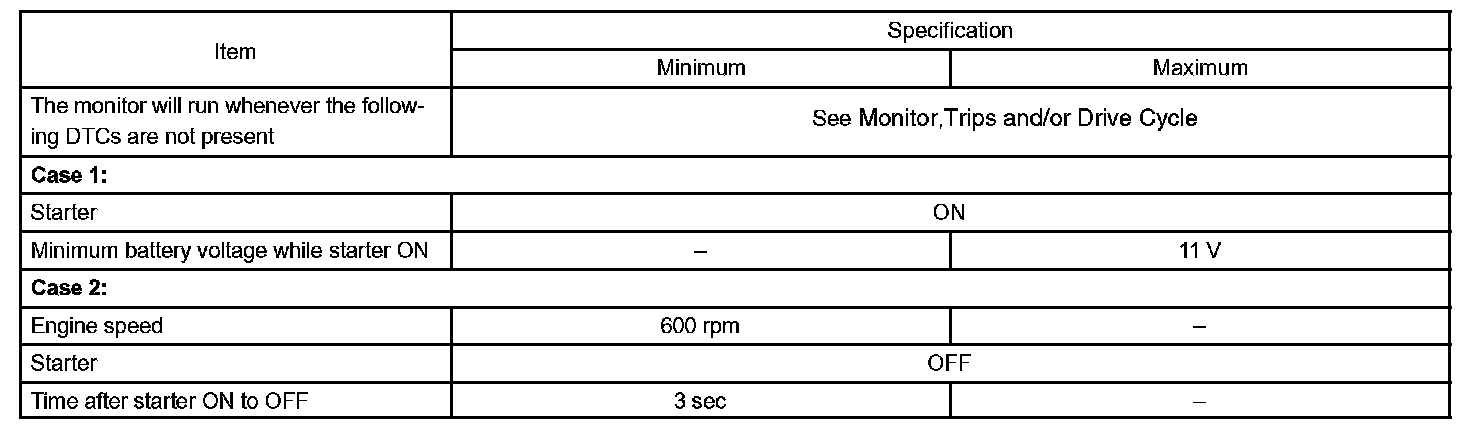

Typical Enabling Conditions:

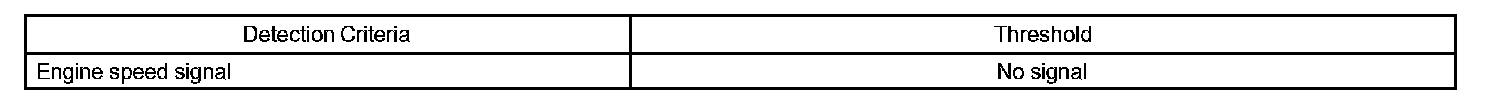

Typical Malfunction Thresholds:

If there is no signal from the crankshaft sensor even though the engine is revolving, the ECM interprets as a malfunction of the sensor.

Wiring Diagram:

Step 1:

Step 1 (Continued) - 4:

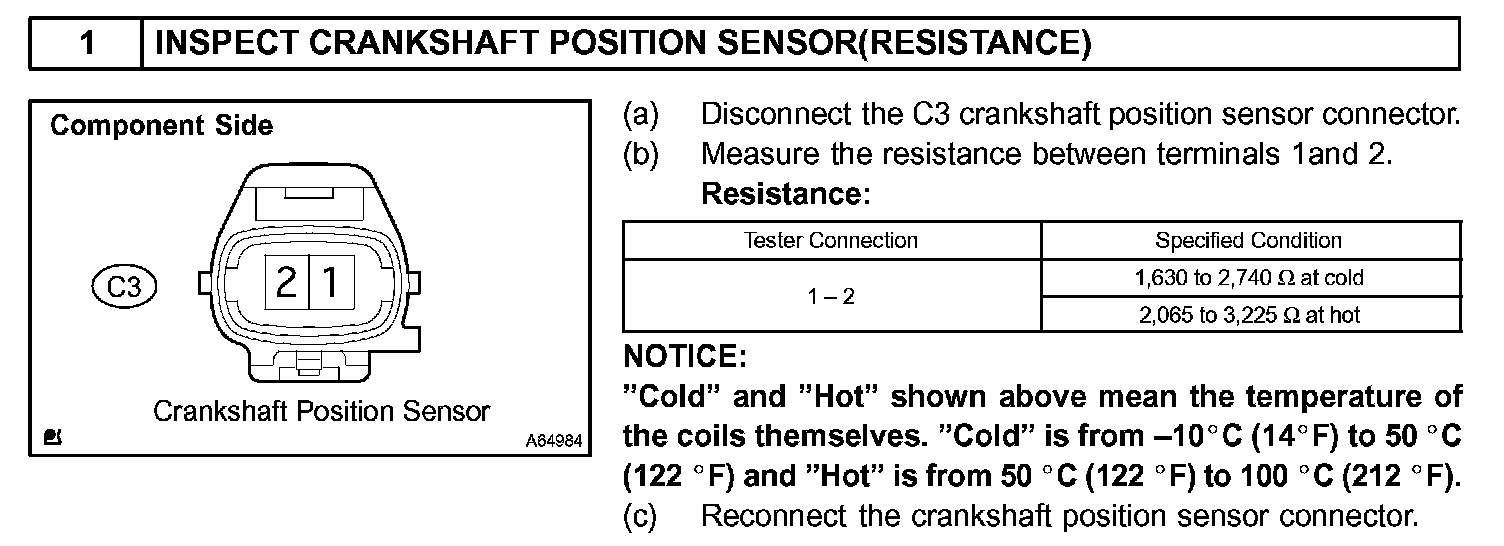

INSPECTION PROCEDURE

HINT:
- Perform the troubleshooting of DTC P0335 first. If no trouble is found, troubleshoot the engine mechanical systems.
- Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.
