Home >> Lexus Truck >> 2004 >> RX 330 AWD V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Diagrams >> Components >> Position of Parts In Body

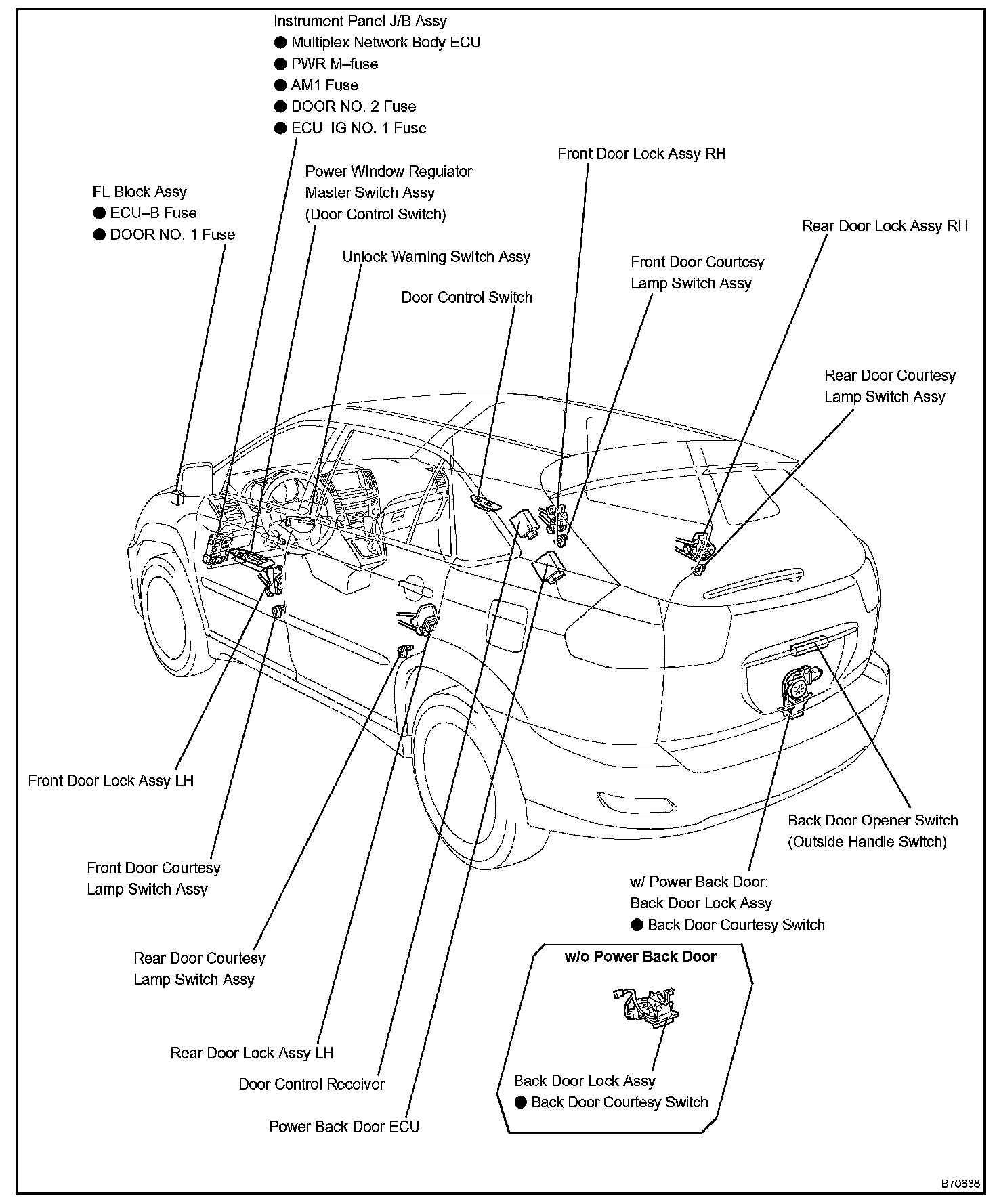

Position of Parts In Body

Ba - Hi:



Combination Meter:



Power Door Lock Control System:
