Home >> Lexus Truck >> 2004 >> RX 330 AWD V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Water Pump

Water Pump

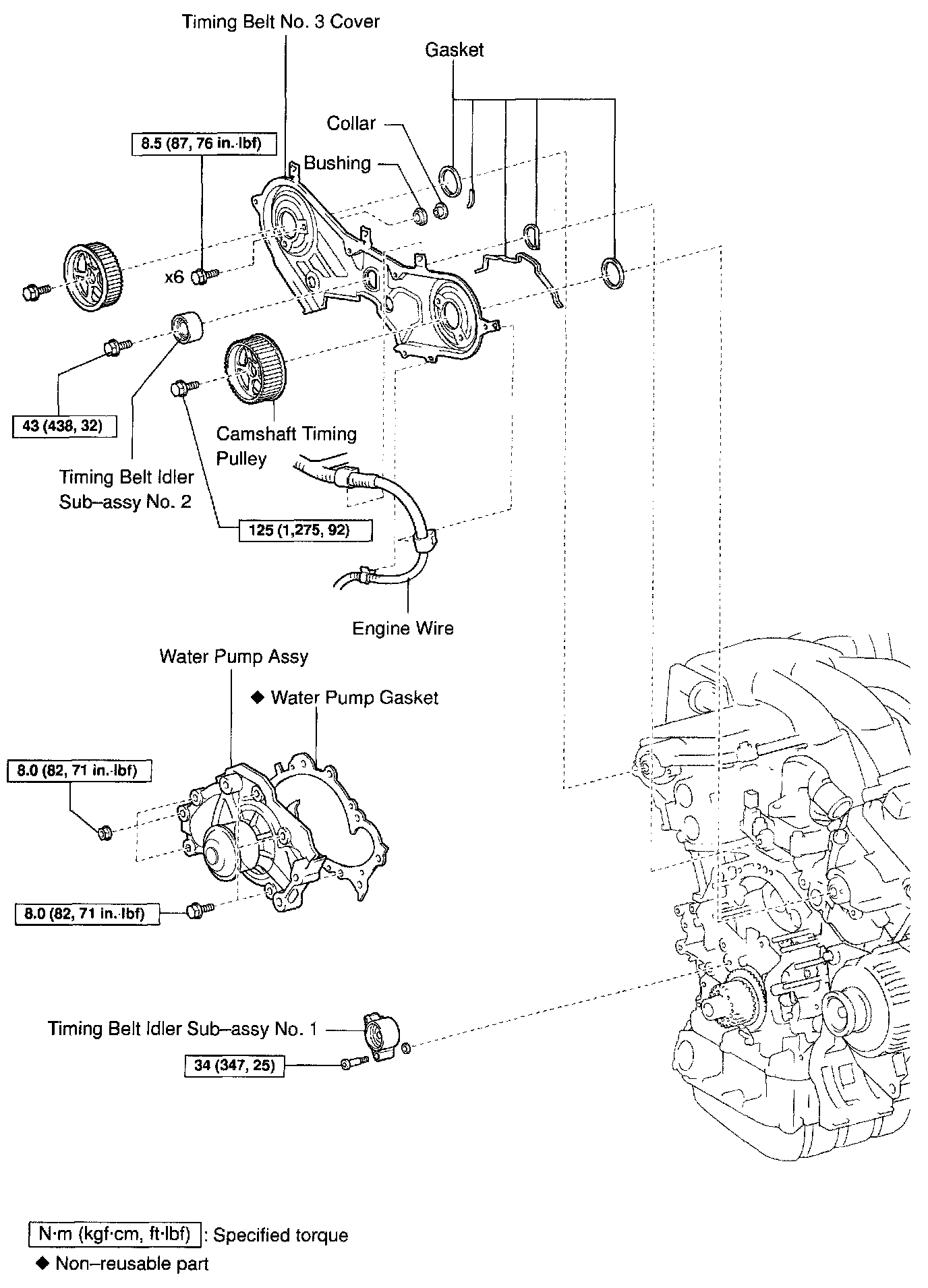

WATER PUMP ASSY REPLACEMENT W/ RELATED COMPONENTS
