ABS Light: Testing and Inspection
ABS WARNING LIGHT CIRCUIT (REMAINS ON)

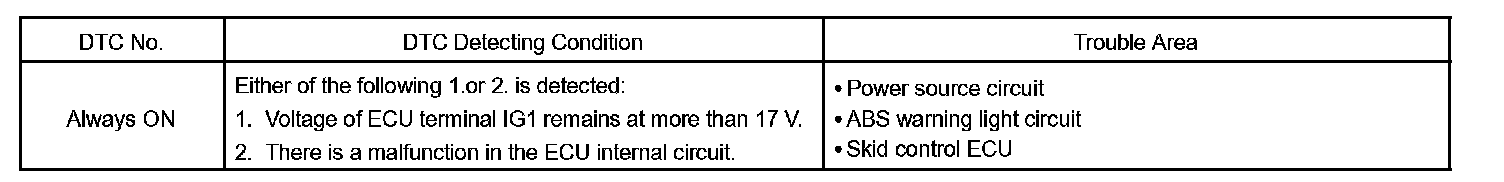

DTC Detecting Condition:
CIRCUIT DESCRIPTION

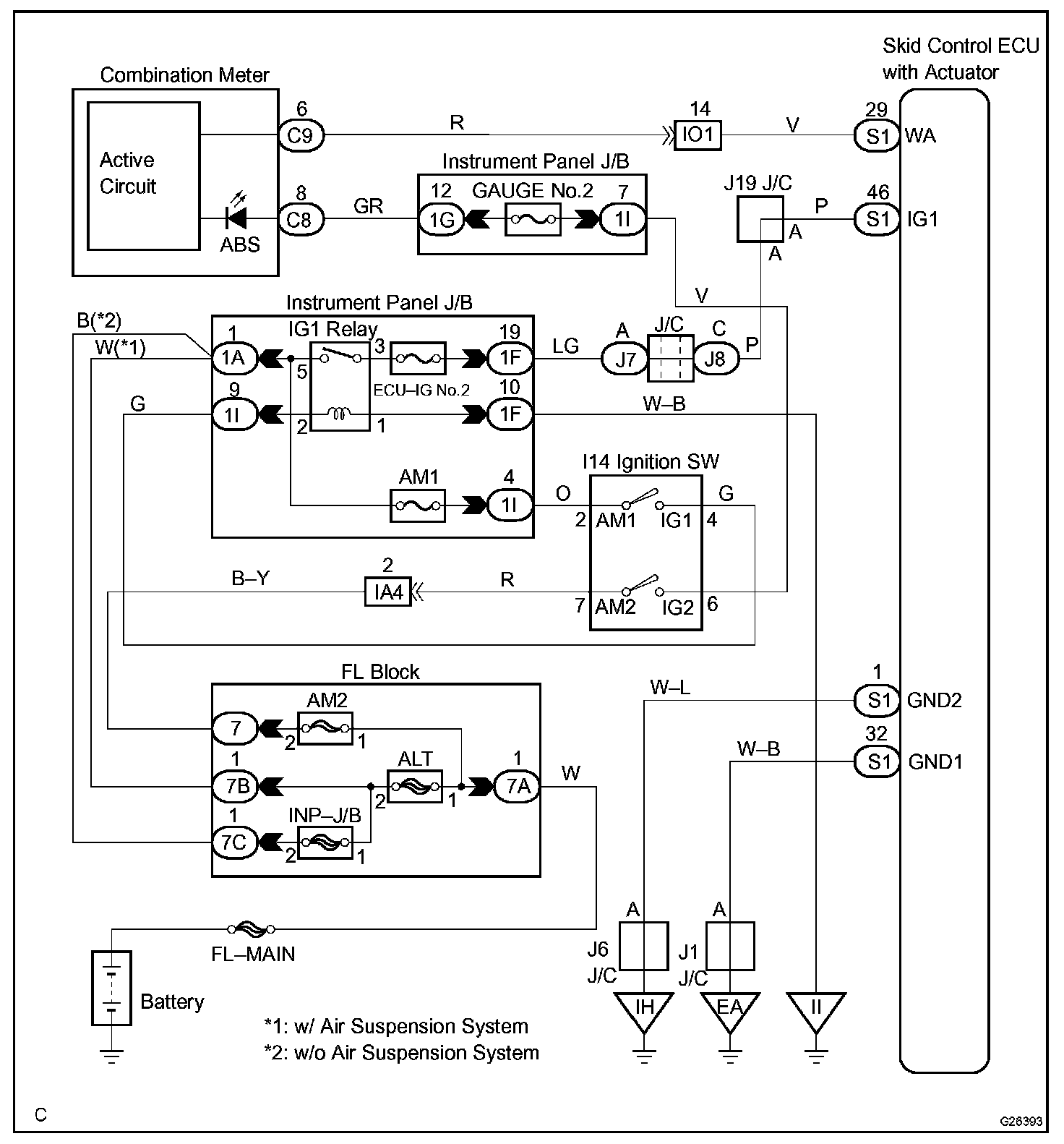

Wiring Diagram:

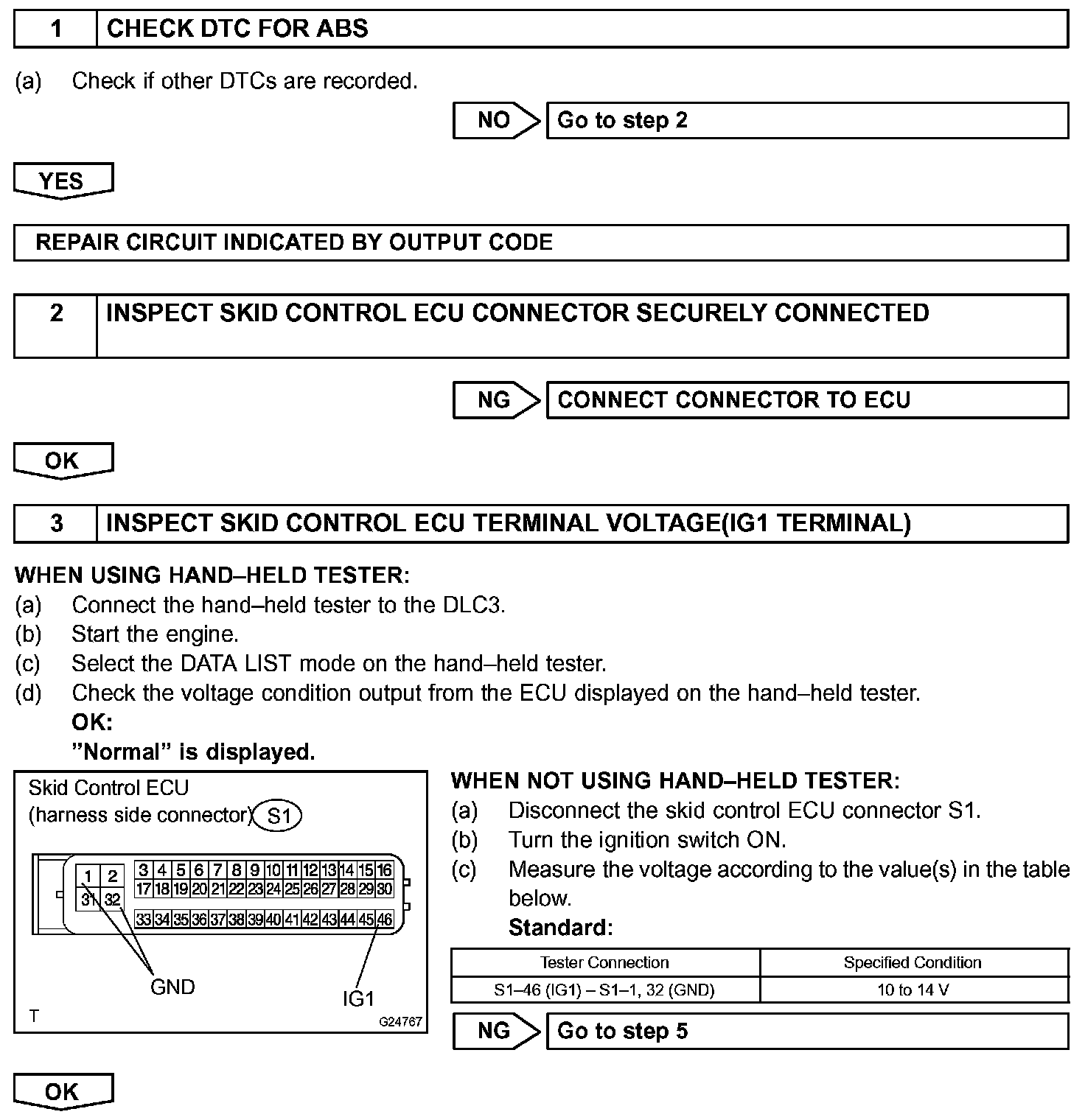

Step 1 - 3:

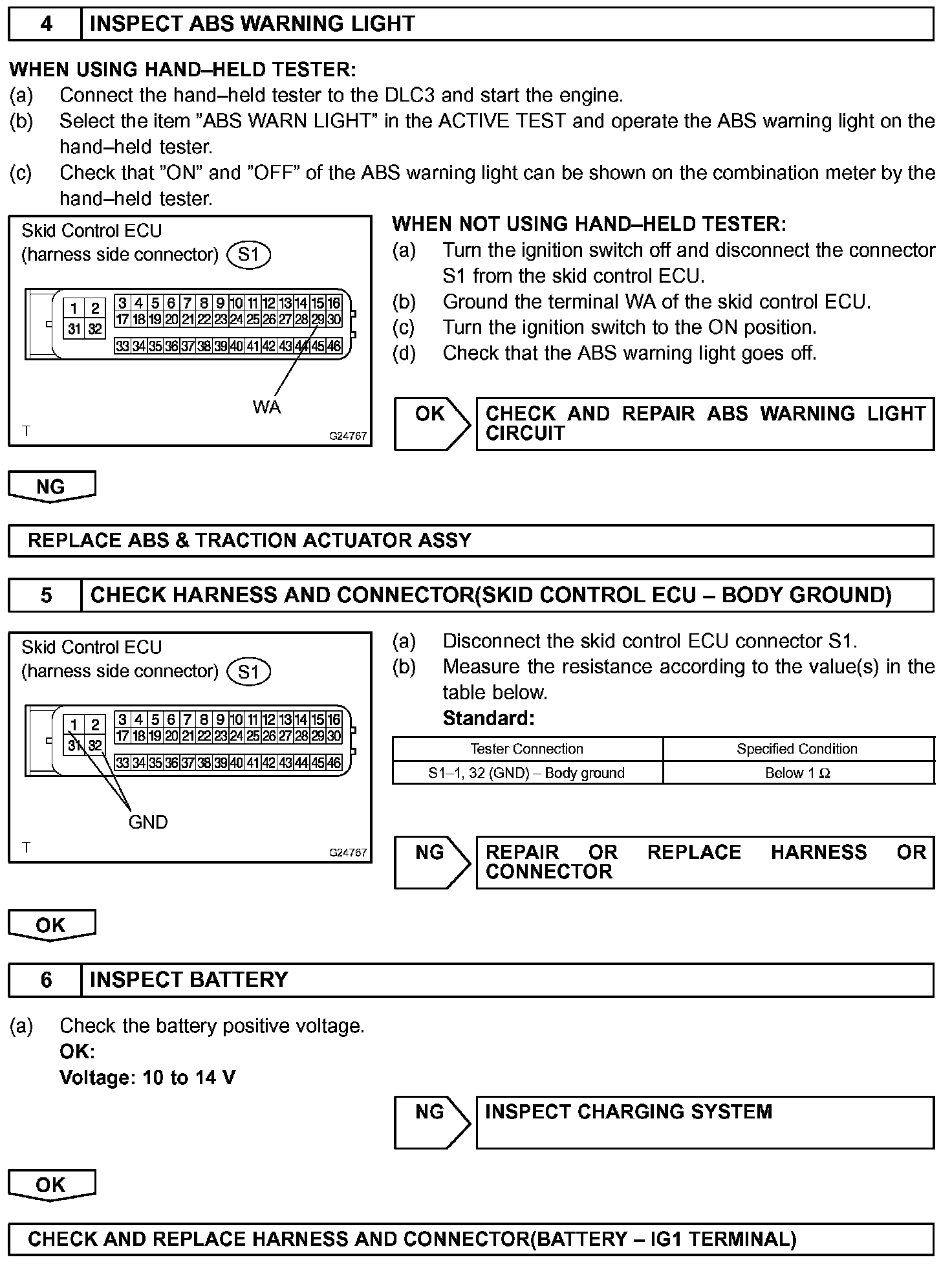

Step 4 - 6:
INSPECTION PROCEDURE
