Instrument Cluster / Carrier: Service and Repair

COMBINATION METER ASSY

OVERHAUL

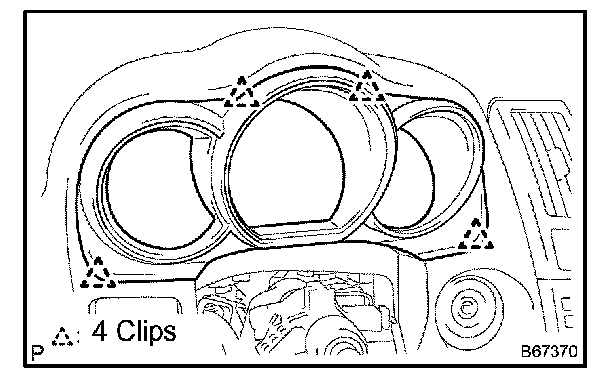

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY
a. Disengage the 4 clips and remove the instrument cluster finish panel sub-assy.

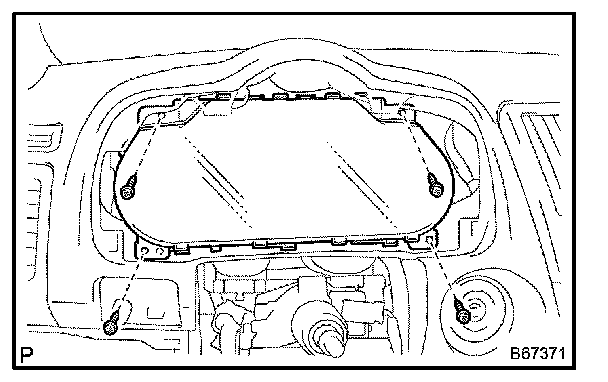

2. REMOVE COMBINATION METER ASSY
a. Remove the 4 screws.
b. Pull out the combination meter assy, then disconnect the connectors.

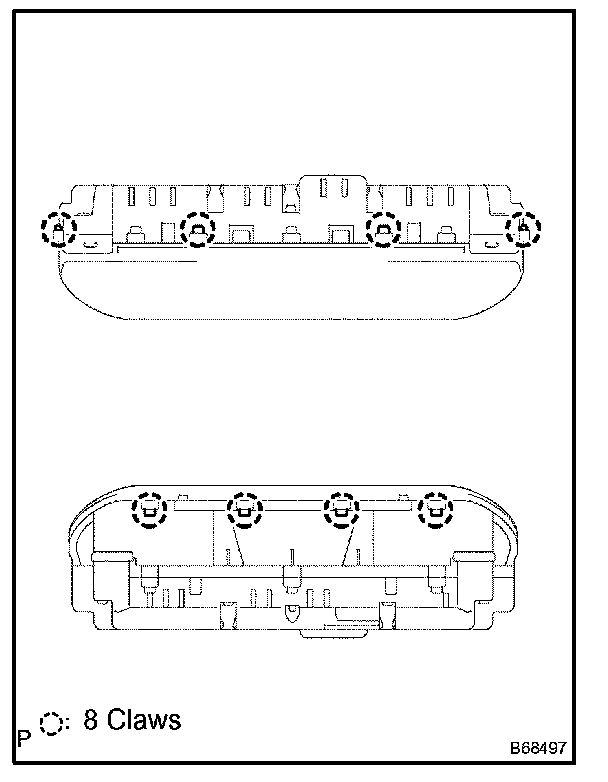

3. REMOVE COMBINATION METER GLASS
a. Disengage the 8 claws and remove the combination meter glass.
