Pinout Values and Diagnostic Parameters

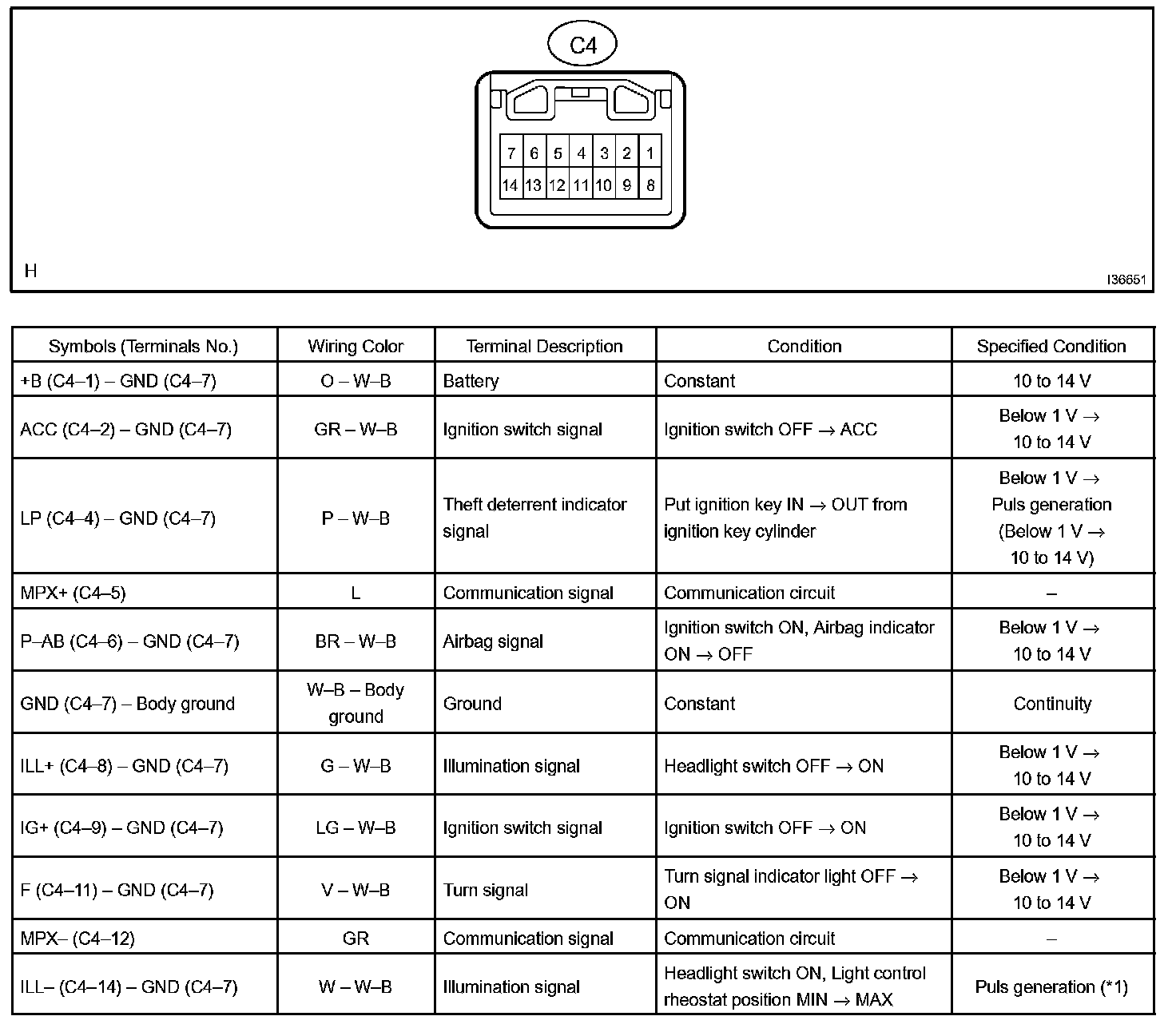

Terminals Of ECU/Pinouts - Combination Meter Assy Part 1:

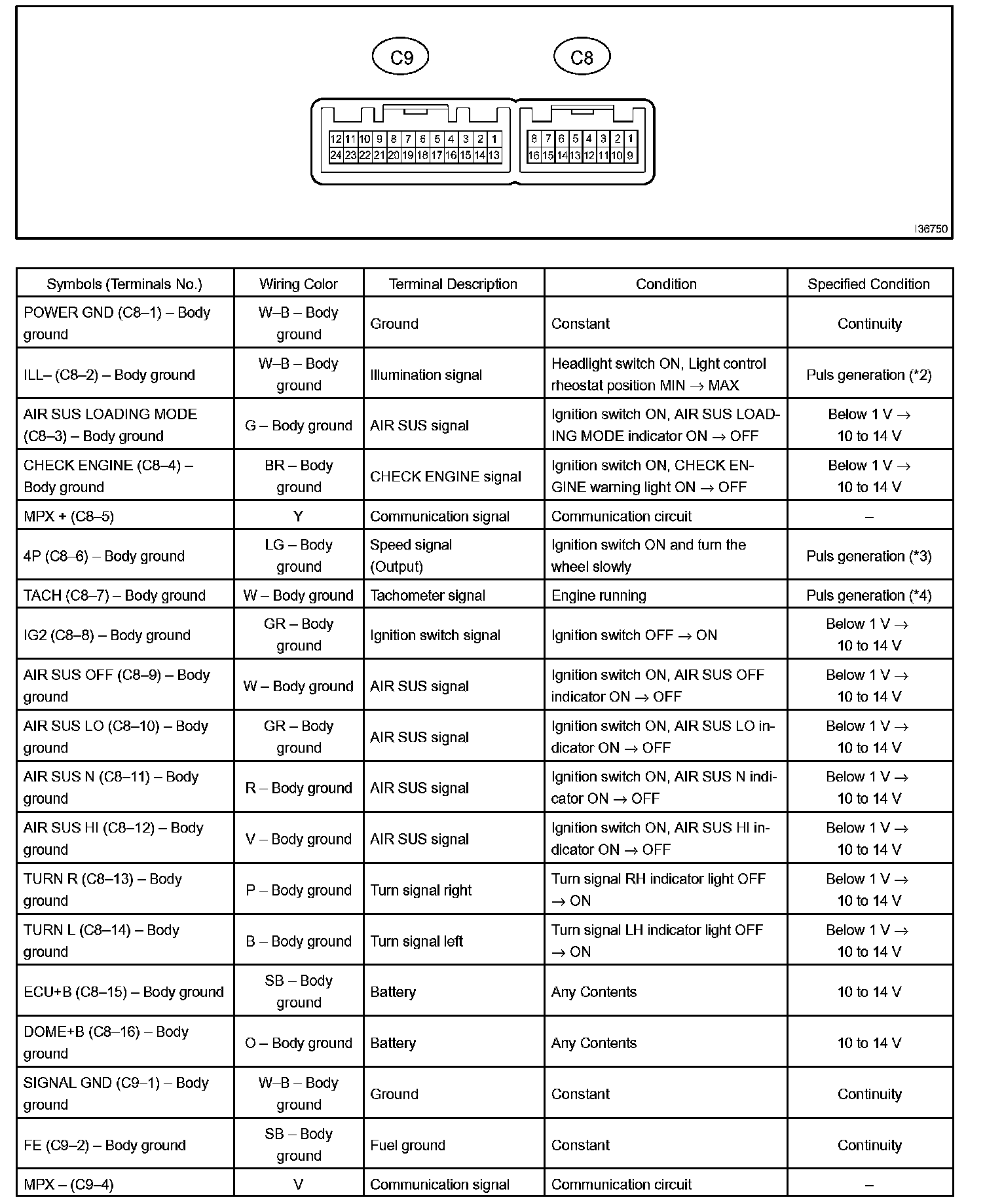

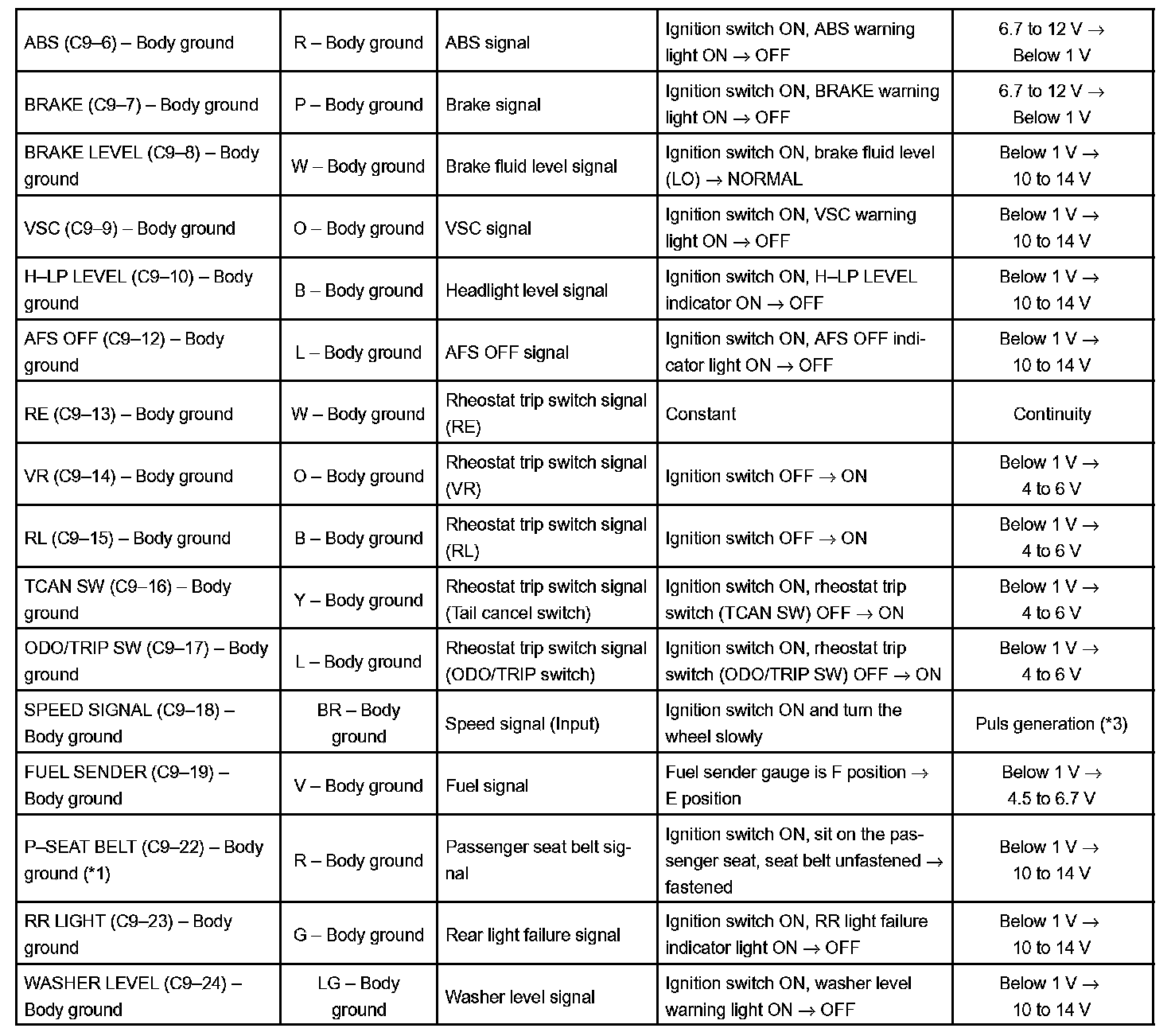

Terminals Of ECU/Pinouts - Combination Meter Assy Part 2:

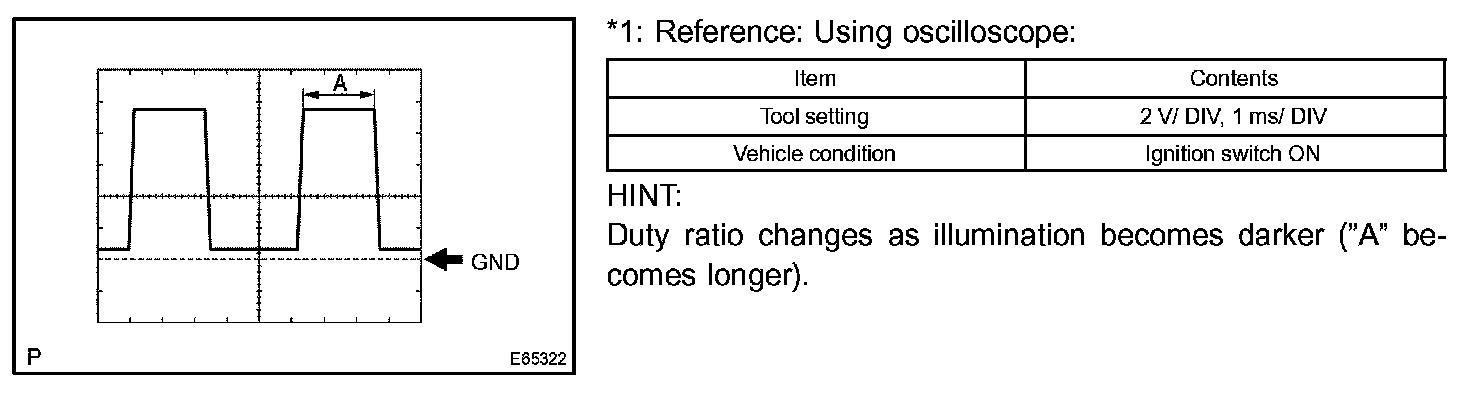

Oscilloscope Waveforms:



Terminals Of ECU/Pinouts - Multi-display (w/o Navigation):



Oscilloscope Waveforms:
