Courtesy Lamp: Testing and Inspection

FRONT DOOR COURTESY LAMP SWITCH ASSY

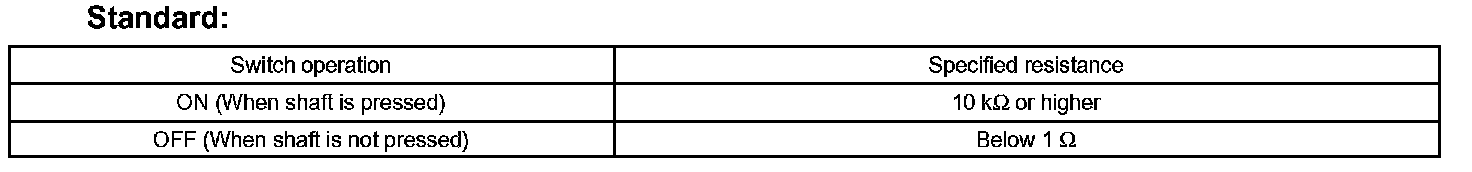

a. Measure the resistance according to the value(s) in the table.




REAR DOOR COURTESY LAMP SWITCH ASSY
a. Measure the resistance according to the value(s) in the table.







ROOM LAMP ASSY NO.1

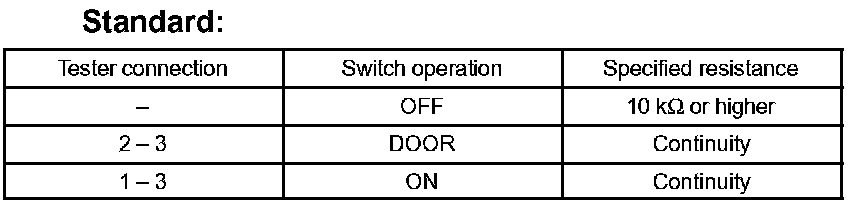

a. Measure the resistance according to the value(s) in the table.




ROOM LAMP ASSY NO.2

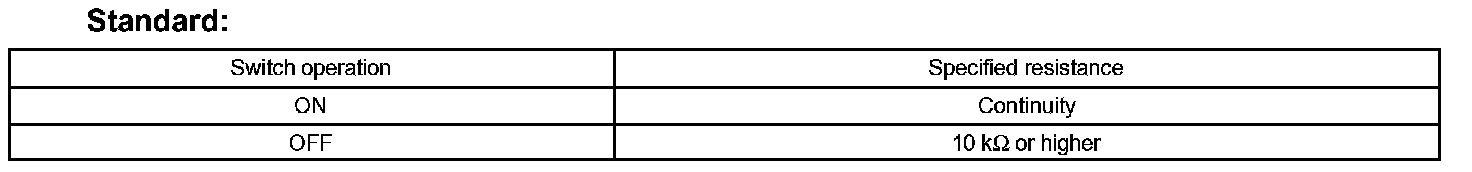

a. Measure the resistance according to the value(s) in the table.
