Door Switch: Testing and Inspection

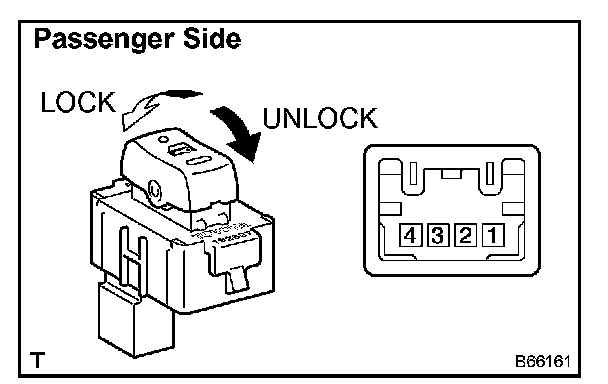

INSPECT DOOR CONTROL SWITCH ASSY

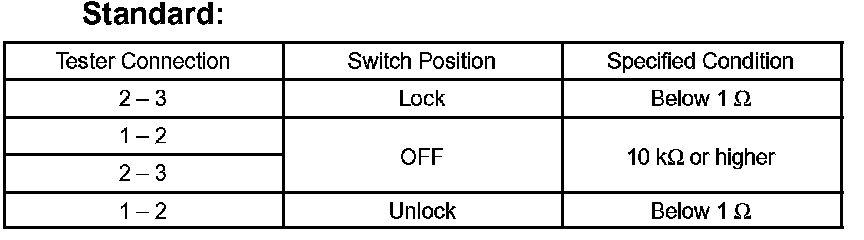

a. Check the resistance of the door control switch.
If the result is not as specified, replace the switch.







b. Apply battery voltage to the door control switch and check that the switch illuminates.
If the result is not as specified, replace the switch.
