License Plate Lamp: Service and Repair

Back Door - Part 1:

LICENSE PLATE LAMP ASSY

OVERHAUL

HINT:
1. REMOVE BACK DOOR TRIM PANEL ASSY UPPER
2. REMOVE BACK DOOR TRIM PANEL ASSY
3. REMOVE BACK DOOR GARNISH OUTSIDE




4. REMOVE LICENSE PLATE LAMP ASSY

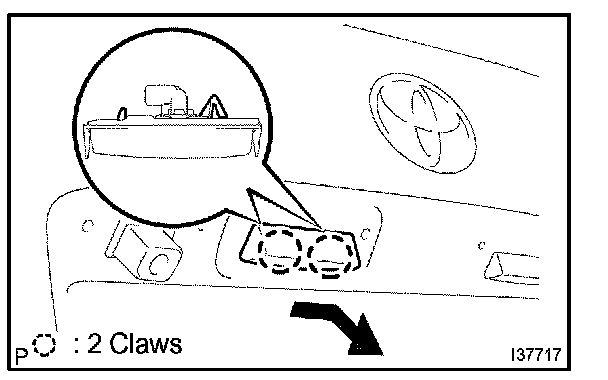

a. Release the 2 claw fittings and disconnect the license plate lamp assy as shown in the illustration.
b. Disconnect the connector and remove the license plate lamp assy.

5. REMOVE LICENSE PLATE LAMP BULB
a. Remove the license plate lamp bulb, the license plate lamp socket and wire.
b. Remove the license plate lamp bulb from the license plate lamp socket and wire.

6. REMOVE LICENSE PLATE LAMP SOCKET AND WIRE
7. REMOVE LICENSE PLATE LAMP LENS
