Fuse: Locations

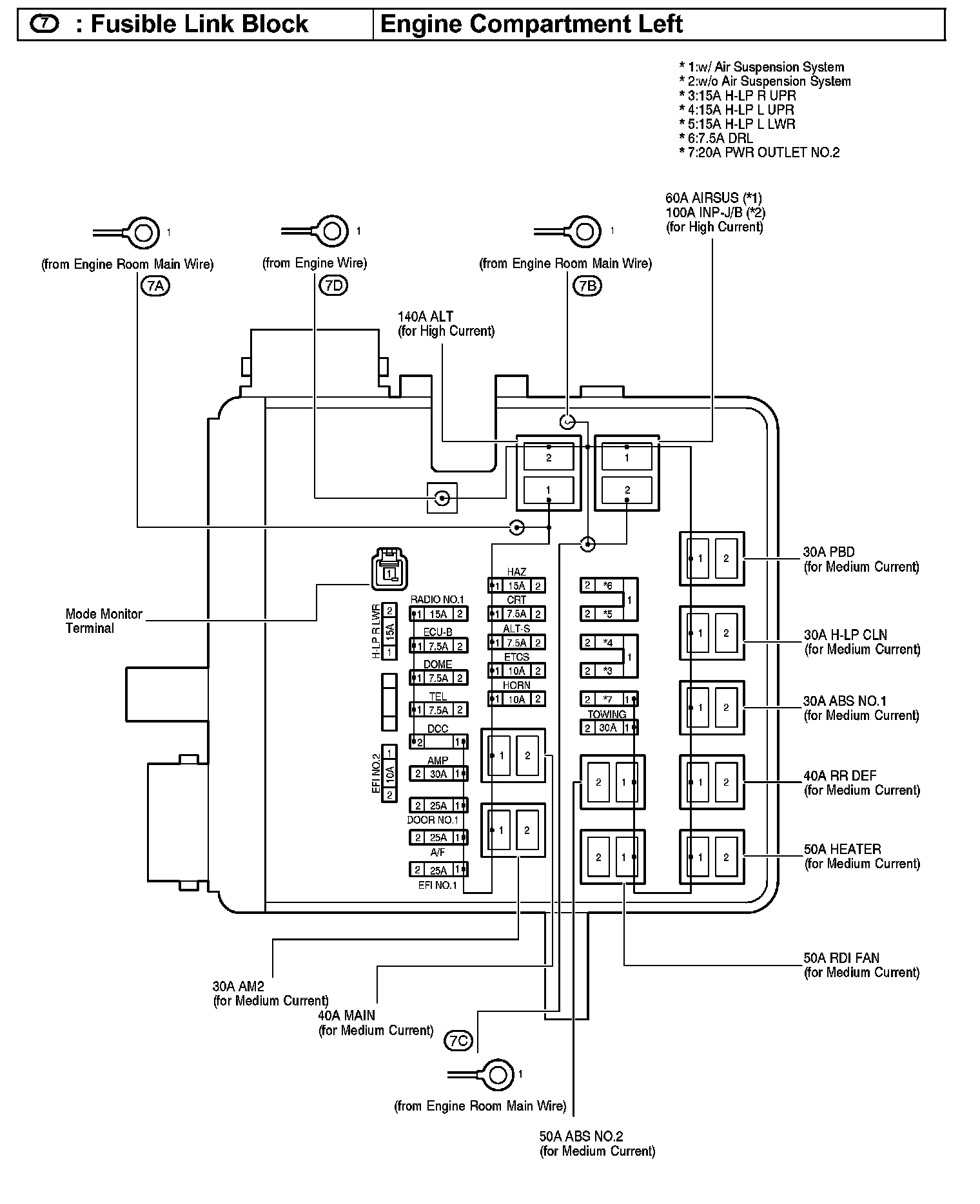

Fusible Link Block - Engine Compartment Left:

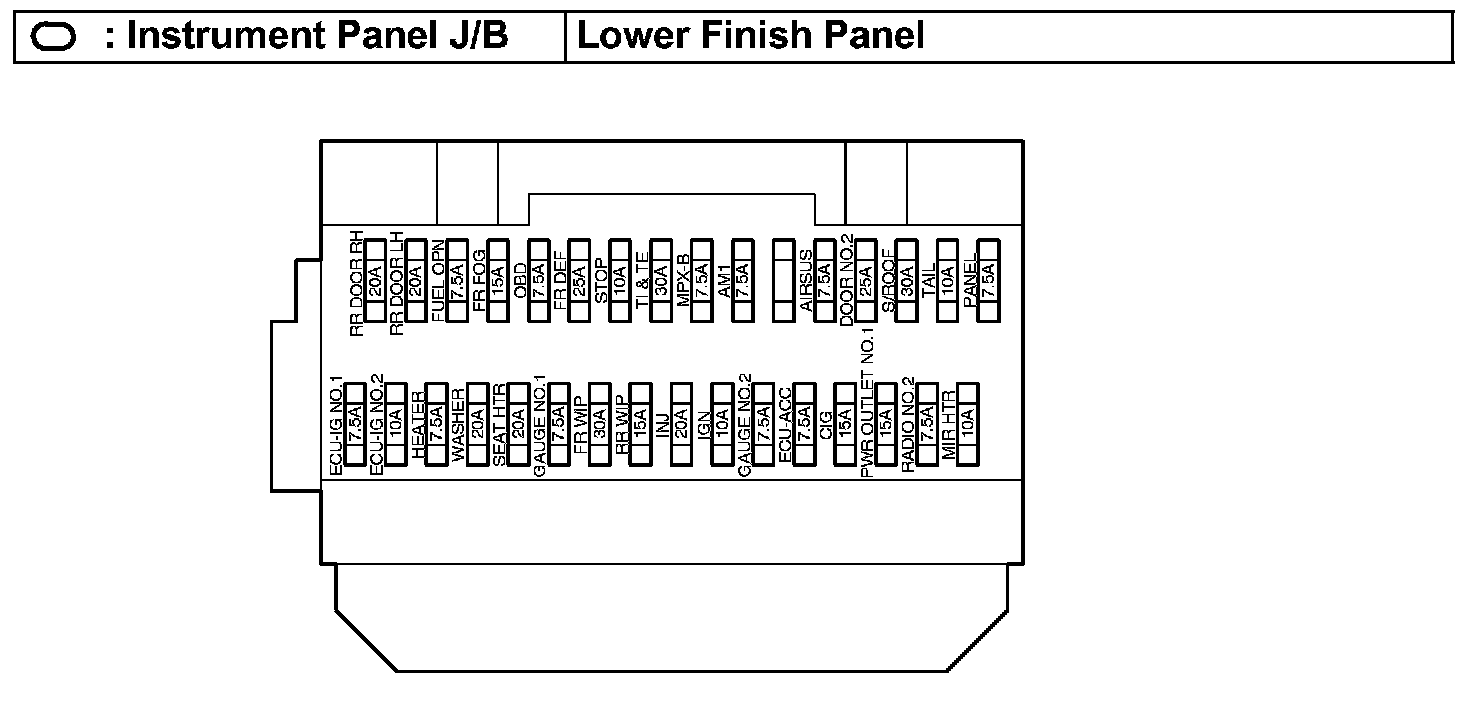

Instrument Panel J/B - Lower Finish Panel:
Instrument Panel J/B - Lower Finish Panel:
