Multiple Junction Connector: Diagrams

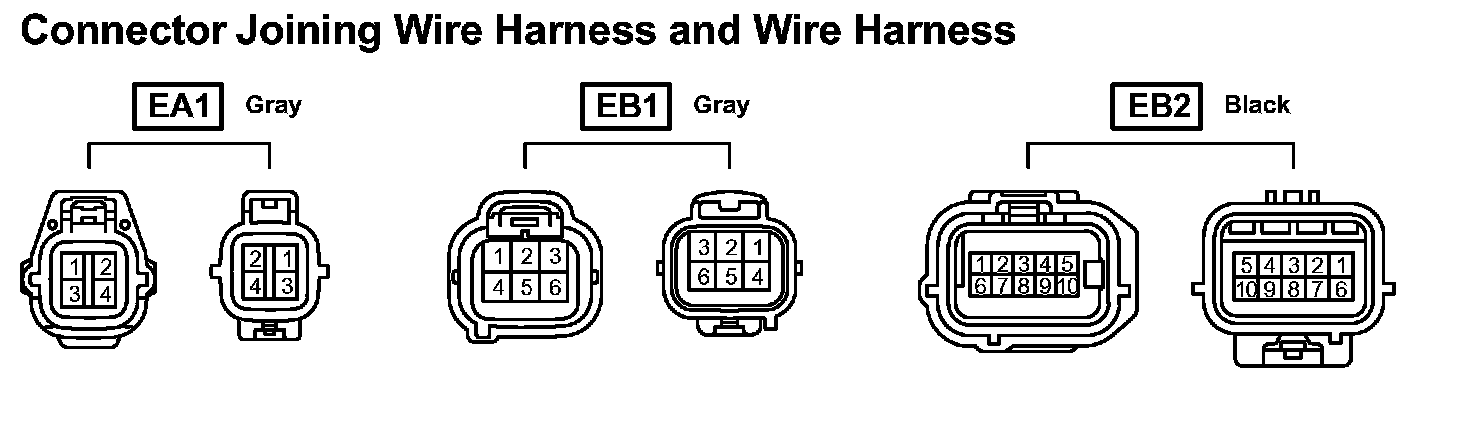

EA1 - EB2:

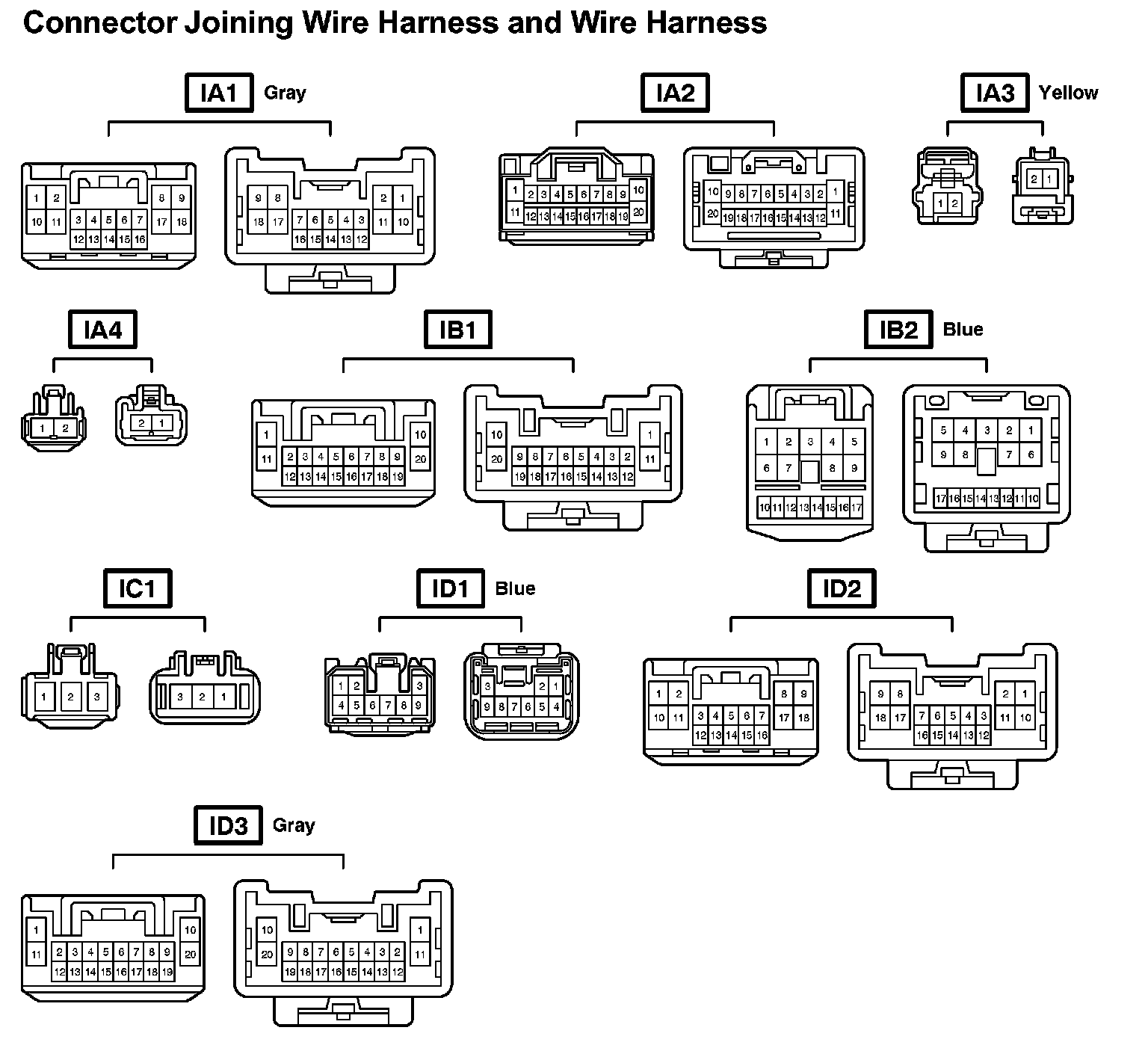

IA1 - ID3:




IE1 - II1:




IJ1 - IO3:

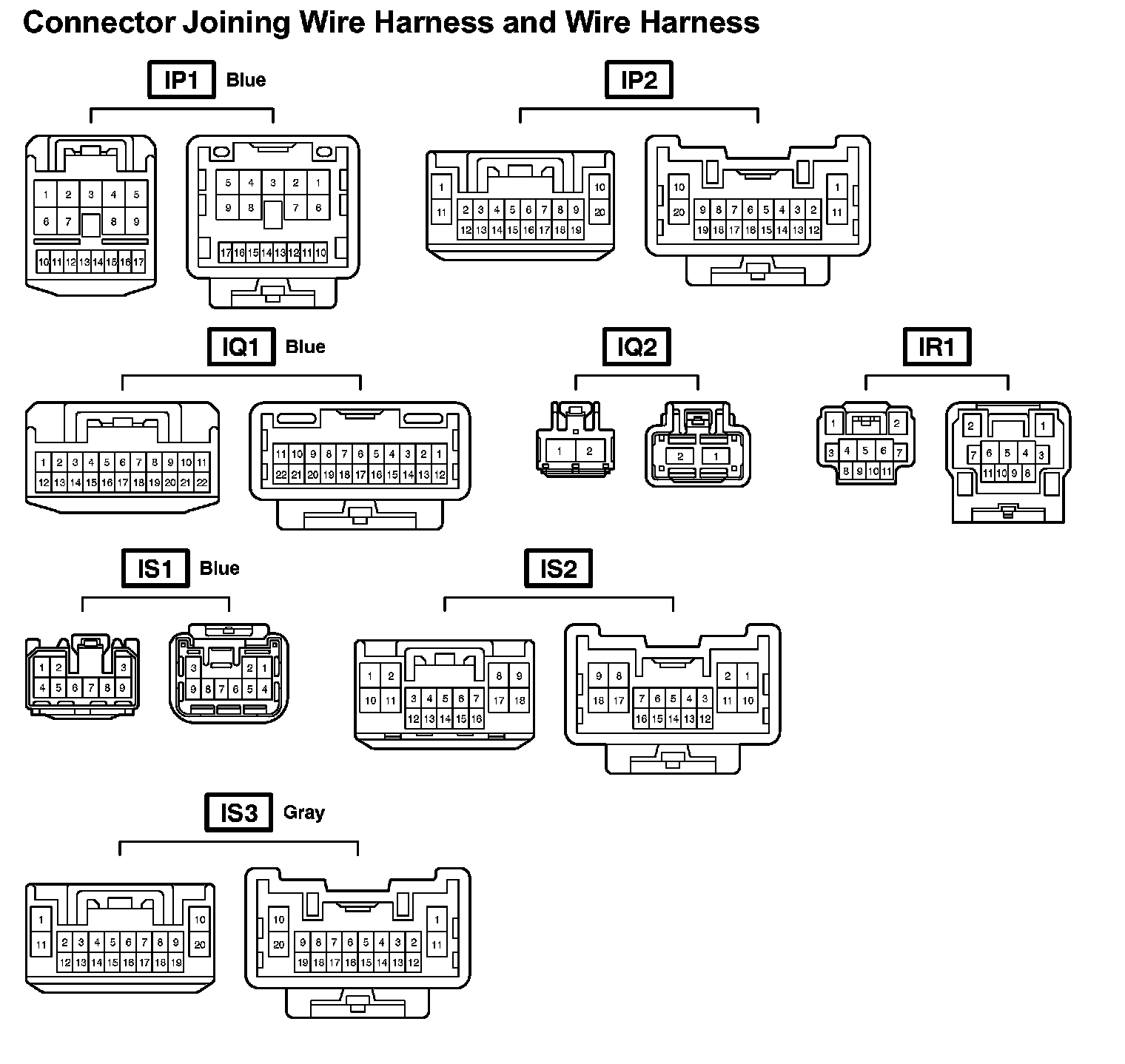

IP1 - IS3:

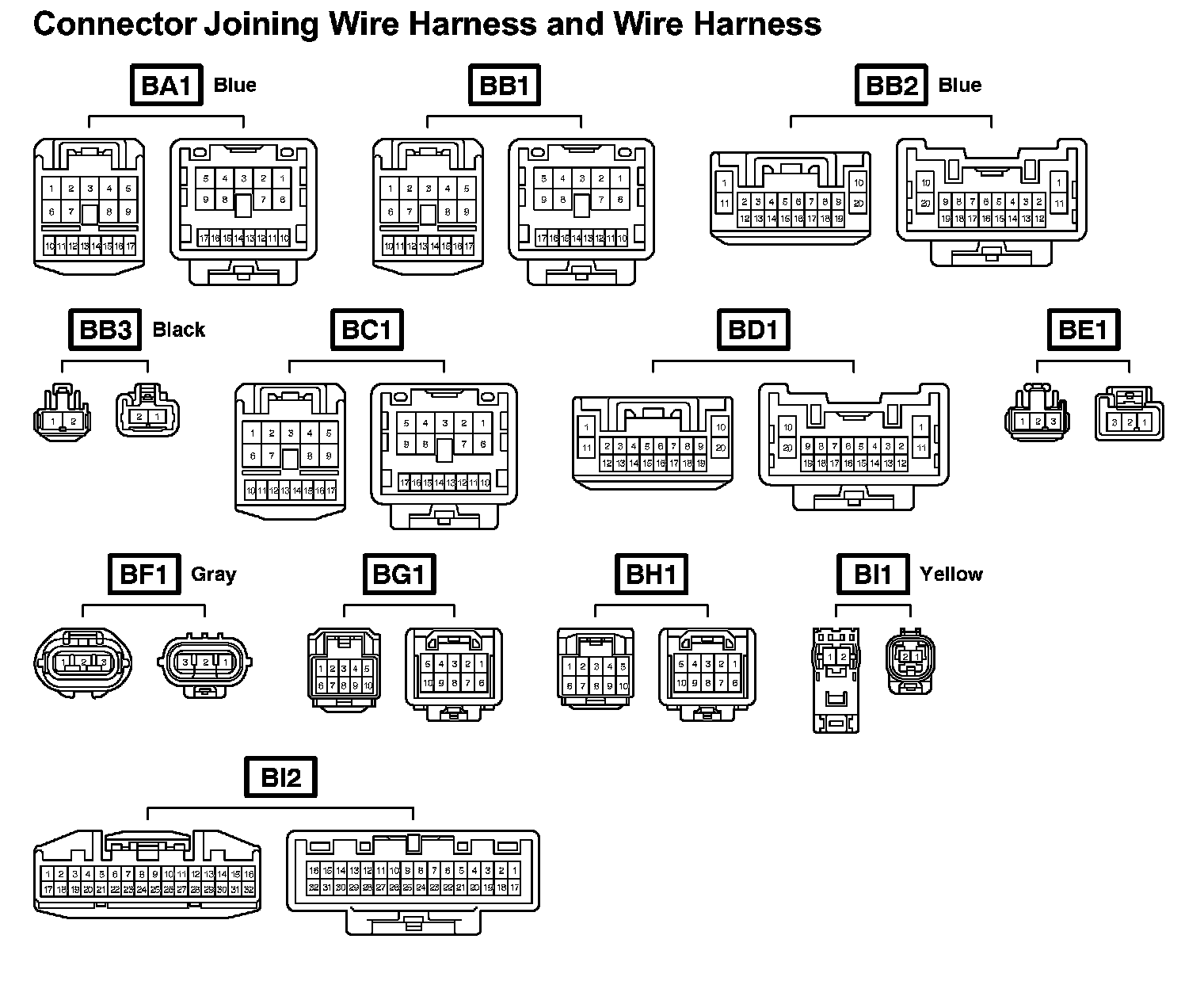

BA1 - BI2:

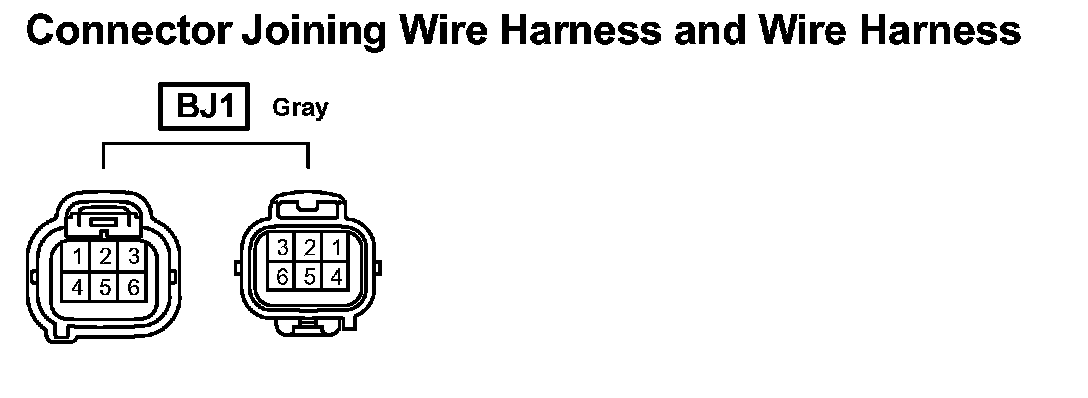

BJ1:
