Brakes - Poor Cold Start Brake Pedal Feel

BRAKES
BR005-04

Title:
BRAKE BOOSTER

Models:
'04 RX 330 (NAP)

September 17, 2004

Introduction
To improve the overall brake pedal feeling during cold starts, the brake booster assembly has been changed.

Applicable Vehicles
^ 2004 model year RX 330 (NAP) vehicles produced BEFORE the Production Change Effective VINs shown below.

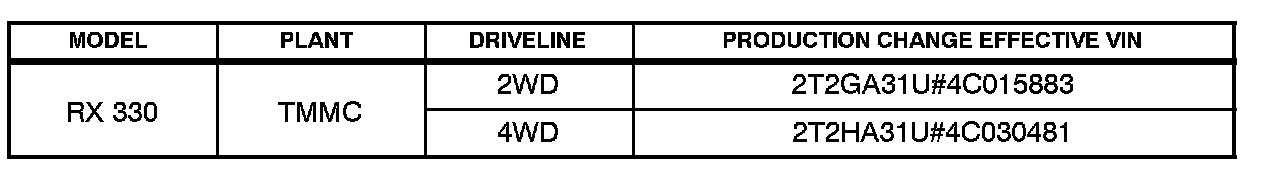

Production Change Information





Parts Information

Repair Procedure

1. Remove and replace the brake booster following the procedures outlined in the Technical Information System (TIS), 2004 model year RX 330 Repair Manual: Brake: Brake Booster Assy

2. Road test the vehicle to confirm repair.

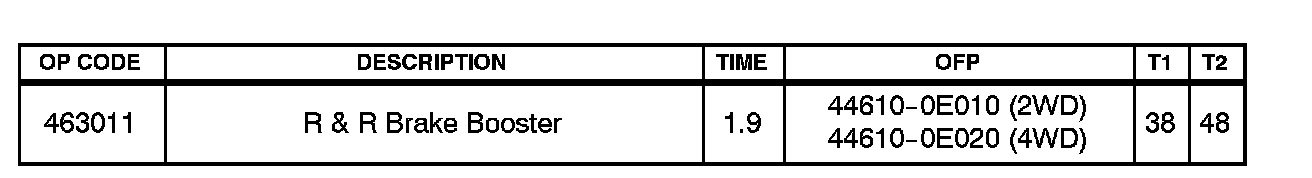

Warranty Information

Applicable Warranty*:

This repair is covered under the Lexus Comprehensive Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.
