Canada - Accessories - No Picture, Backup Camera
BulletinTSB2104R
Issue Date
April 18, 2005
Title
NO PICTURE DISPLAYED FROM BACKUP CAMERA
Component
BODY ELECTRICAL
Models
'04 GX 470, LS 430, LX 470, & RX 330
TSB REVISION NOTICE:
- December 01, 2005: OPN has been changed under Warranty Information.
The previous TSB should be discarded.
INTRODUCTION:
Some customers may experience a blank screen when shifting into reverse on vehicles equipped with the Lexus Navigation System and Backup Camera. An improved camera has been developed to remedy this condition.
APPLICABLE VEHICLES:
- 2004 model year GX 470, LS 430, LX 470 and RX 330 vehicles equipped with the Lexus Navigation System produced BEFORE the Production Change Effective VINs shown below.

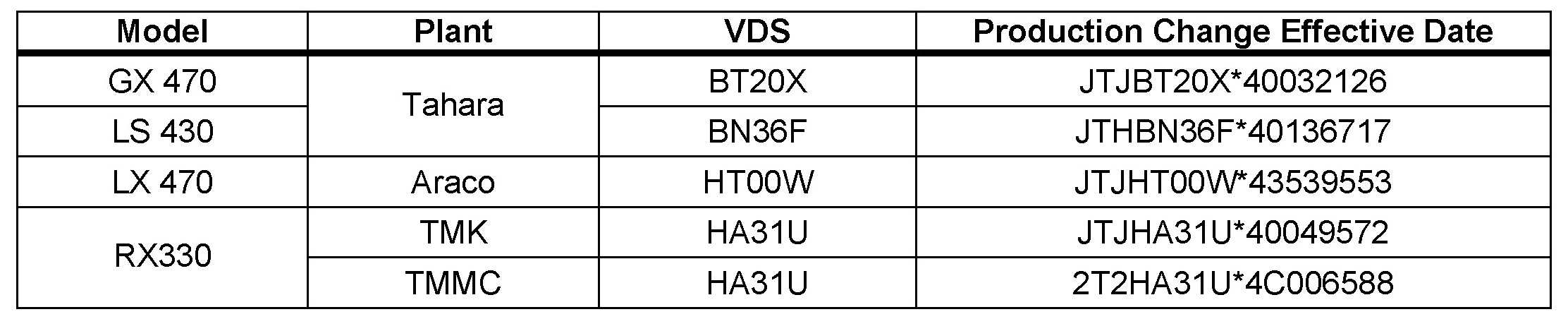

PRODUCTION CHANGE INFORMATION:

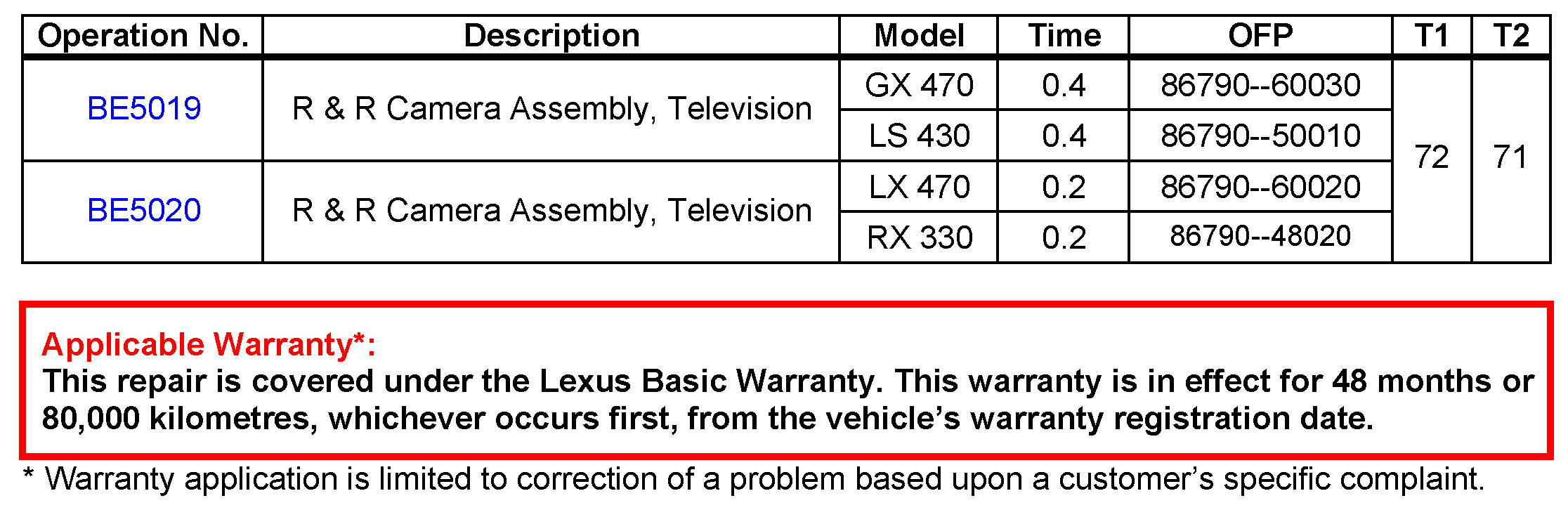

WARRANTY INFORMATION:

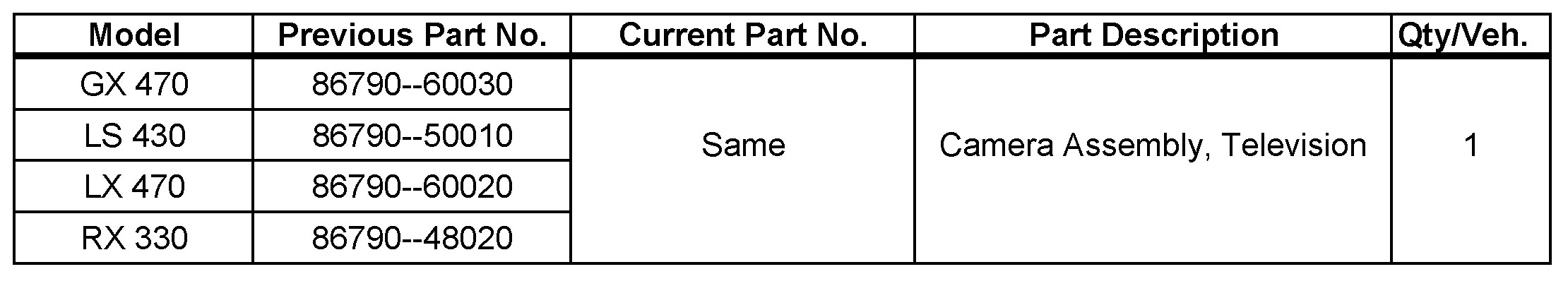

PARTS INFORMATION:
REPAIR PROCEDURE:
Replace the backup camera. Refer to ETAS: 2004 model year applicable vehicle Repair Manual: Audio & Visual System: Television Camera Assy: Replacement.
NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
