Canada - Body - Rood Rack Cross Bar Release Lever

Bulletin
0644

Publication Date
2004-01-30

Market
Canada

Reference
BC-03-011

Model
RX330

Year Range
2004

Component
BC

Subject:
ROOF RACK CROSS BAR RELEASE LEVER IMPROVEMENT







Some customers may not be able to adjust the position of their roof rack cross bars on the 2004 model year RX 330 vehicles. The release lever has been changed to a more robust design. Please replace with the updated part number below to correct this condition.

APPLICABLE VEHICLES:
- 2004 model year RX330 vehicles.

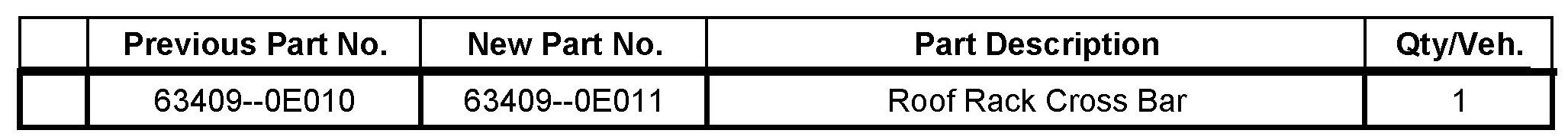

PARTS INFORMATION:

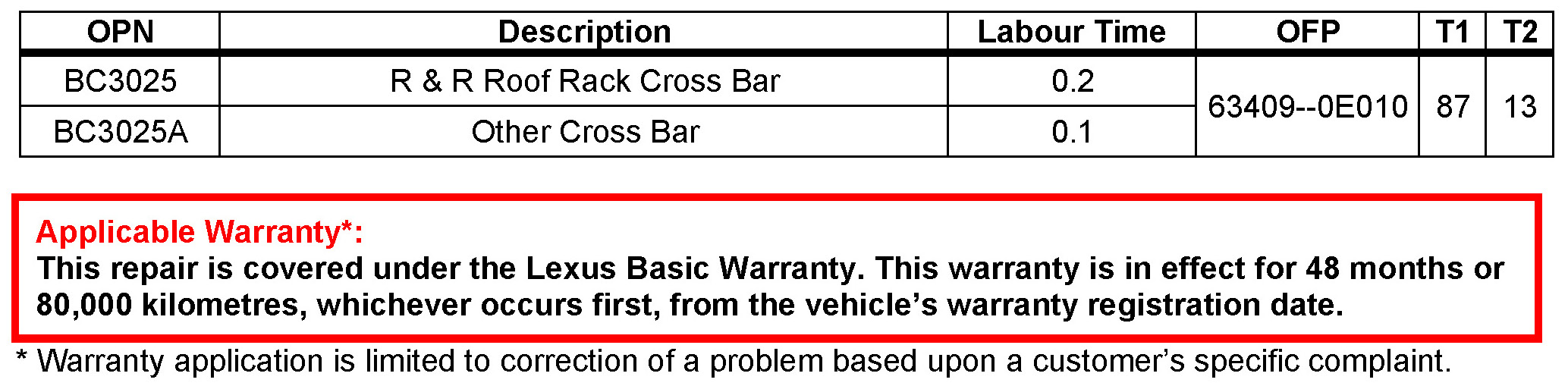

WARRANTY INFORMATION:

REPAIR PROCEDURES:

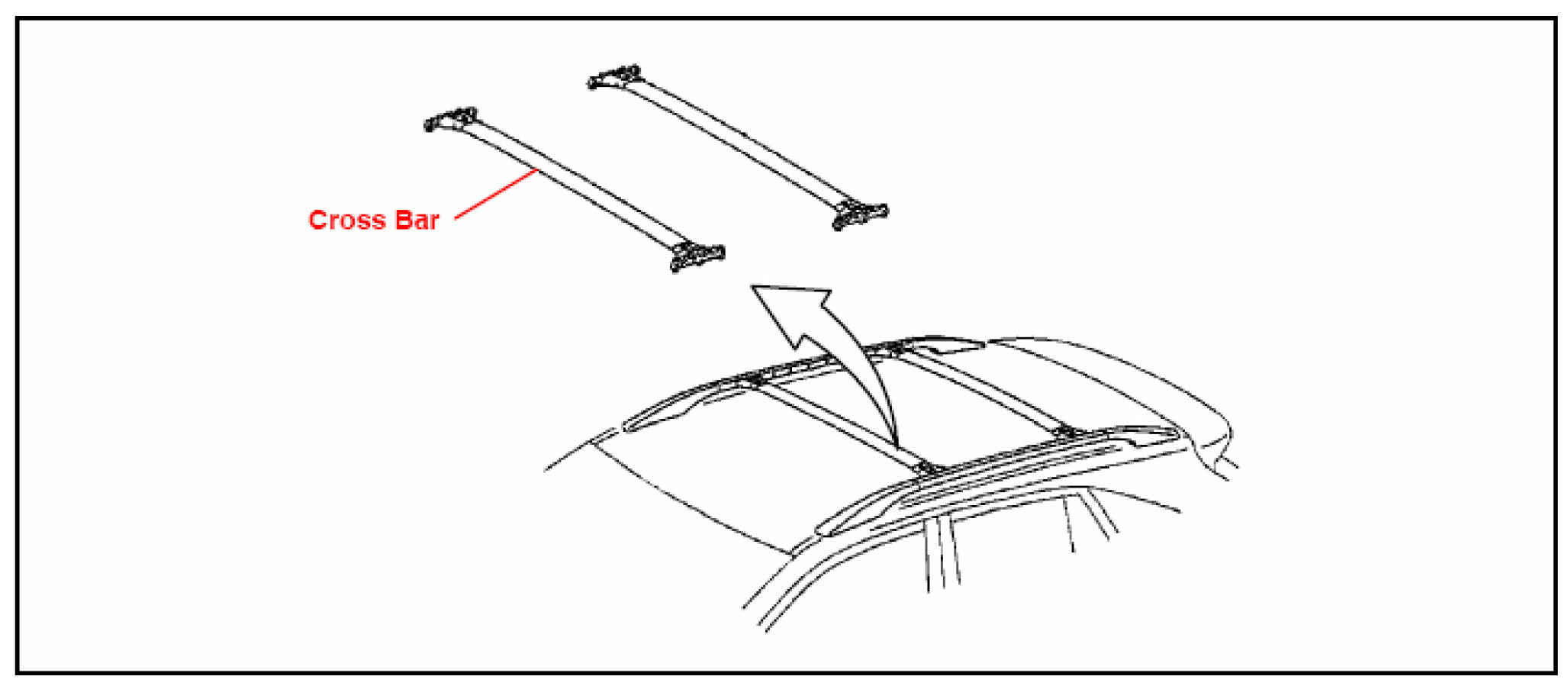

- Grab from the sides and lift up from the center to remove the rear roof rack end caps. Unscrew and remove the retaining screw on each rail.
- Remove the affected roof rack through the back of the rails.
- Install the new cross bars facing the correct direction and reassemble end caps.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
