Canada - Brakes - Front Brake, Vibration

Bulletin
TSB2002

Issue Date
August 16, 2004

Market
Canada

Title
FRONT BRAKE VIBRATION

Component
BRAKES

Models
'04 RX 330

Some customers may experience front brake vibration on 2004 model year RX 330 vehicles. New front brake rotors have been developed to improve this condition.

APPLICABLE VEHICLES:
- 2004 model year RX 330 vehicles produced BEFORE the Production Change Effective VIN shown below.

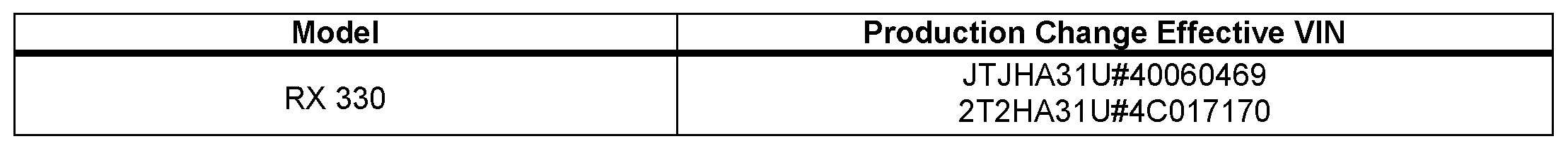

PRODUCTION CHANGE INFORMATION:

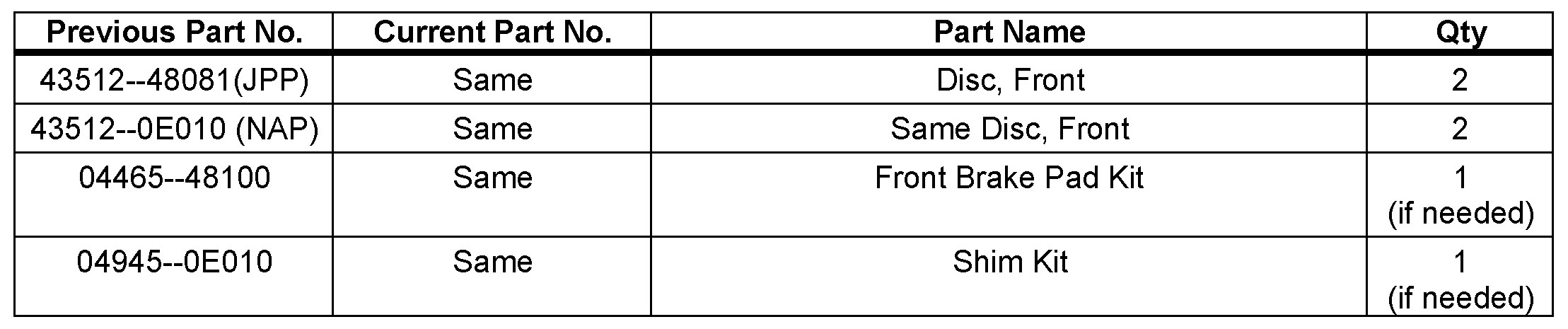

PARTS INFORMATION:

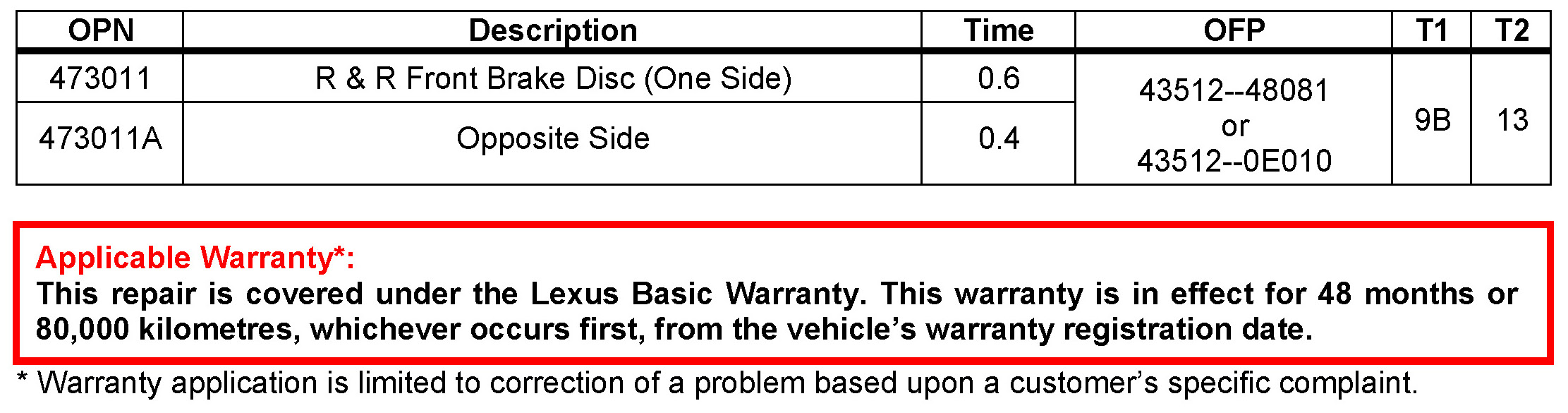

WARRANTY INFORMATION:

REPAIR PROCEDURE:
1. Confirm brake vibration is coming from front.
2. Inspect front brake pads and shims and replace if needed.
3. Refer to the ETAS to remove and replace the front brake rotors following the procedures outlined in the 2004 model year RX 330 Repair Manual: Section: Brake; Subsection: Front Brake; Overhaul.
4. Road test vehicle.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
