Canada - Interior - Glove Box, Rattle

Bulletin
0647

Publication Date
2004-01-30

Market
Canada

Reference
BC-03-012

Model
RX330

Year Range
2004

Component
BC

Subject:
GLOVE BOX RATTLE NOISE

Some customers may experience a rattle from the bracket of the glove box area. The following procedure has been developed to reduce the noise.

APPLICABLE VEHICLES:
- 2004 model year RX 330 vehicles.

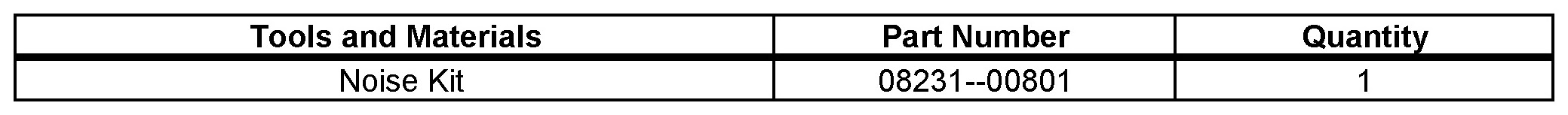

REQUIRED TOOLS & MATERIAL:

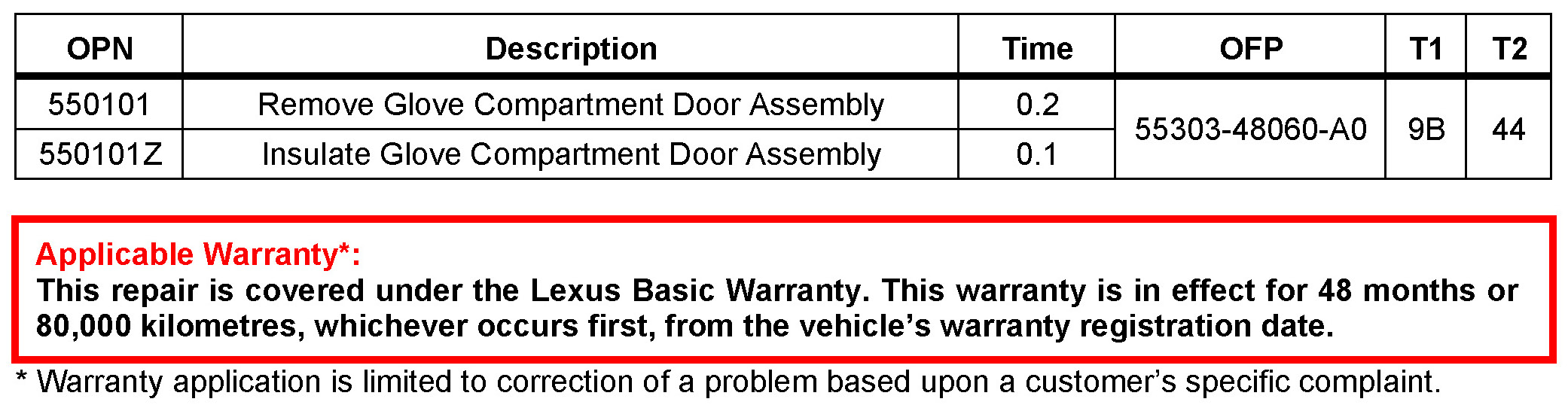

WARRANTY INFORMATION:

REPAIR PROCEDURE:

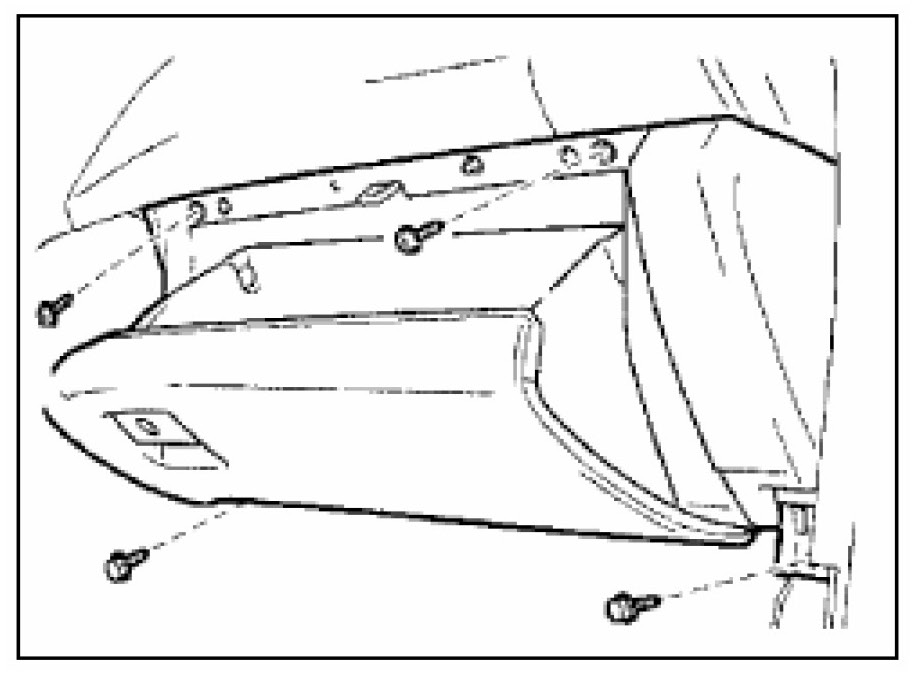

1. Remove the glove box. Refer to ETAS 2004 RX 330 Repair Manual;
Section: Instrument Panel/meter
SubSection: Instrument Panel Safety Pad Sub-assembly: Replacement

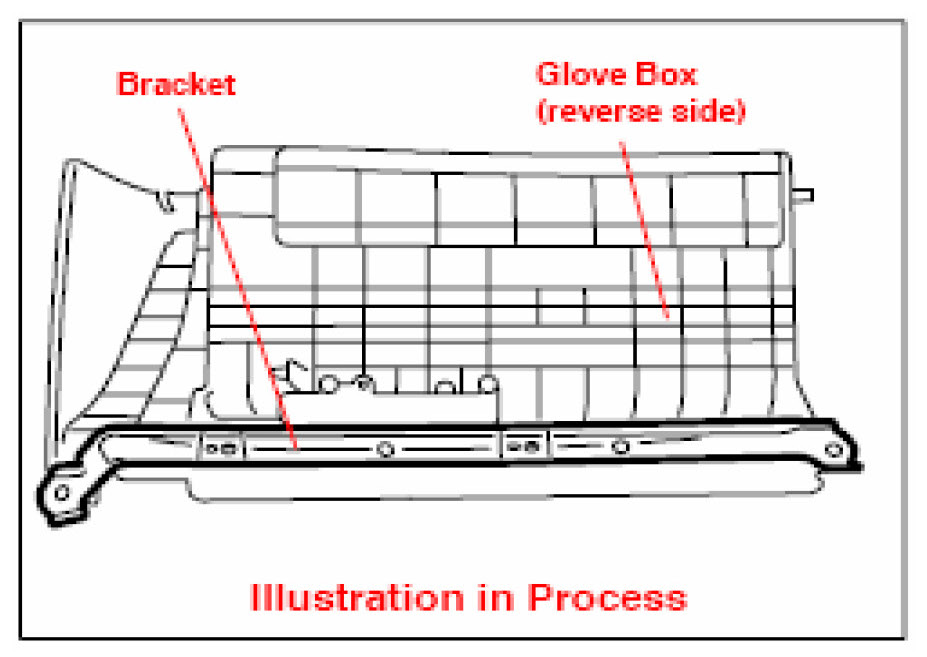

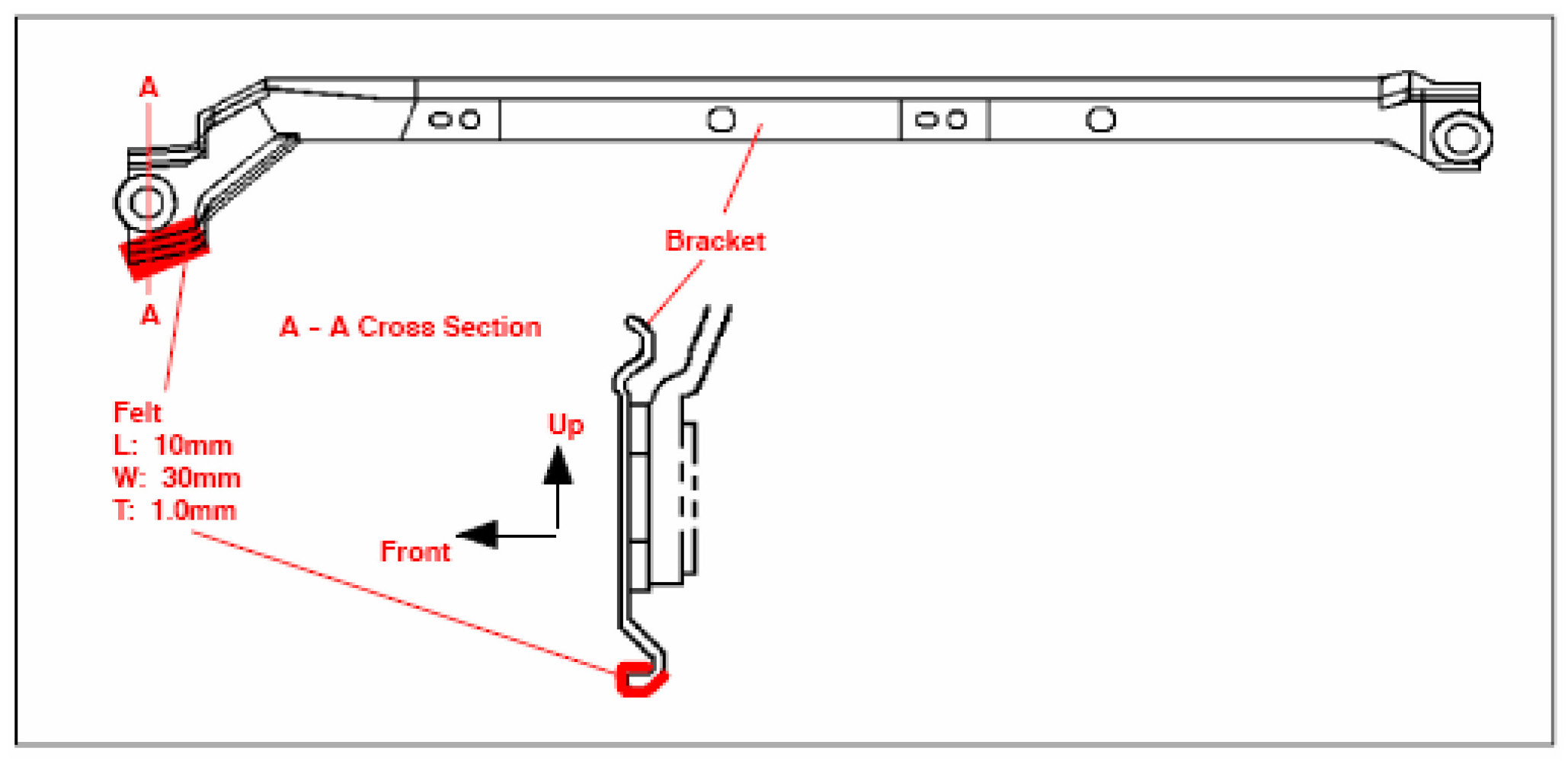

2. Fit a felt piece to the bracket of the glove box as shown.
3. Reinstall the glove box.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
