Canada - Suspension - Front Coil Springs Creak/Knock Noise

Bulletin
0661

Publication Date
2004-04-05

Market
Canada

Reference
FS-04-001

Model
RX330

Year Range
2004

Component
FS

Subject:
FRONT SUSPENSION NOISE

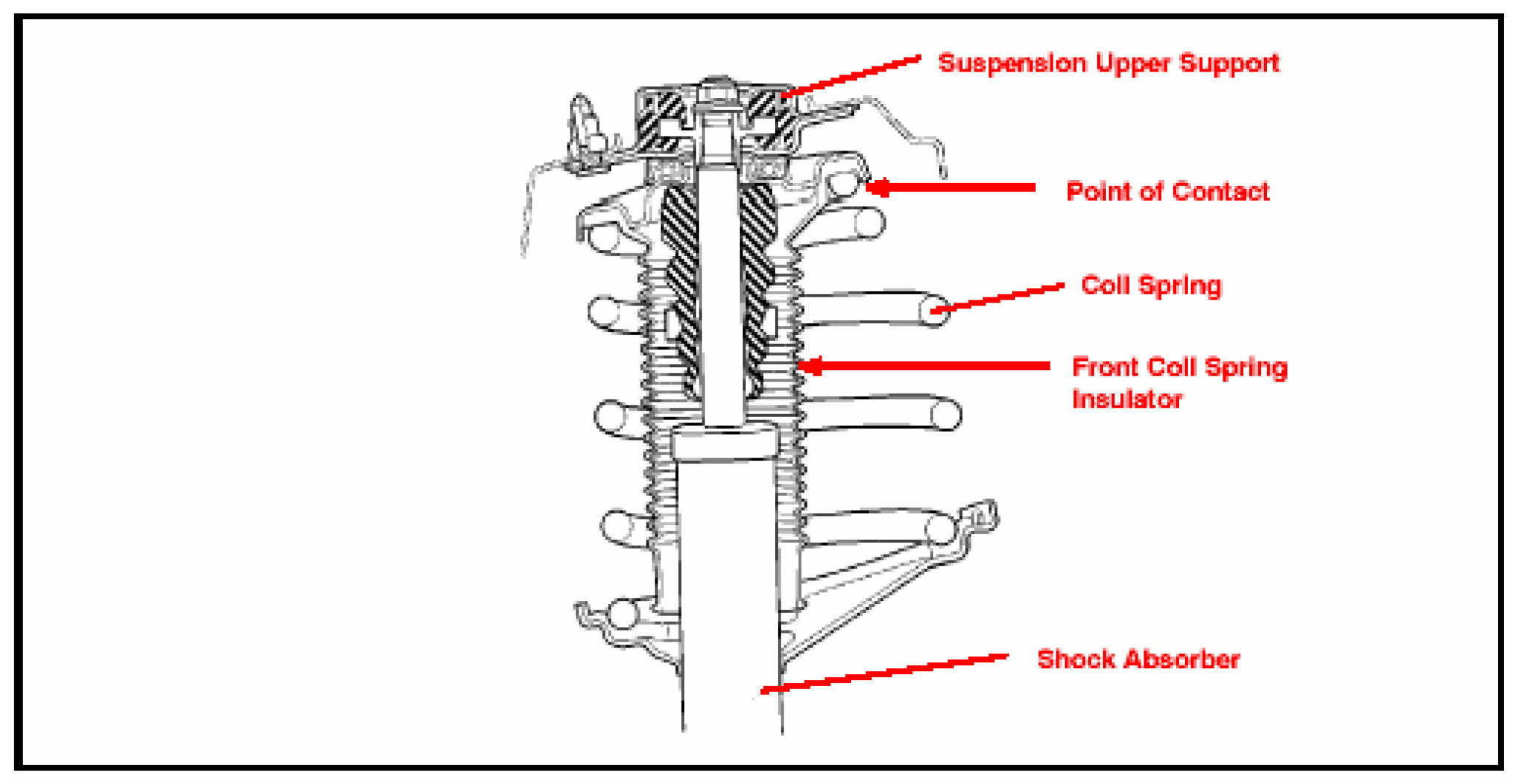

Some 2004 model year RX 330 vehicles may exhibit a creak or knock noise, from the front of the vehicle, while driving over small bumps, turning the wheels, or coming to a stop. The front coil spring may be contacting the suspension upper support. The front coil spring upper insulator has been changed to improve this condition.

APPLICABLE VEHICLES:
- 2004 model year RX330 vehicles produced BEFORE the Production Change Effective VIN shown below.

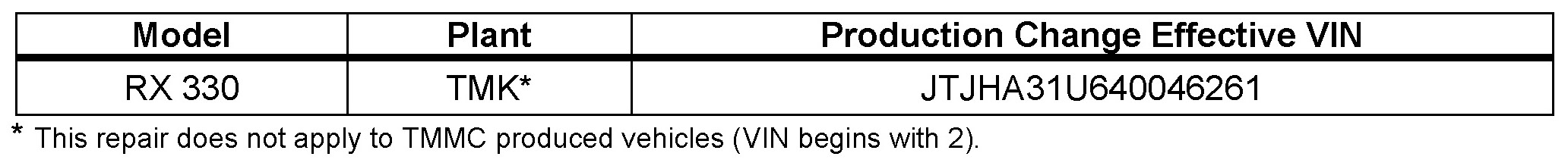

PRODUCTION CHANGE INFORMATION:

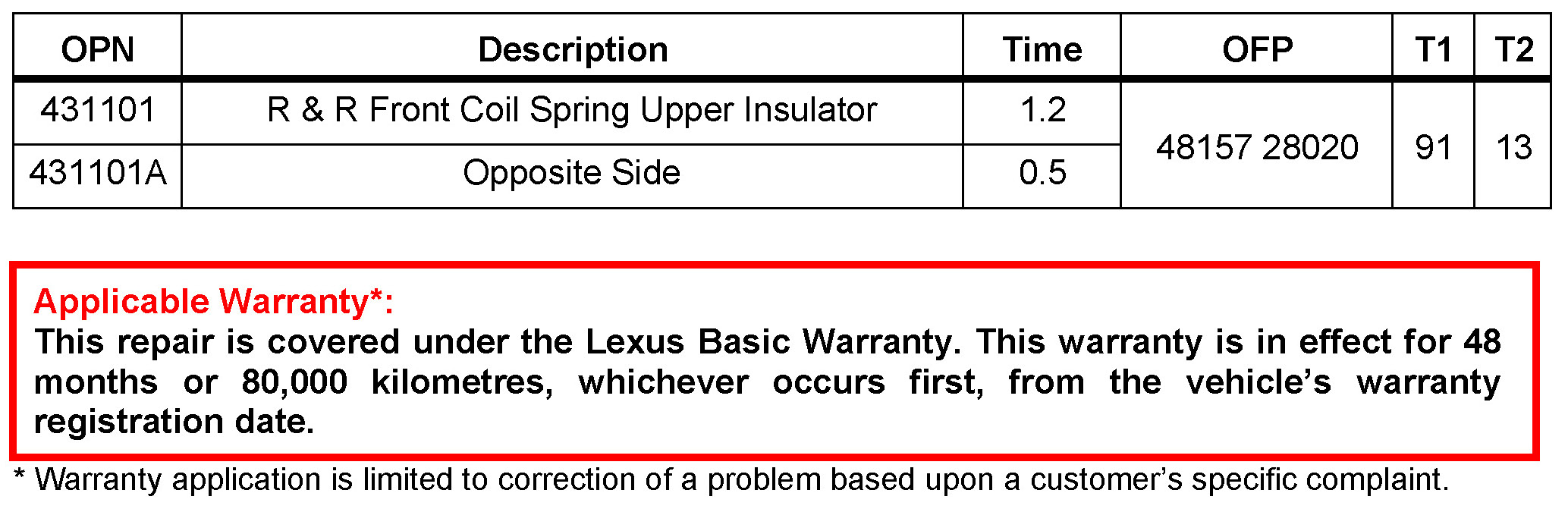

WARRANTY INFORMATION:







PARTS INFORMATION:

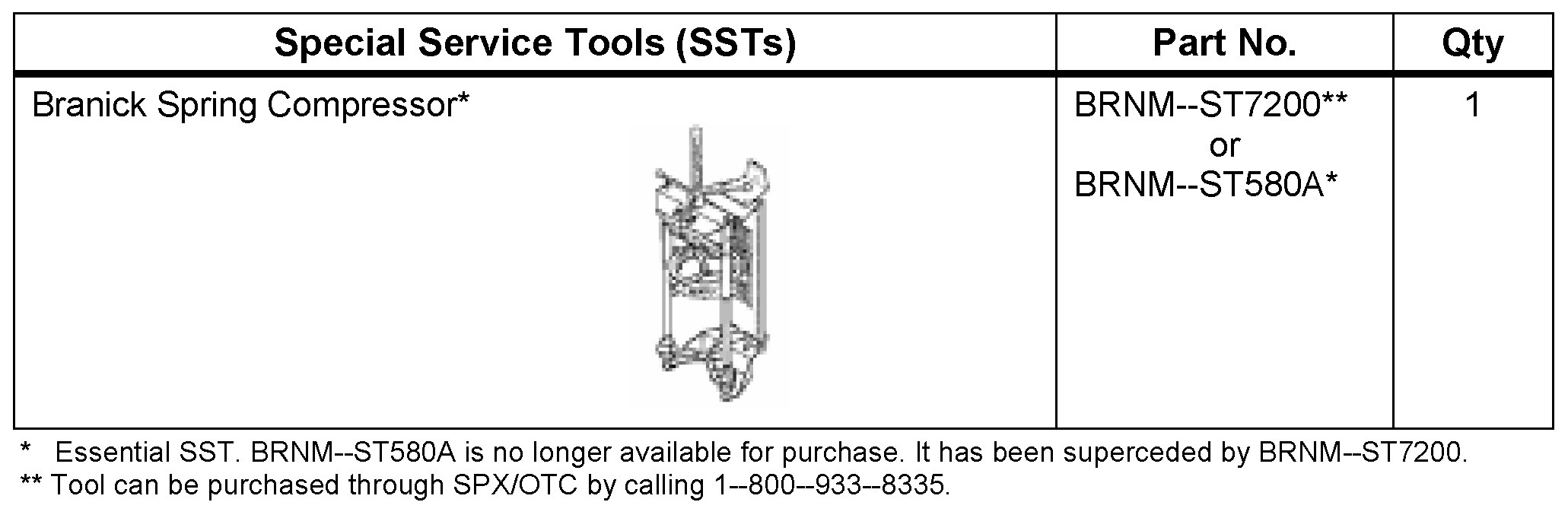

REQUIRED TOOLS & MATERIALS:

REPAIR PROCEDURE:

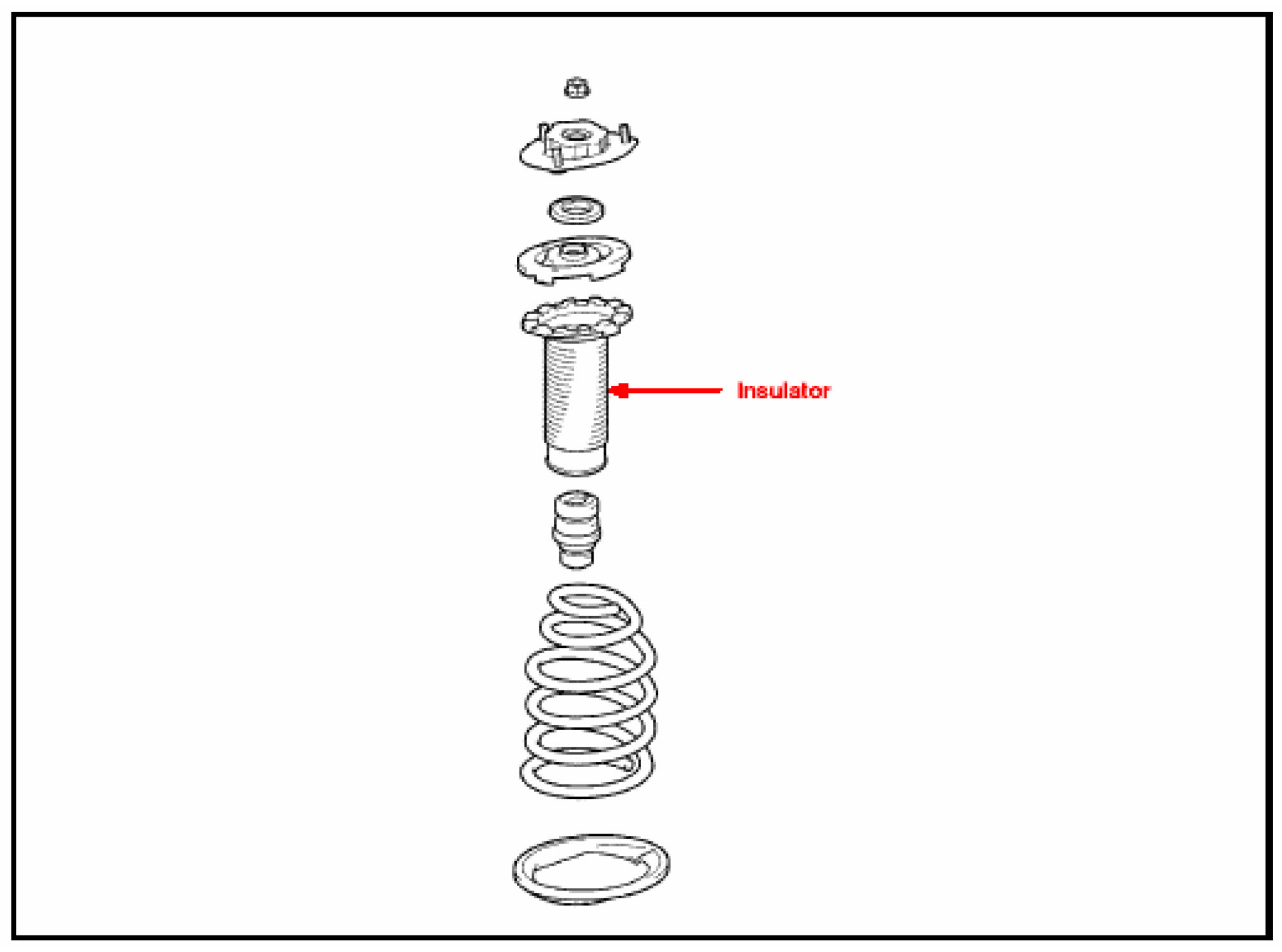

Replace the front coil spring upper insulator, on both front strut assemblies, by following the method in the 2004 RX 330 Repair Manual on ETAS.

Section: Front Suspension
Subsection: Shock Absorber Assy Front LH; Replacement

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
