Interior - Seat Backboard Trim Loose

BODY
BO001-04

Title:
SEAT BACKBOARD TRIM LOOSE

Models:
'04 RX 330

January 8, 2004

Introduction

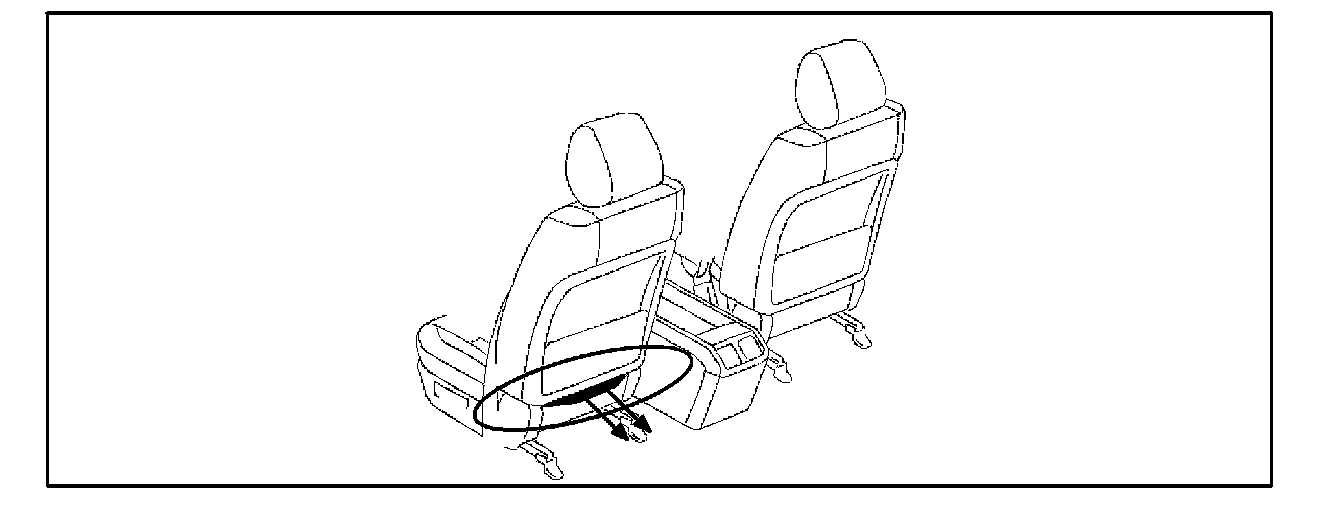

The front seat backboard lower trim covers on some 2004 model year RX 330 vehicles may become loose. A production change has been made to the part to improve this condition.

Applicable Vehicles

^ 2004 model year RX 330 vehicles produced BEFORE the Production Change Effective VINs shown below.

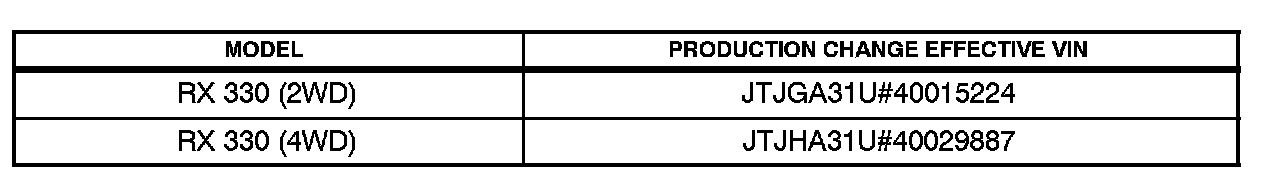

Production Change Information

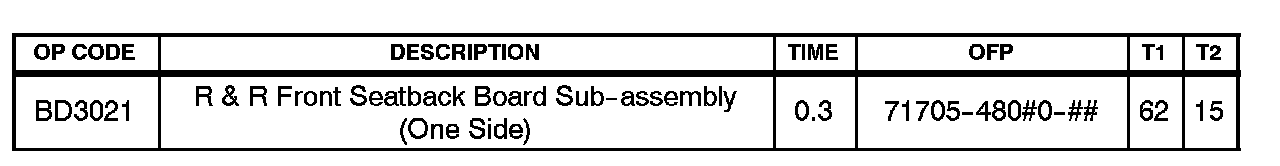

Warranty Information

Applicable Warranty * :
This repair is covered under the Lexus Comprehensive Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

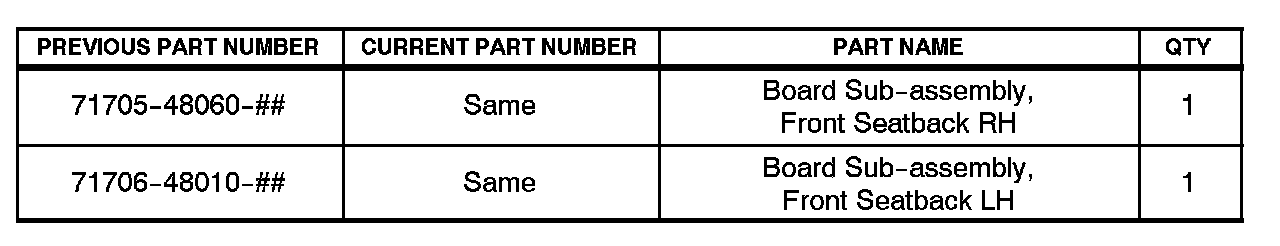

Parts Information

Repair Procedure

Replace the Front Seatback Board Sub-assembly with the new part. Refer to the Technical Information System (TIS) 2004 RX 330 Repair Manual: Seat: Front Seat Assembly LH: Overhaul (RX 330).
