Interior - Visor Vanity Mirror Cover Binds When Opening

BODY
BO013-03

December 11, 2003

Title
INTERIOR SUN VISOR VANITY MIRROR IMPROVEMENT

Models
'04 RX 330 (Japan Built)

Introduction

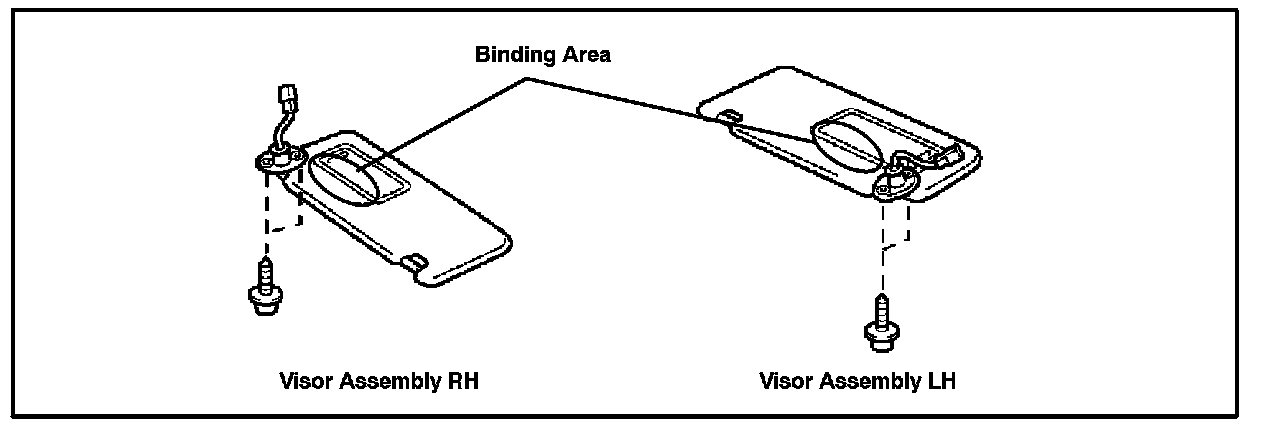

Some customers may complain that the vanity mirror cover binds when opening or may not fully open. A new service part is now available to address this condition.

Applicable Vehicles
^ 2004 model year RX 330 (Japan Built) vehicles produced BEFORE the Production Change Effective VINs shown below.

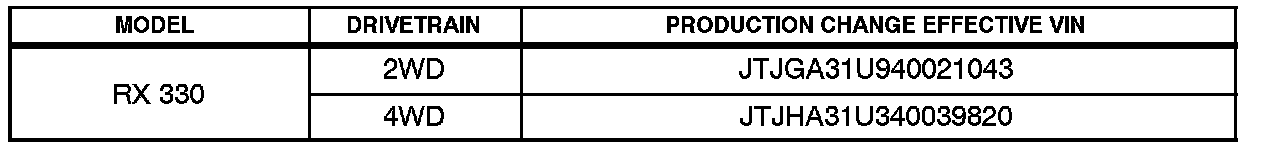

Production Change Information

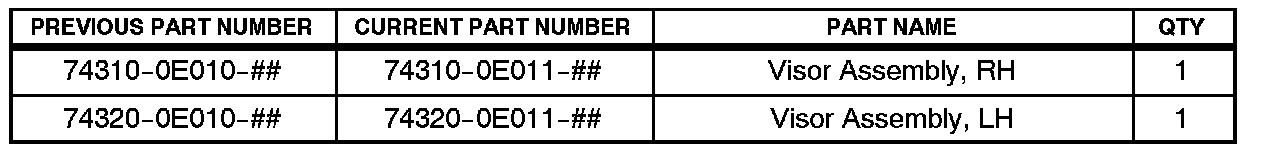

Parts Information

Repair Procedure





Replace the visor assembly with a new service part. Please refer to the Technical Information System (TIS): 2004 RX 330 Repair Manual: Exterior/Interior Trim: Roof Heading Assembly: Replacement (steps 41 and/or step 42).





Warranty Information

Applicable Warranty:

This repair is covered under the Lexus Comprehensive Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.
