Parking Assist System - No Picture From Backup Camera
L-SB-0013-09February 10, 2009
No Picture Displayed from Backup Camera
Service Category
Audio/Visual/Telematics
Section
Park Assist/Monitoring
Market
USA

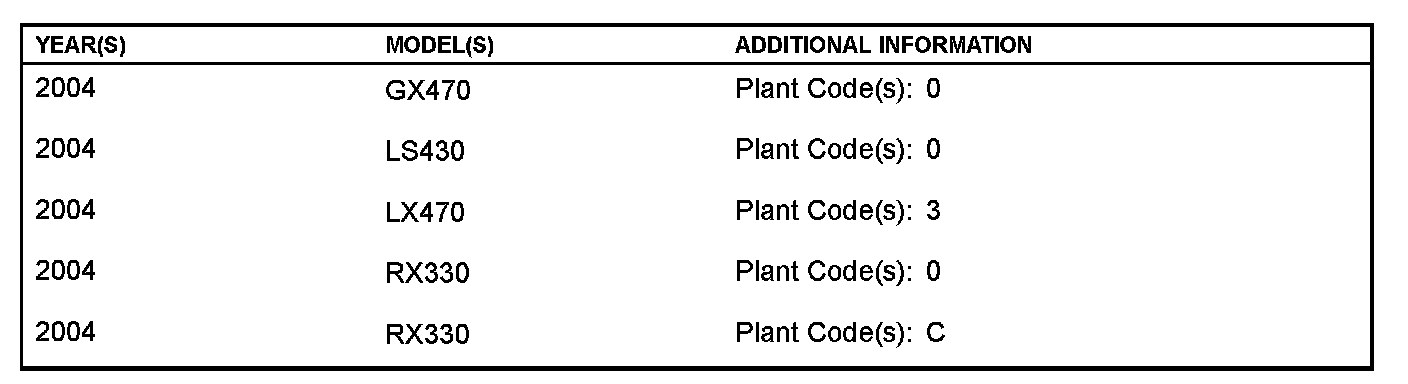

Applicability
The information contained in this TSIB supersedes TSIB No. EL003-05.
^ The warranty section has been updated.
^ The repair procedure has been updated.
TSIB No. EL003-05 is Obsolete and any printed versions should be discarded. Be sure to review the entire content of this service bulletin before proceeding.
Introduction
Some customers may experience a blank screen when shifting into reverse on vehicles equipped with the Lexus Navigation System and backup camera. A countermeasured camera has been developed to remedy this condition.
Production Change Information

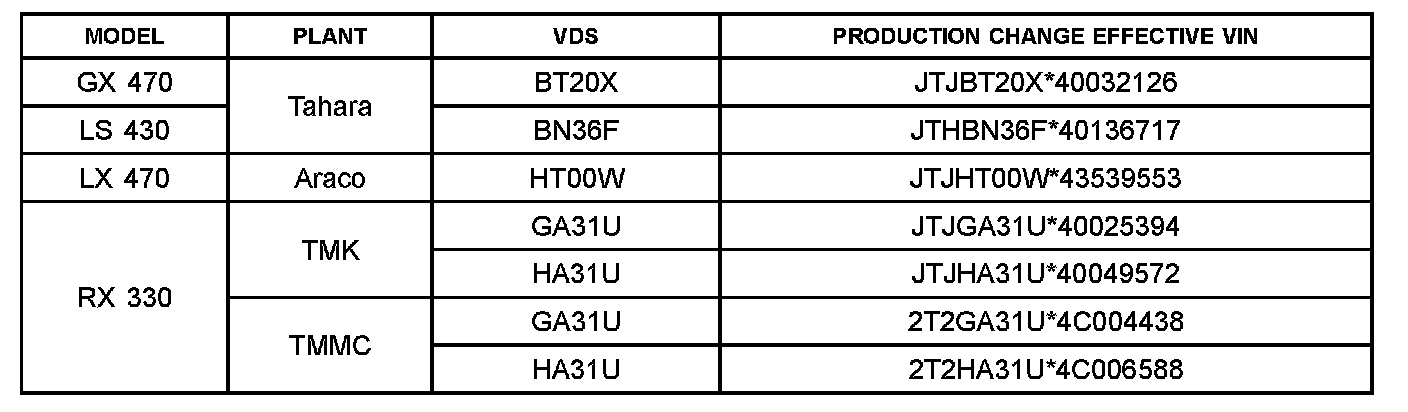

This TSIB applies to vehicles produced BEFORE the Production Change Effective VINs shown.

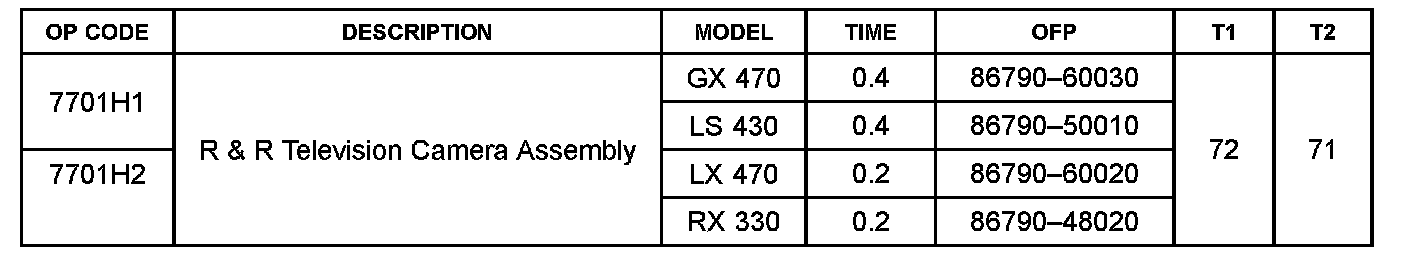

Warranty Information
^ This repair is covered under the Lexus Customer Support Program Warranty. This warranty is in effect for 84 months or Unlimited miles, whichever occurs first, from the vehicle's in-service date.
^ Warranty application is limited to correction of a problem based upon a customer's specific complaint.

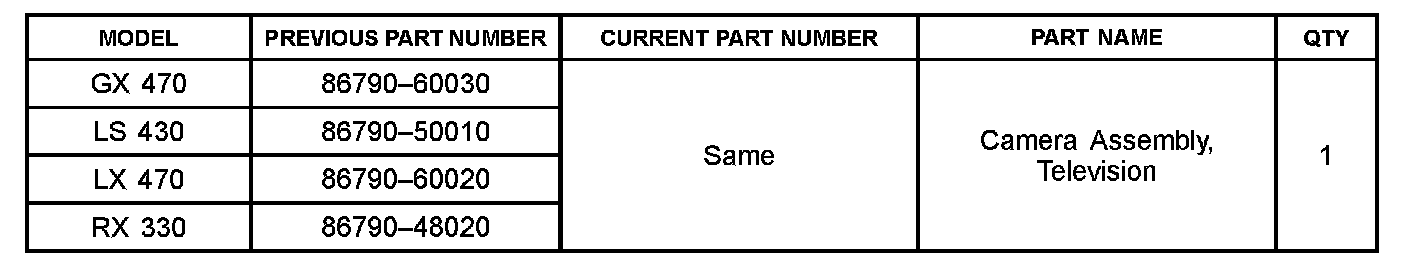

Parts Information
Repair Procedure
1. Confirm No Picture condition.
2. Replace the backup camera by removing the 2 screws holding the backup camera to the body above the license plate holder brackets (on applicable vehicles).
Refer to the Technical Information System (TIS) 2004 model year applicable vehicle Repair Manual: Audio & Visual System: "Television Camera Assy: Replacement".
^ GX 470: 2004
^ LS 430: 2004
^ LX 470: 2004
^ RX 330: 2004
3. Verify Repair.
