Headlamp Washer Motor: Service and Repair

HEADLAMP WASHER ACTUATOR SUB-ASSY LH

REPLACEMENT
1. REMOVE ENGINE UNDER COVER NO.1
2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSY LH
3. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSY RH
4. REMOVE FRONT BUMPER COVER




5. REMOVE HEADLAMP WASHER ACTUATOR SUB-ASSY LH
a. Pull out the head light cleaner washer nozzle.

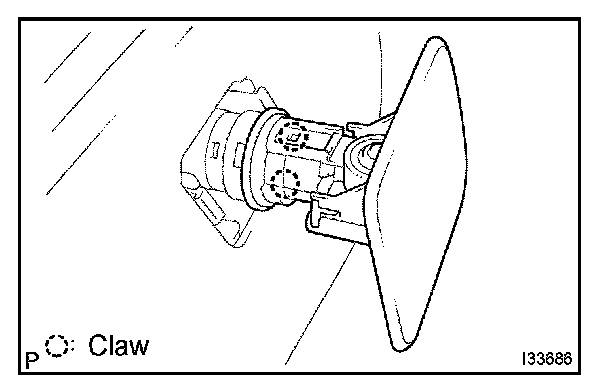

b. Disengage the 2 claws, remove the head light cleaner washer nozzle.

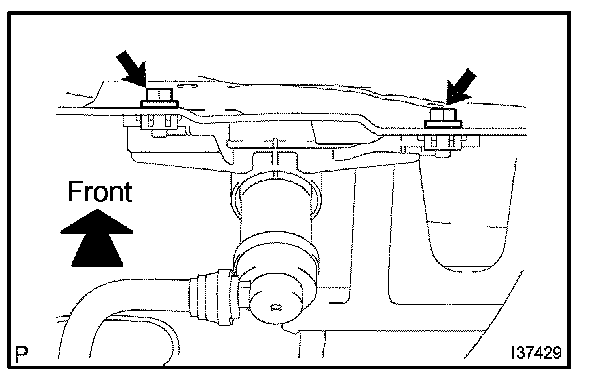

c. Remove the 2 bolts.

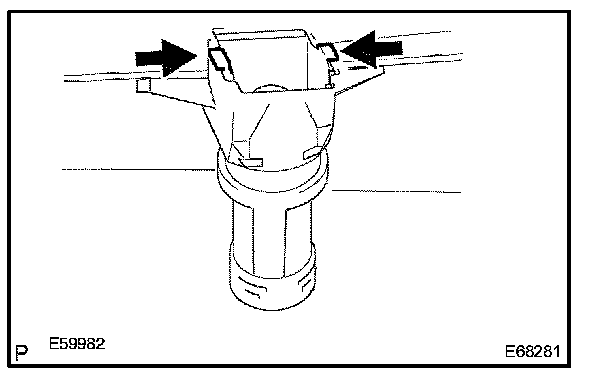

d. Alter the shape of the upper part of the headlamp washer actuator sub-assy LH, to remove it.

6. INSTALL FRONT BUMPER COVER
7. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSY LH
8. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSY RH
