Radio/Stereo: Service and Repair
RADIO RECEIVER ASSYREPLACEMENT
1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE SHIFT LEVER KNOB SUB-ASSY
3. REMOVE CONSOLE PANEL UPPER FRONT
4. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER

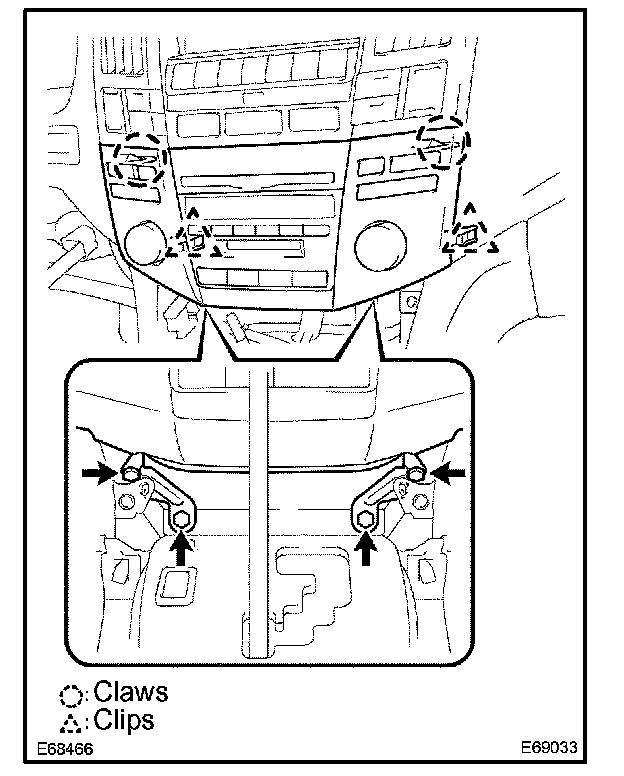

5. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET
a. Remove the 4 bolts.
b. Disengage the 2 claws and the 2 clips.
c. Disconnect the connector.
d. Remove the radio receiver assembly w/ bracket.

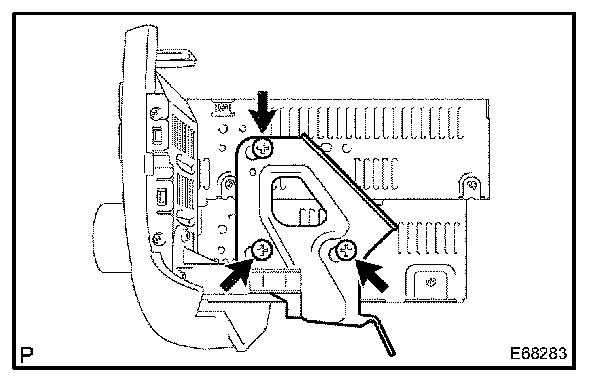

6. REMOVE RADIO BRACKET NO.1
a. Remove the 3 screws and the radio bracket No.1.

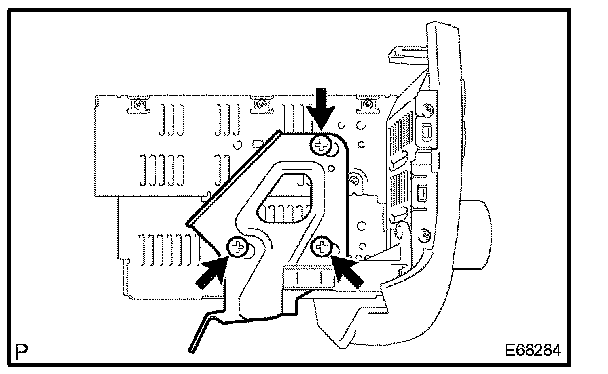

7. REMOVE RADIO BRACKET NO.2
a. Remove the 3 screws and the radio bracket No.2.
8. REMOVE RADIO RECEIVER ASSY
