Dashboard / Instrument Panel: Service and Repair
Instrument Panel/Meter:
REPLACEMENT

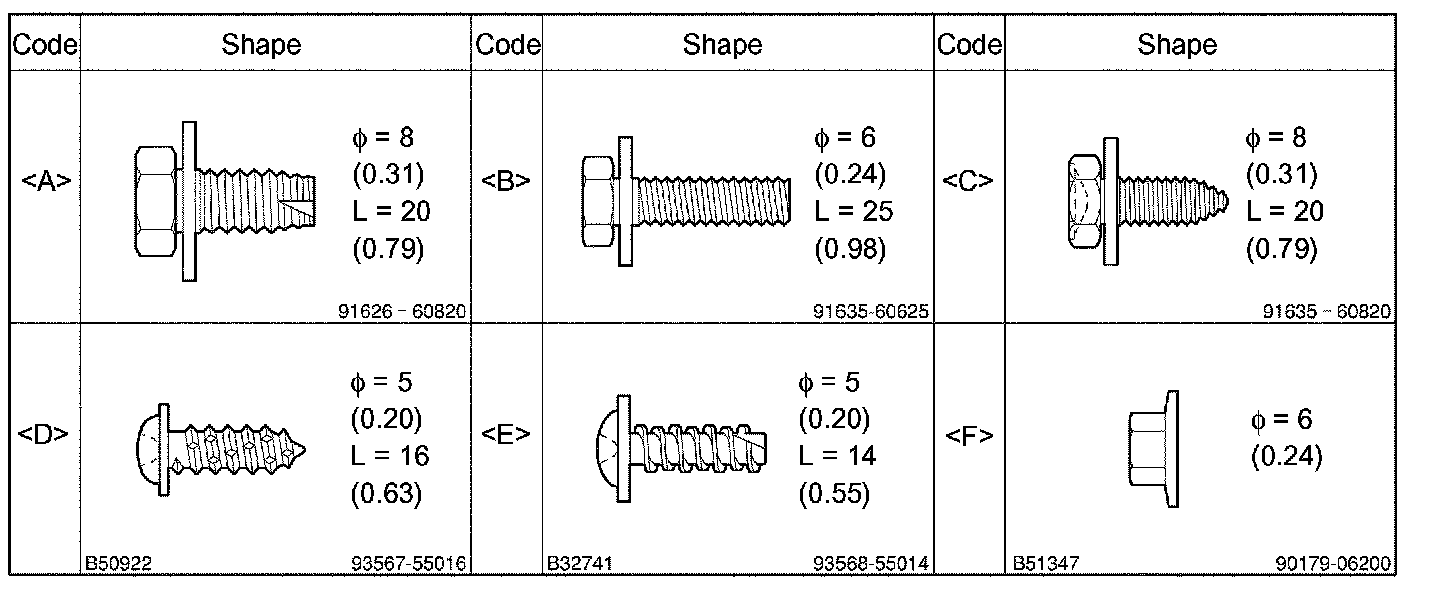

1. TABLE OF BOLT, SCREW AND NUT
HINT: The bolts, screws and nuts, necessary for installation and removal of the instrument panel, are shown in the illustration with alphabet code.
2. PRECAUTION
3. DISCONNECT BATTERY NEGATIVE TERMINAL

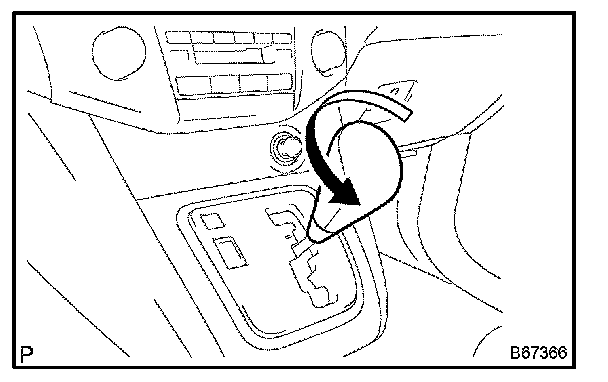

4. REMOVE SHIFT LEVER KNOB SUB-ASSY
a. Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assy.

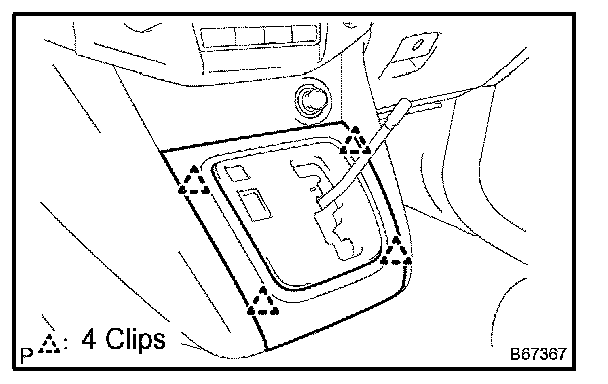

5. REMOVE CONSOLE PANEL UPPER FRONT
a. Disengage the 4 clips and remove the console panel upper front.

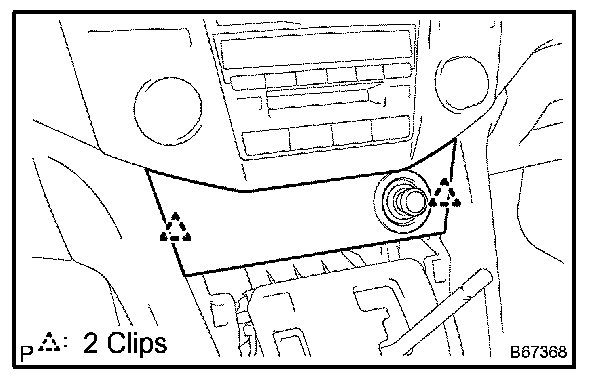

6. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER
a. Disengage the 2 clips and remove the instrument panel finish panel lower, then disconnect the connectors.
7. REMOVE RADIO RECEIVER ASSY
8. REMOVE CENTER CLUSTER INTEGRATION SWITCH ASSY (W/O LEXUS NAVIGATION SYSTEM)
9. REMOVE MULTI-DISPLAY ASSY (W/ LEXUS NAVIGATION SYSTEM)
10. REMOVE STEERING WHEEL COVER LOWER NO.2
11. REMOVE STEERING WHEEL COVER LOWER NO.3
12. REMOVE HORN BUTTON ASSY
13. REMOVE STEERING WHEEL ASSY
SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)
14. REMOVE STEERING COLUMN COVER
15. REMOVE TILT & TELESCOPIC SWITCH (TILT & TELESCOPIC STEERING)
16. REMOVE SPIRAL CABLE SUB-ASSY
17. REMOVE WINDSHIELD WIPER SWITCH ASSY
18. REMOVE HEADLAMP DIMMER SWITCH ASSY
19. REMOVE FRONT DOOR SCUFF PLATE LH
20. REMOVE COWL SIDE TRIM SUB-ASSY LH
21. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER

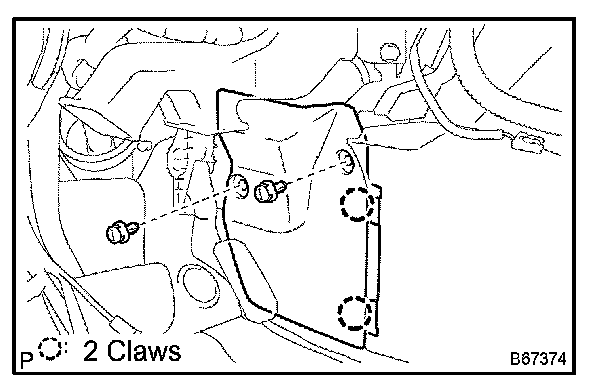

a. Remove the bolt and the screw
b. Disconnect the hood lock control cable assy.
c. Disengage the 5 claws and remove the 4 clips and the instrument panel finish panel sub-assy lower.
d. Disconnect the connectors.
22. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY
a. Disengage the 4 clips and remove the instrument cluster finish panel sub-assy.

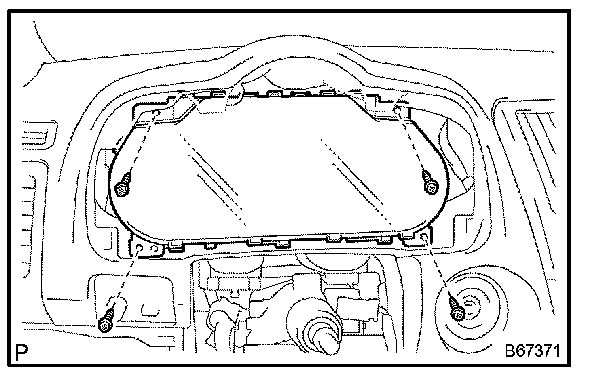

23. REMOVE COMBINATION METER ASSY
a. Remove the 4 screws
b. Pull out the combination meter assy, then disconnect the connectors.
24. REMOVE INSTRUMENT PANEL AIR BAG ASSY LOWER NO.1
25. REMOVE FRONT DOOR SCUFF PLATE RH
26. REMOVE COWL SIDE TRIM SUB-ASSY RH

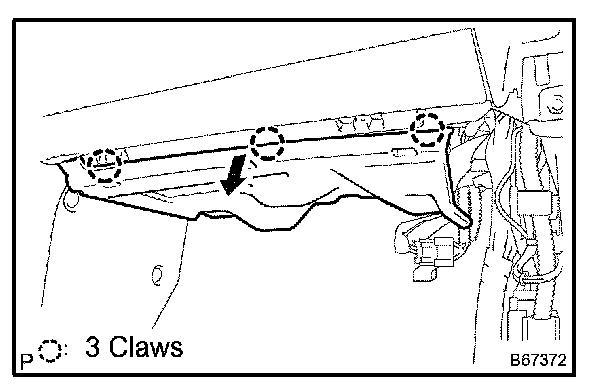

27. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2
a. Disengage the 3 claws, pull the instrument panel under cover sub-assy No.2 in the arrow direction, and remove it.

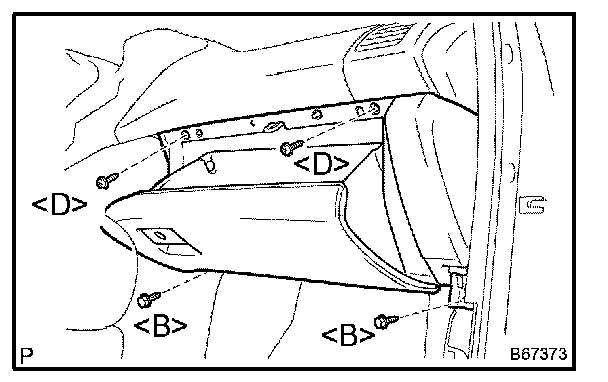

28. REMOVE GLOVE COMPARTMENT DOOR ASSY
a. Remove the 2 bolts and the 2 screws
b. Pull the glove compartment door assy to the rear to remove it.
c. Disconnect the connector.
29. REMOVE FLOOR CARPET COVER CENTER LH
a. Remove the 2 clips from the floor carpet cover center LH.
b. Depress the edge of the floor carpet cover center LH around the claws to disengage the 2 claws below the floor carpet cover center LH.
c. Slide the floor carpet cover center LH to the front of the vehicle, disengage the 2 claws from the instrument panel finish panel lower center at the floor carpet cover center LH.
d. Remove the floor carpet cover center LH.
30. REMOVE FLOOR CARPET COVER CENTER RH
31. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
a. Remove the 7 screws
b. Disengage the 2 clips and remove the instrument panel finish panel lower center.
32. REMOVE FRONT PILLAR GARNISH LH
33. REMOVE FRONT PILLAR GARNISH RH
34. REMOVE INSTRUMENT PANEL FINISH PLATE
35. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.1
a. Remove the screw
b. Using a screwdriver, lever up the 2 claws on the body from inside of the register.
c. Remove the instrument panel register assy No.1.

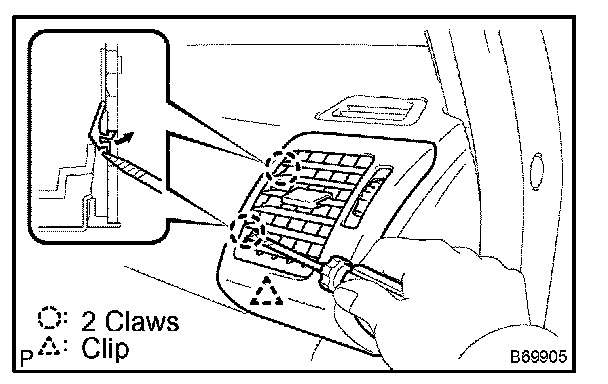

36. REMOVE INSTRUMENT PANEL REGISTER ASSY LOWER NO.1
a. Using a screwdriver, lever up the 2 claws and on the body from inside of the register.
b. Disengage the clip and remove the instrument panel register assy lower No.1.
37. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/PASSENGER AIR BAG ASSY
a. Remove the bolts and nuts as shown in the illustration below.
b. Disconnect each of the clamps and the connectors.
c. Pull the instrument panel safety pad to the rear and check that none of the wire harness is stuck in the body.
38. REMOVE SPEAKER HOLE COVER NO.1 (W/ MARK LEVINSON SPEAKER SYSTEM)
a. Disengage the 4 clips and remove the speaker hole cover No.1.
39. REMOVE INSTRUMENT PANEL SPEAKER PANEL SUB-ASSY NO.1
a. Disengage the 2 clips and remove the instrument panel speaker panel sub-assy No.1.
40. REMOVE INSTRUMENT PANEL SPEAKER PANEL SUB-ASSY NO.2
41. REMOVE FRONT NO.2 SPEAKER ASSY (W/ MARK LEVINSON SPEAKER SYSTEM)
42. REMOVE FRONT NO.2 SPEAKER ASSY
43. REMOVE FRONT NO.2 SPEAKER ASSY
44. REMOVE SIDE DEFROSTER NOZZLE DUCT NO.3
a. Remove the screw
45. REMOVE SIDE DEFROSTER NOZZLE DUCT NO.4

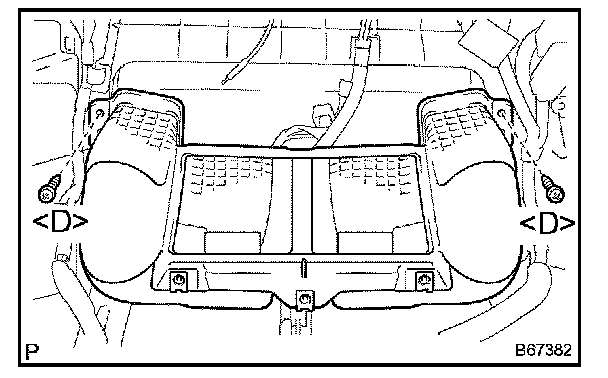

46. REMOVE DEFROSTER NOZZLE ASSY
a. Remove the 4 screws

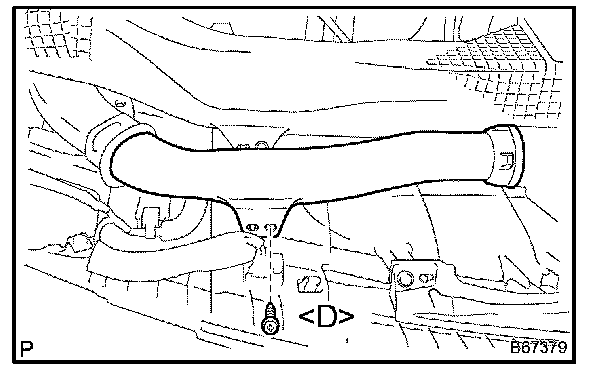

47. REMOVE HEATER TO REGISTER DUCT NO.1
a. Remove the 4 screws
48. REMOVE HEATER TO REGISTER DUCT NO.4
49. REMOVE HEATER TO REGISTER CENTER SUB DUCT
a. Remove the 2 screws

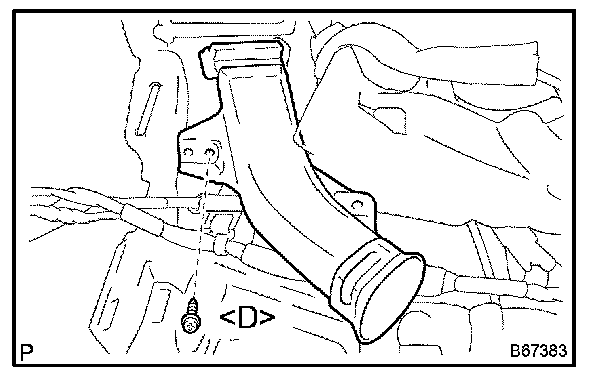

50. REMOVE SIDE DEFROSTER NOZZLE DUCT NO.1
a. Remove the screw
51. REMOVE SIDE DEFROSTER NOZZLE DUCT NO.2
52. REMOVE SIDE DEFROSTER NOZZLE NO.1
53. REMOVE SIDE DEFROSTER NOZZLE NO.2

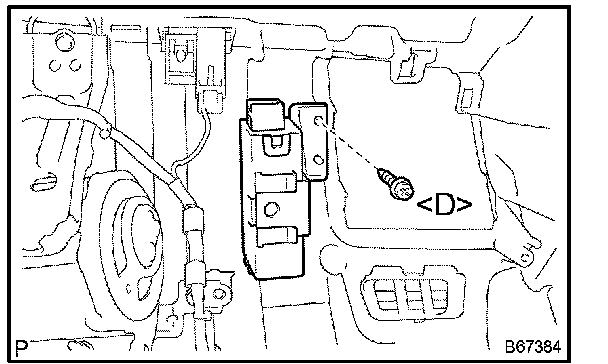

54. REMOVE NETWORK GATEWAY ECU (W/ LEXUS NAVIGATION SYSTEM)
a. Remove the screw
55. REMOVE INSTRUMENT PANEL BRACKET SUB-ASSY CENTER
a. Remove the screw
56. REMOVE GLOVE BOX LAMP ASSY
57. REMOVE NAVIGATION ANTENNA (W/ LEXUS LINK SYSTEM)
58. REMOVE ANTENNA CORD SUB-ASSY
59. REMOVE INSTRUMENT PANEL WIRE NO.2
a. Remove the 2 screws.
b. Release the 18 clamps and remove the instrument panel wire No.2.
60. REMOVE AUTOMATIC LIGHT CONTROL SENSOR
61. REMOVE DEFROSTER NOZZLE GARNISH NO.1
62. REMOVE INSTR PNL PASS L/DOOR AIR BAG ASSY
63. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY
64. INSTALL INSTR PNL PASS L/DOOR AIR BAG ASSY
65. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/PASSENGER AIR BAG ASSY
a. Using a torque wrench, install the bolt
Torque: 20 Nm (204 kgf.cm, 15 ft.lbf)
b. Install the instrument panel safety pad sub-assy with the bolts and nuts.
66. ADJUST SPIRAL CABLE SUB-ASSY
67. INSTALL STEERING WHEEL ASSY
68. INSTALL HORN BUTTON ASSY
69. INSPECT HORN BUTTON ASSY
70. INSPECT SRS WARNING LIGHT
