Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

CHECK POSITION CONTROL ECU & SWITCH ASSY

Terminals Of ECU:

a. Disconnect the P32 and P33 ECU & switch connectors.

Pinouts:

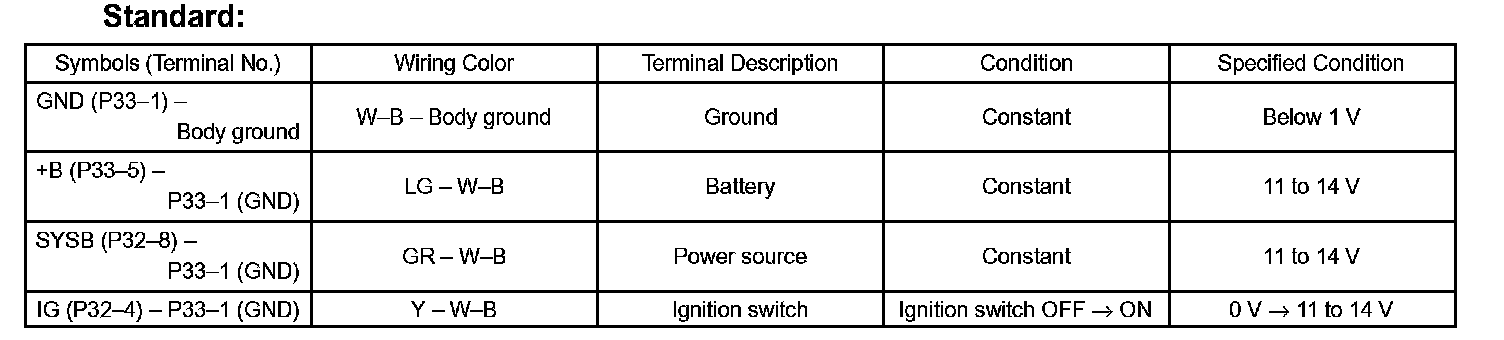

b. Check the voltage of each terminal of the wire harness side connectors.
If the result is not as specified, there may be a malfunction on the wire harness side.

c. Reconnect the P32 and P33 ECU & switch connectors.

Pinouts:

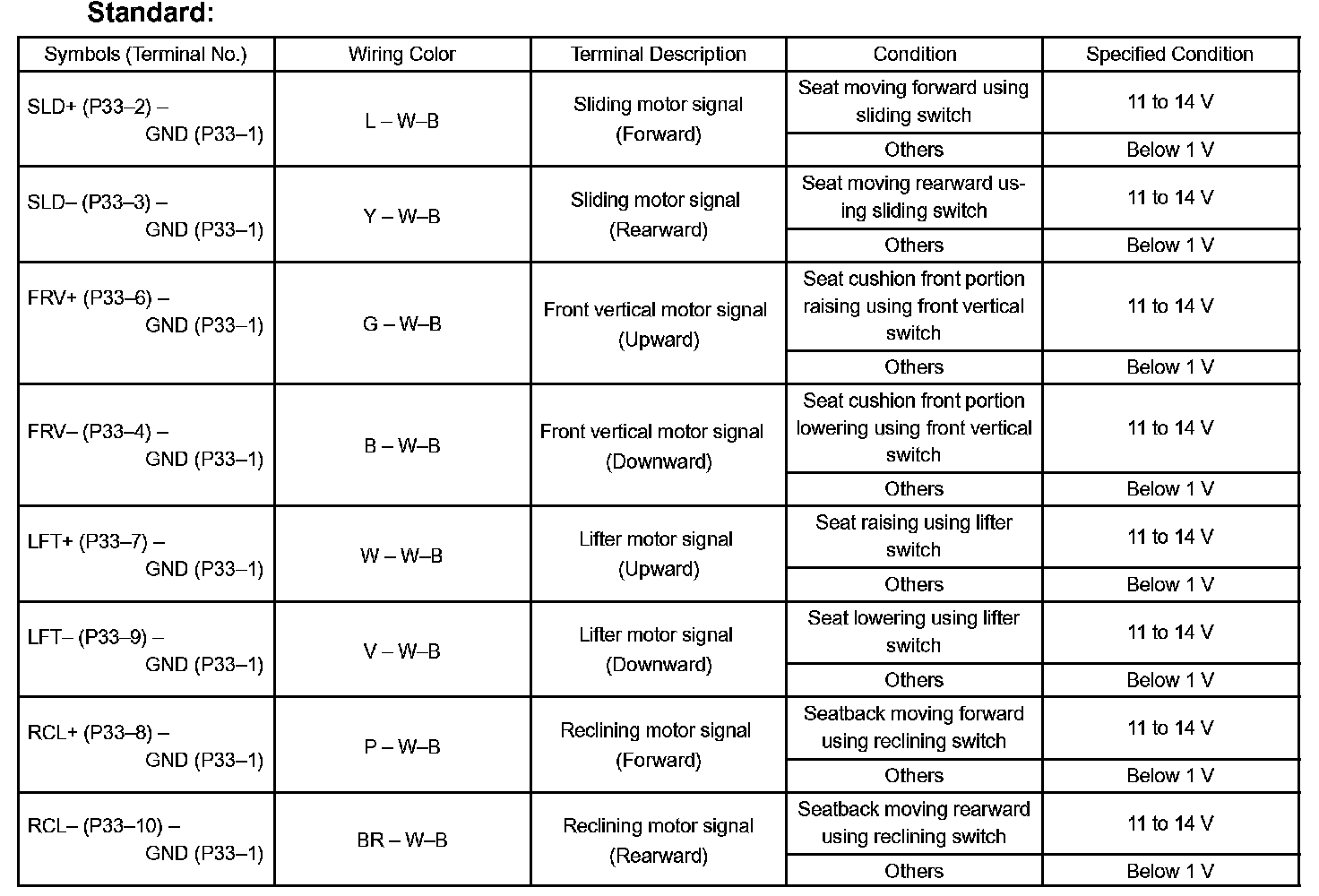

d. Check the voltage of each terminal of the connectors.

If the result is not as specified, the position control ECU & switch may be malfunctioning.
