Lexus Truck
>>
2004
>>
RX 330 FWD V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

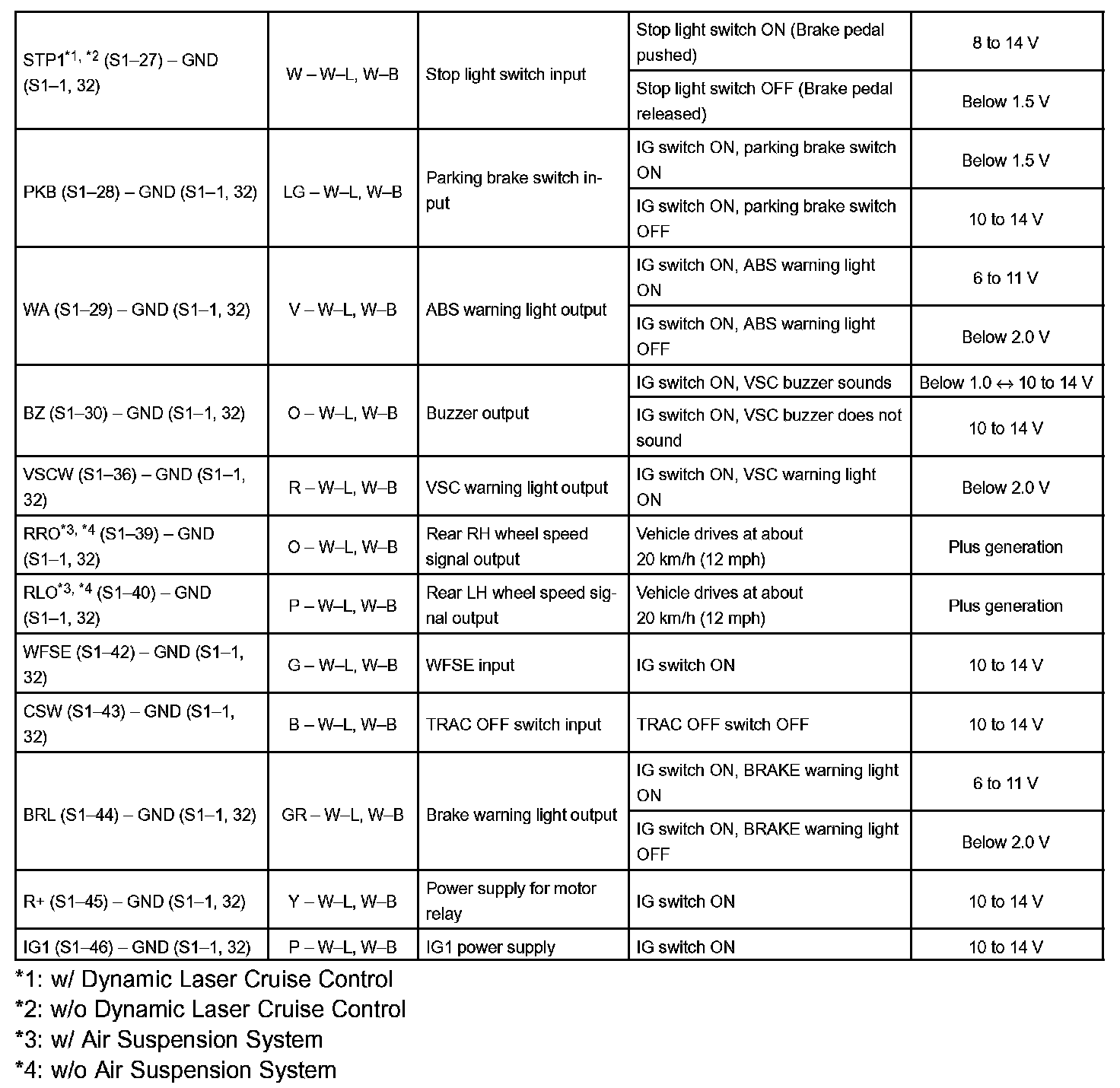

Terminals Of ECU/Pinouts - Skid Control ECU Part 1:
Terminals Of ECU/Pinouts - Skid Control ECU Part 2:
