Cruise Control System

CHECK THE INDICATOR




1. Turn the ignition switch to the ON position.

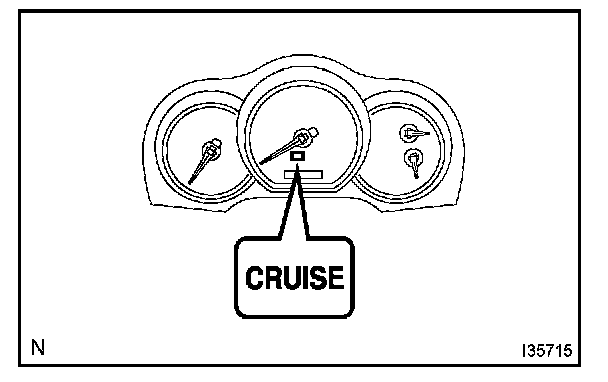

2. Check that the CRUISE MAIN indicator light comes on when the main switch button is ON, and that the indicator light goes off when the main switch is OFF.

HINT: If there is a problem with the indicator, inspect the cruise main indicator light circuit.






HINT: If a malfunction occurs in the vehicle speed sensors or stop lamp switch assy, etc. during cruise control driving, the ECM actuates AUTO CANCEL of the cruise control and then the CRUISE MAIN indicator light will start to blink, informing the driver of a malfunction. At the same time, data of the malfunction is stored as a diagnostic trouble code, or DTC.
