Fuse Block

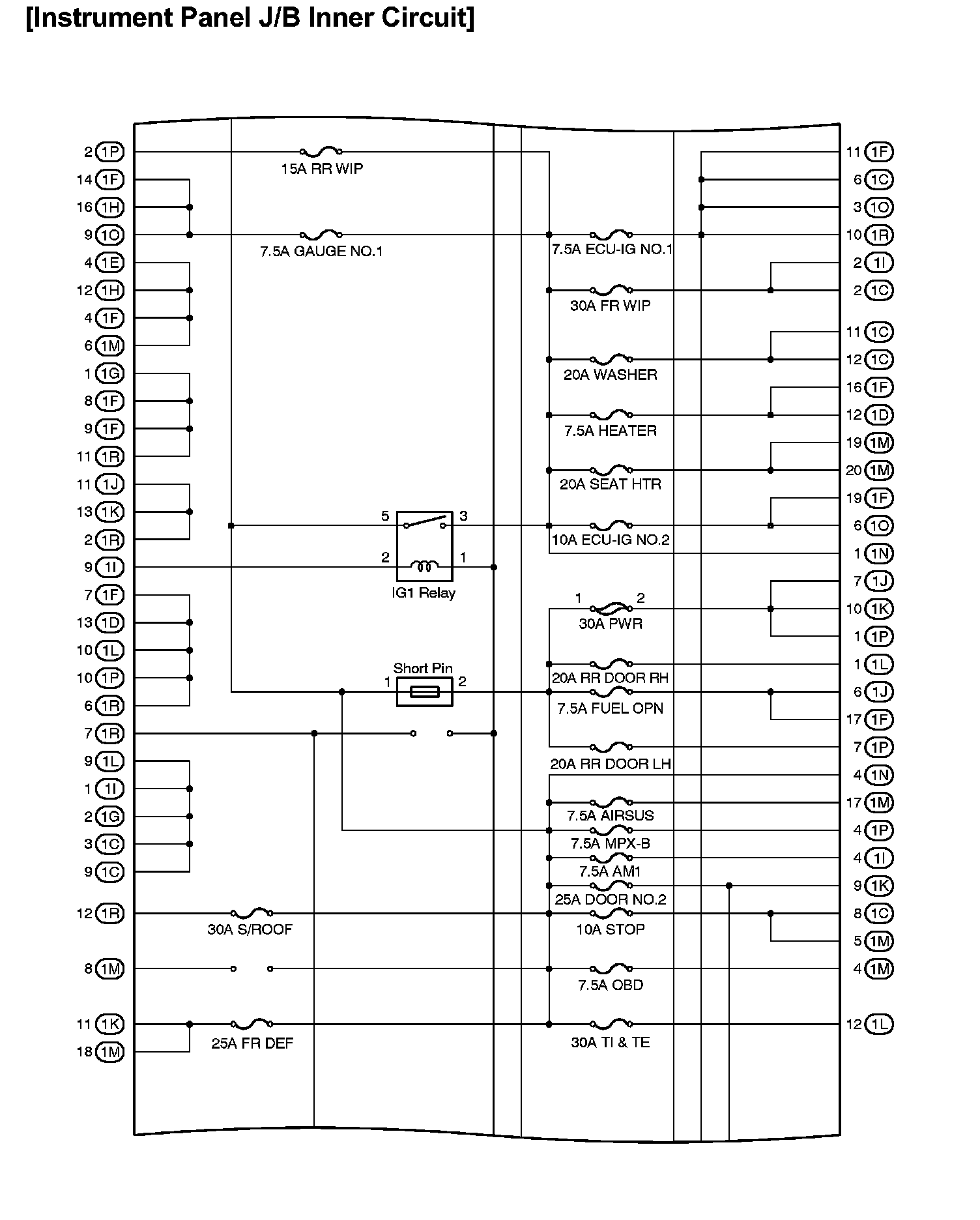

Instrument Panel J/B Inner Circuit:

Instrument Panel J/B Inner Circuit:

Instrument Panel J/B Inner Circuit:

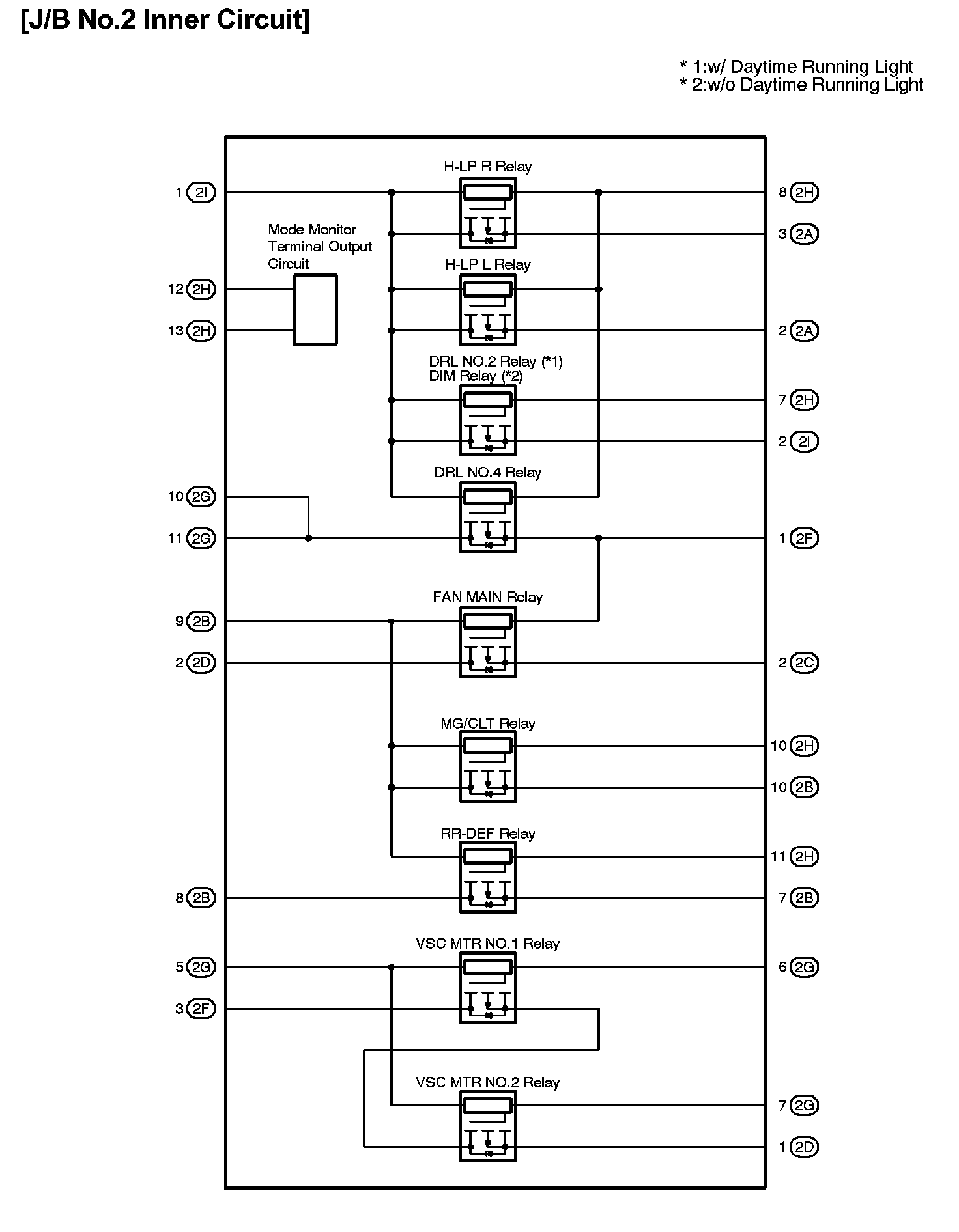

J/B No.2 Inner Circuit:

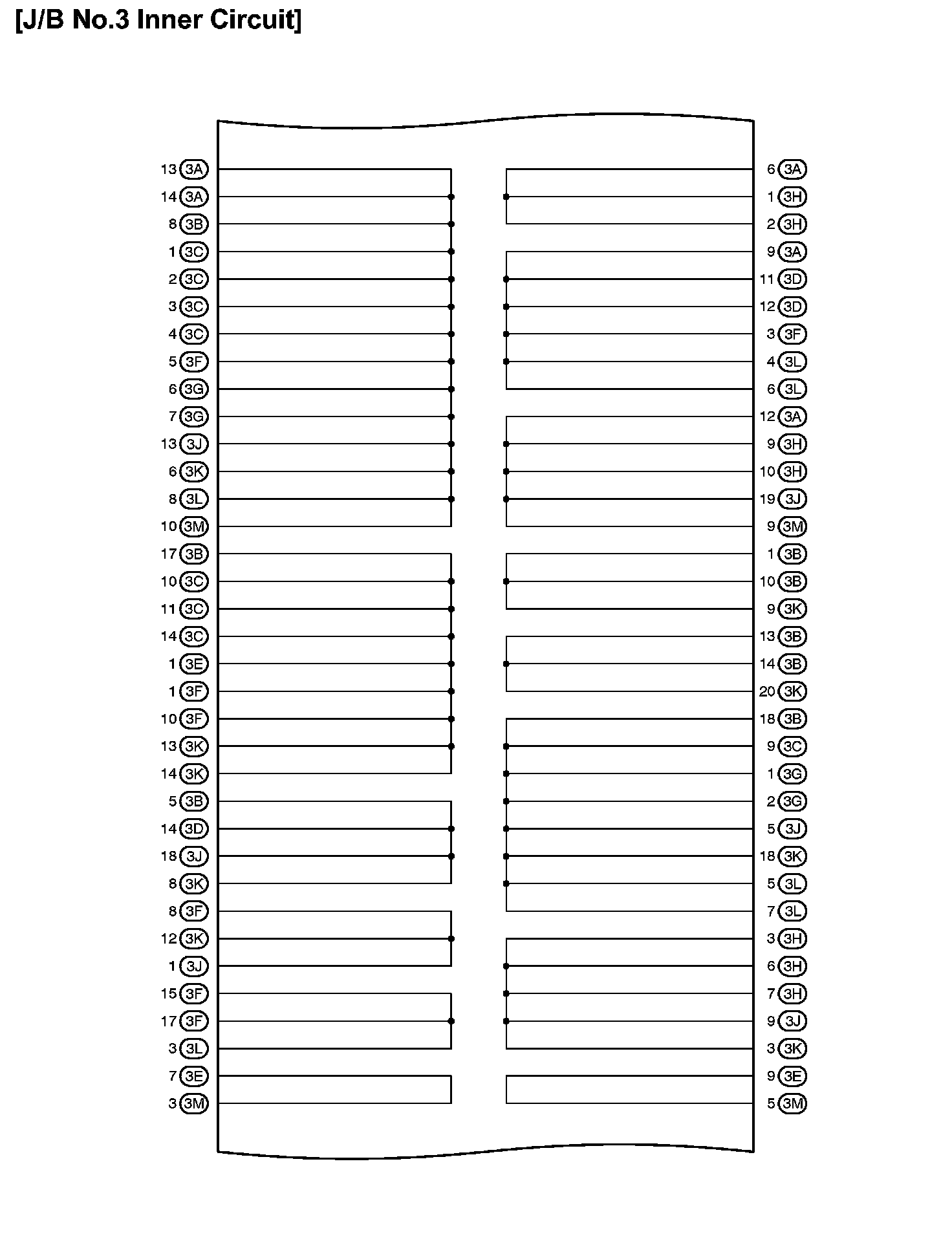

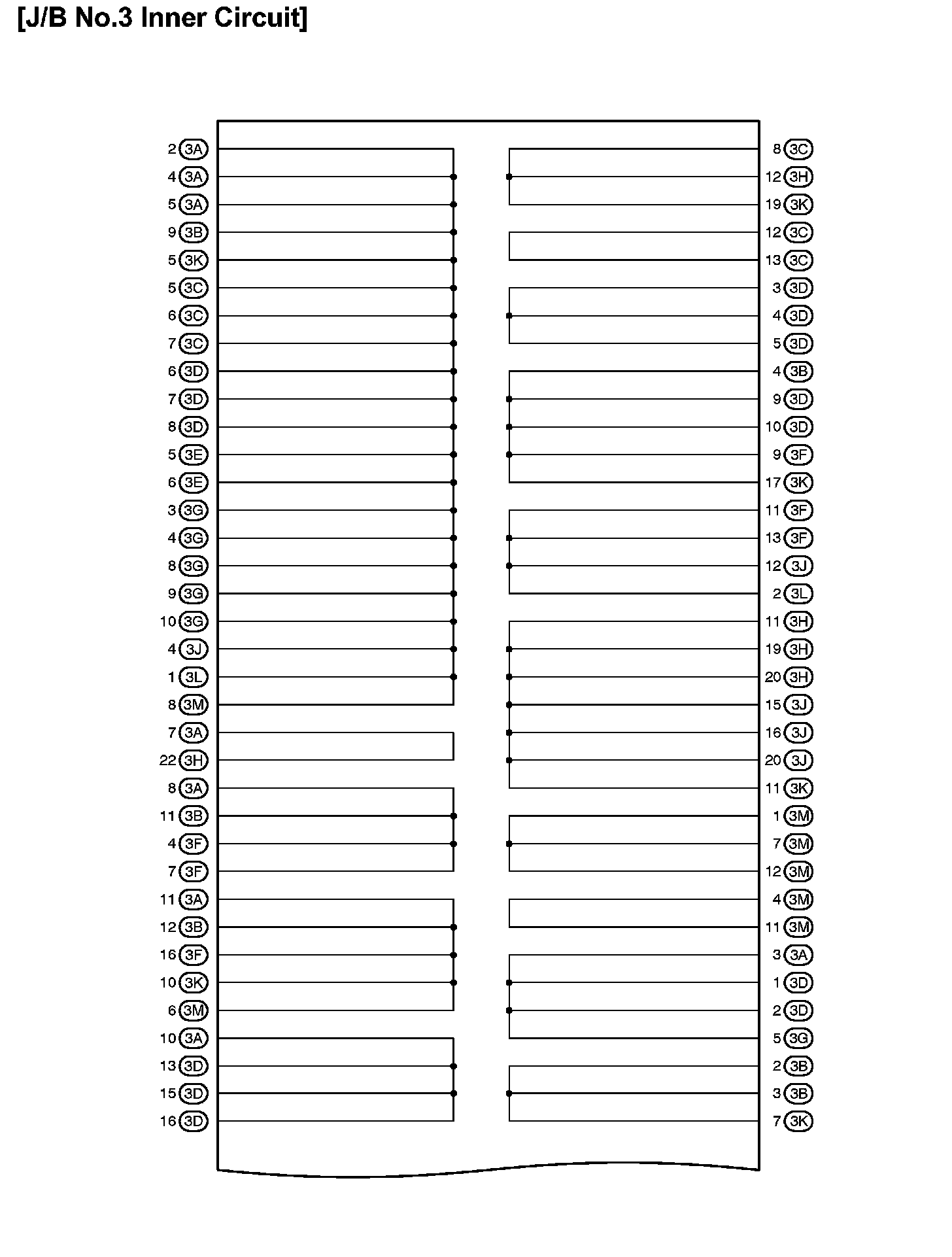

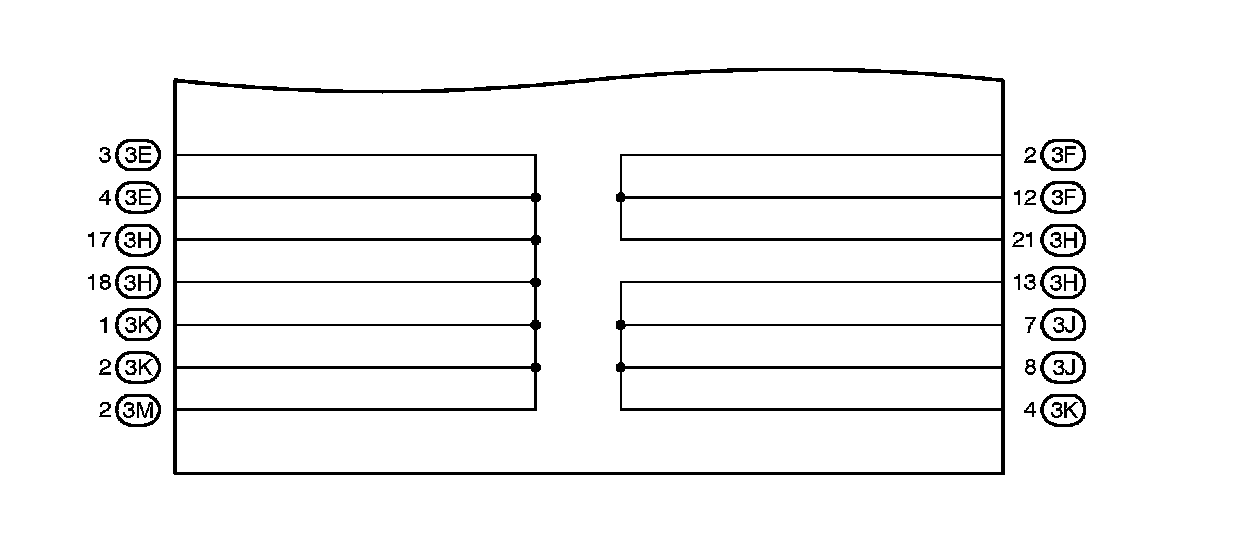

J/B No.3 Inner Circuit:

J/B No.3 Inner Circuit:

J/B No.3 Inner Circuit:

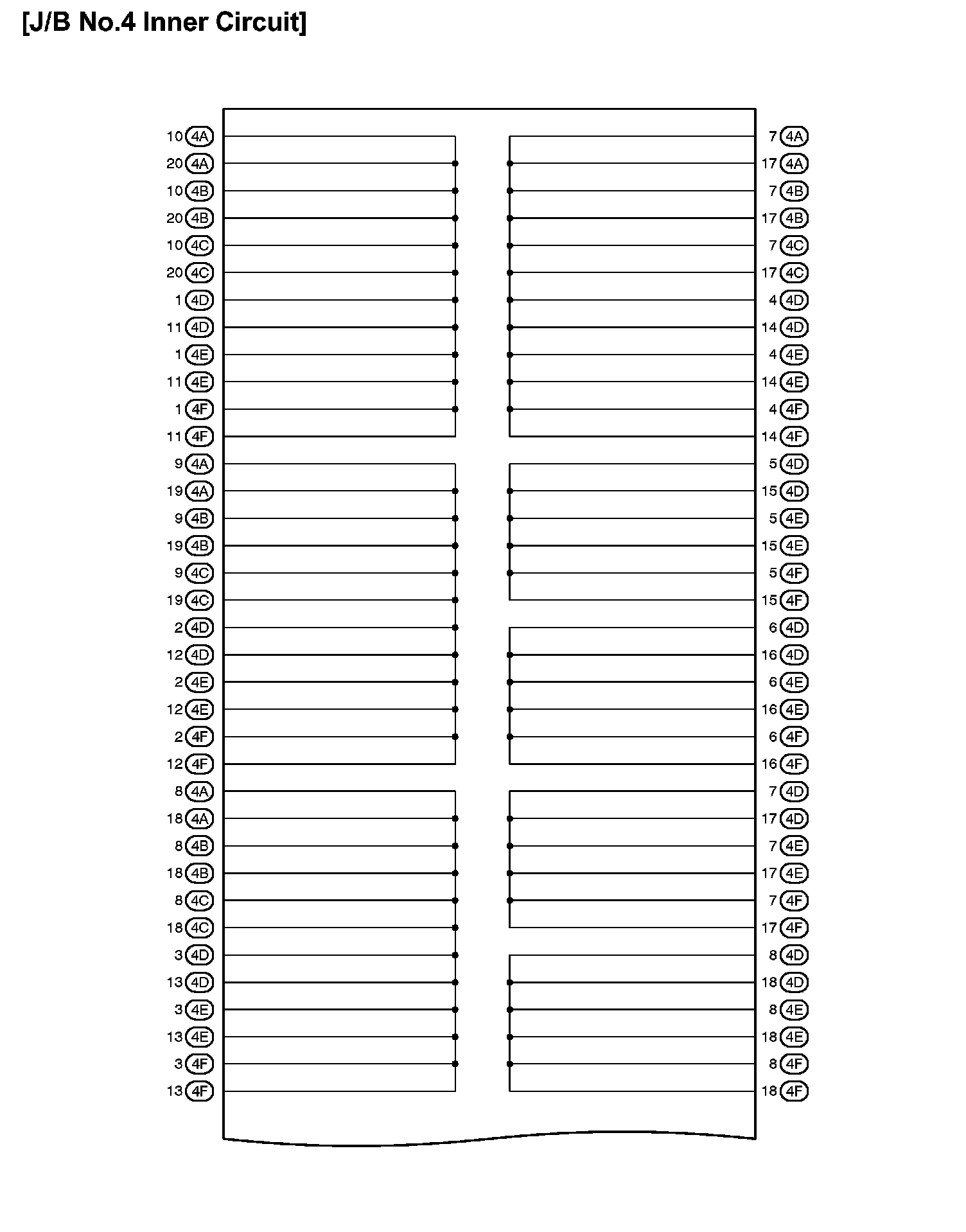

J/B No.4 Inner Circuit:

J/B No.4 Inner Circuit:

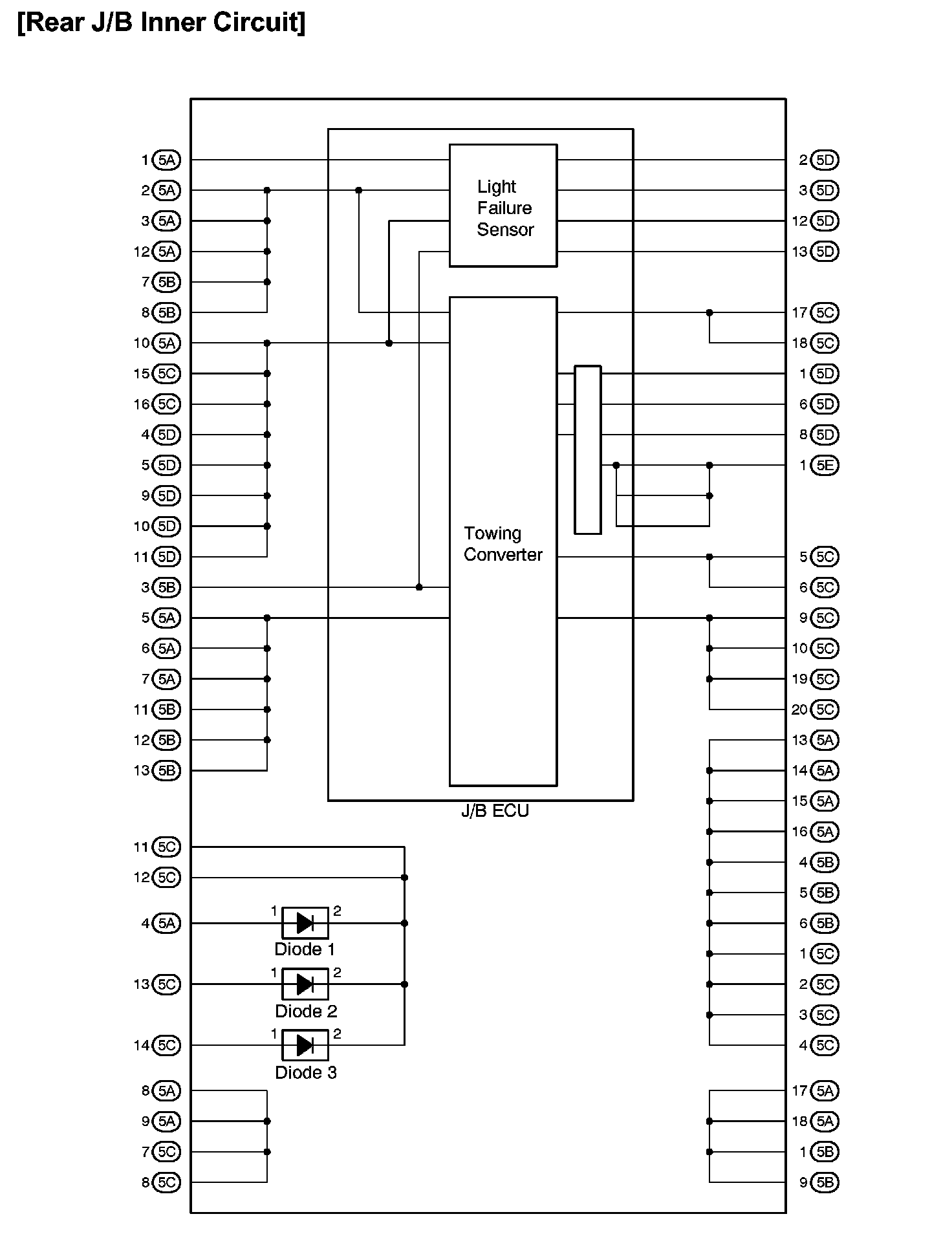

Rear J/B Inner Circuit:
