Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lexus Truck
>>
2004
>>
RX 330 FWD V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Oil Pump, Engine
Oil Pump, Engine

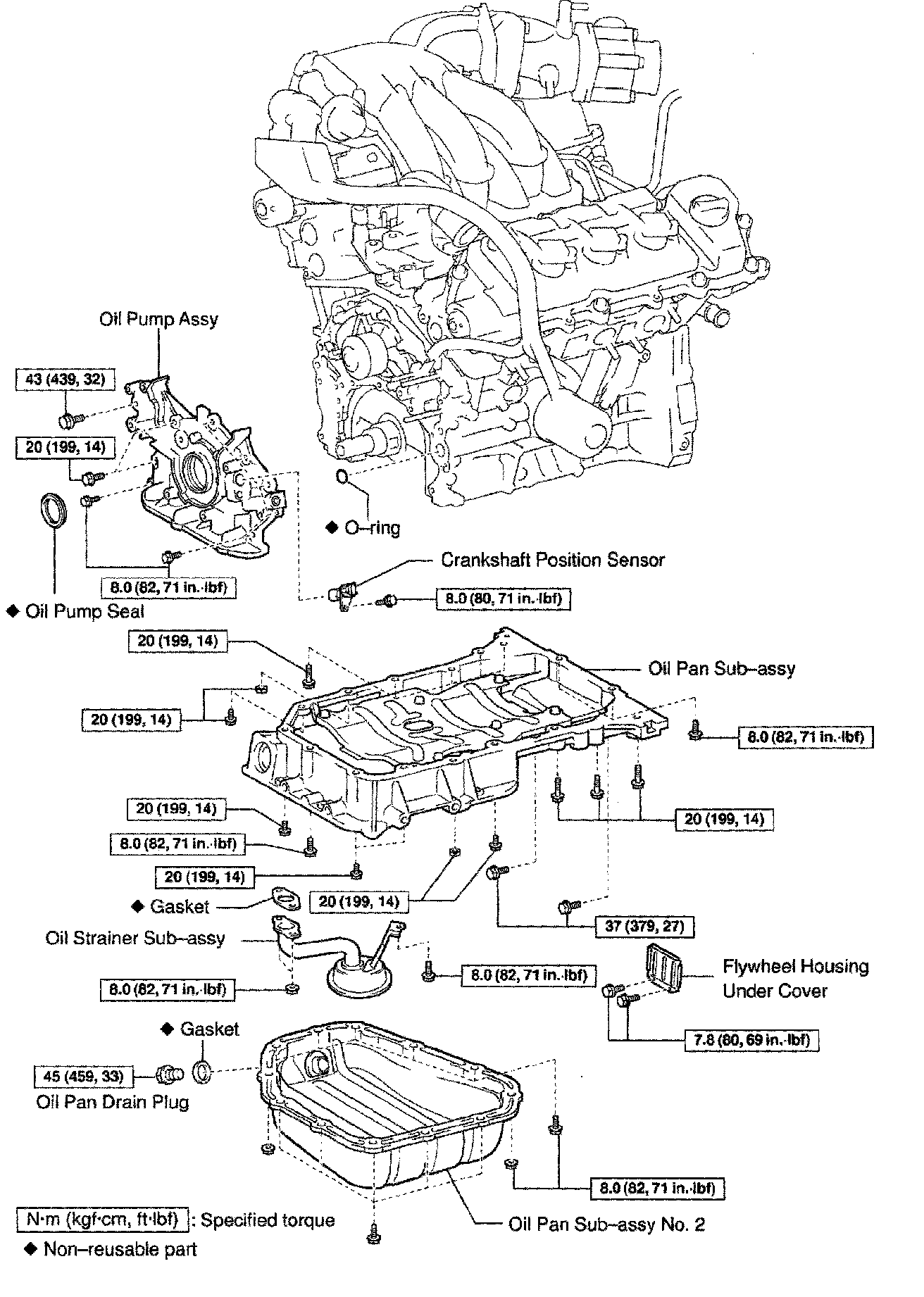

OIL PUMP ASSY REPLACEMENT W/ RELATED COMPONENTS
