Heating and Air Conditioning
>>
System Diagram
System Diagram

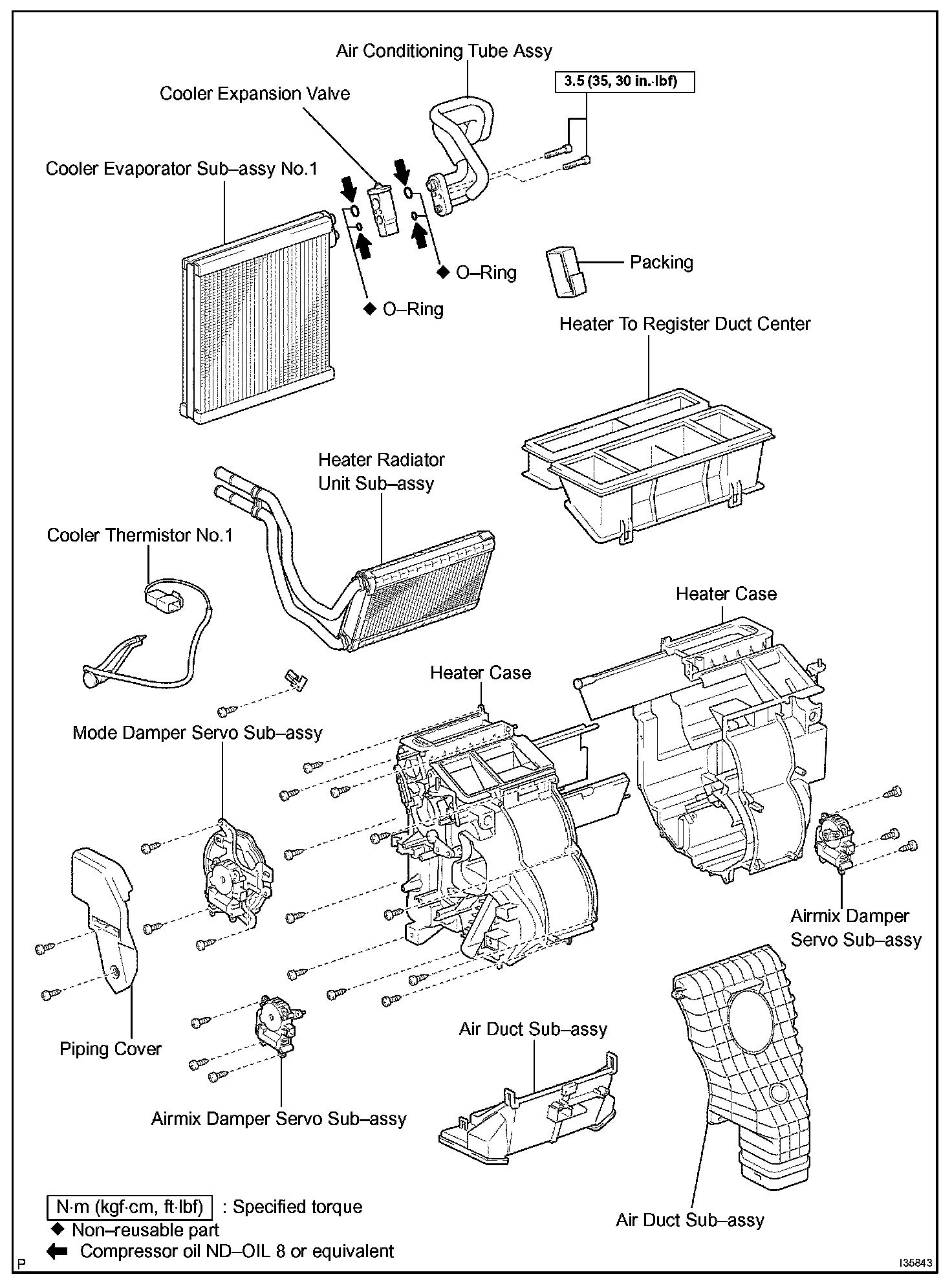

Air Conditioning Radiator Assy Part 1:

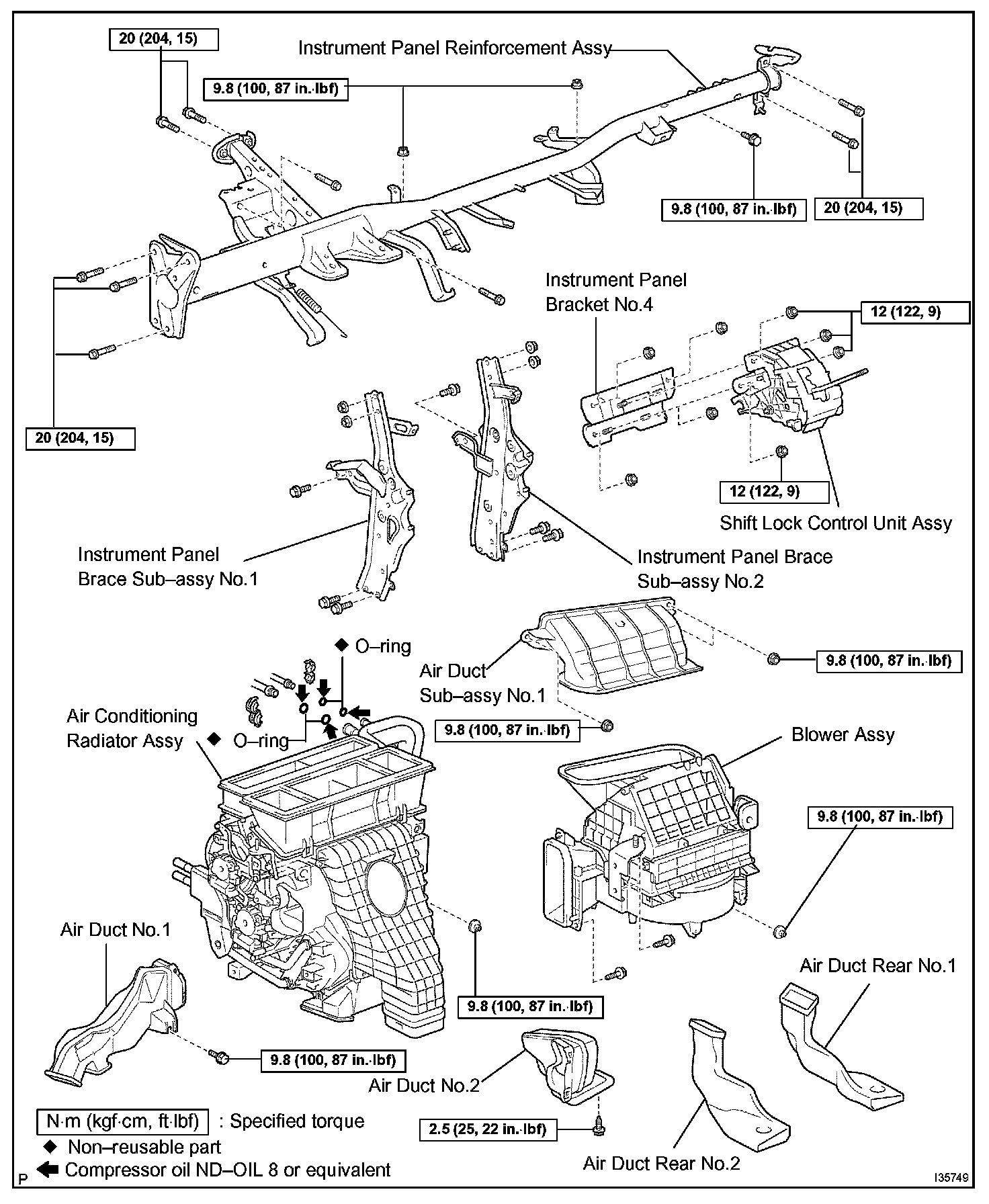

Air Conditioning Radiator Assy Part 2:
