Multi-panel Moon Roof Type

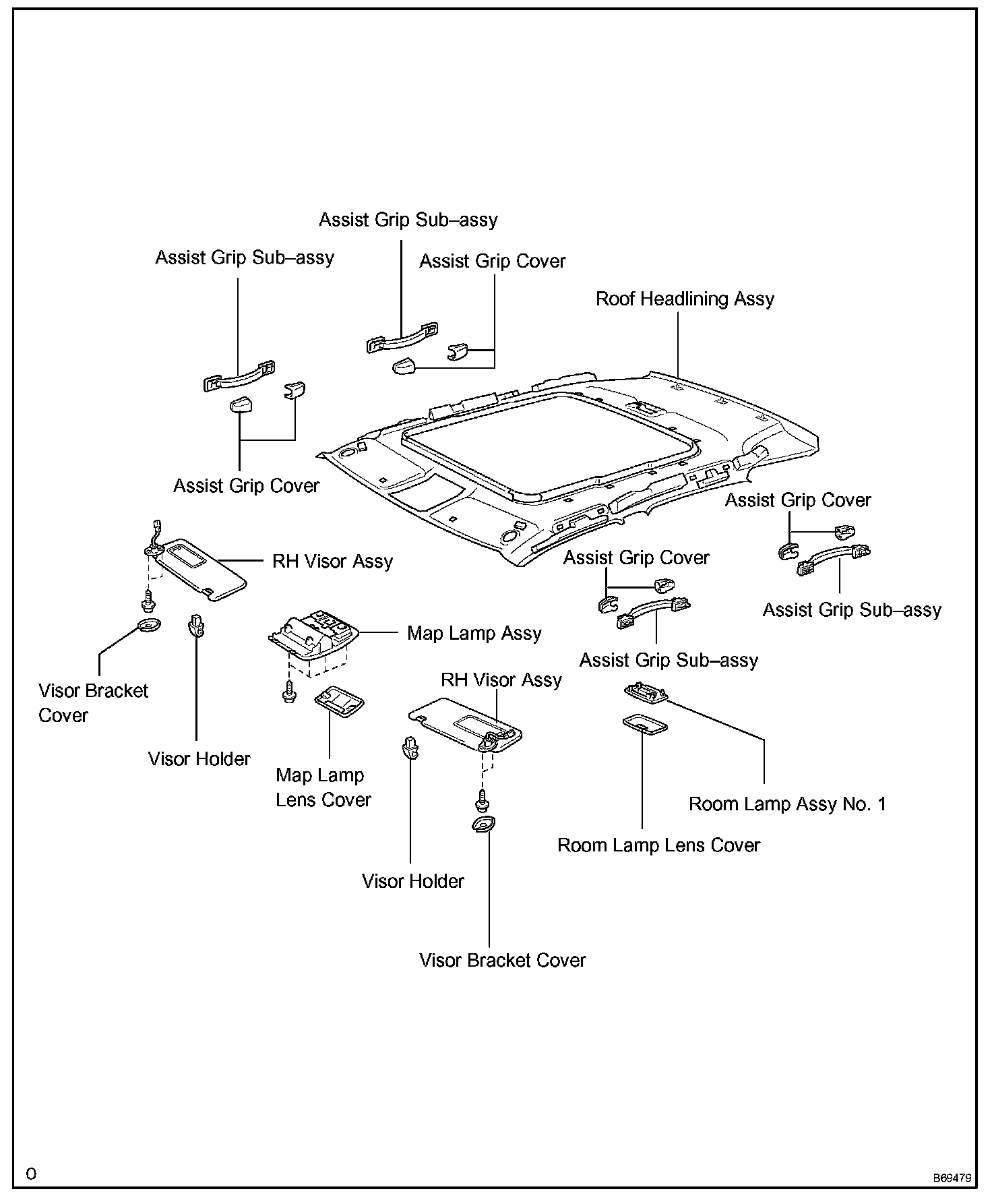

Sliding Roof (Multi-panel Moon Roof Type) - Part 1:

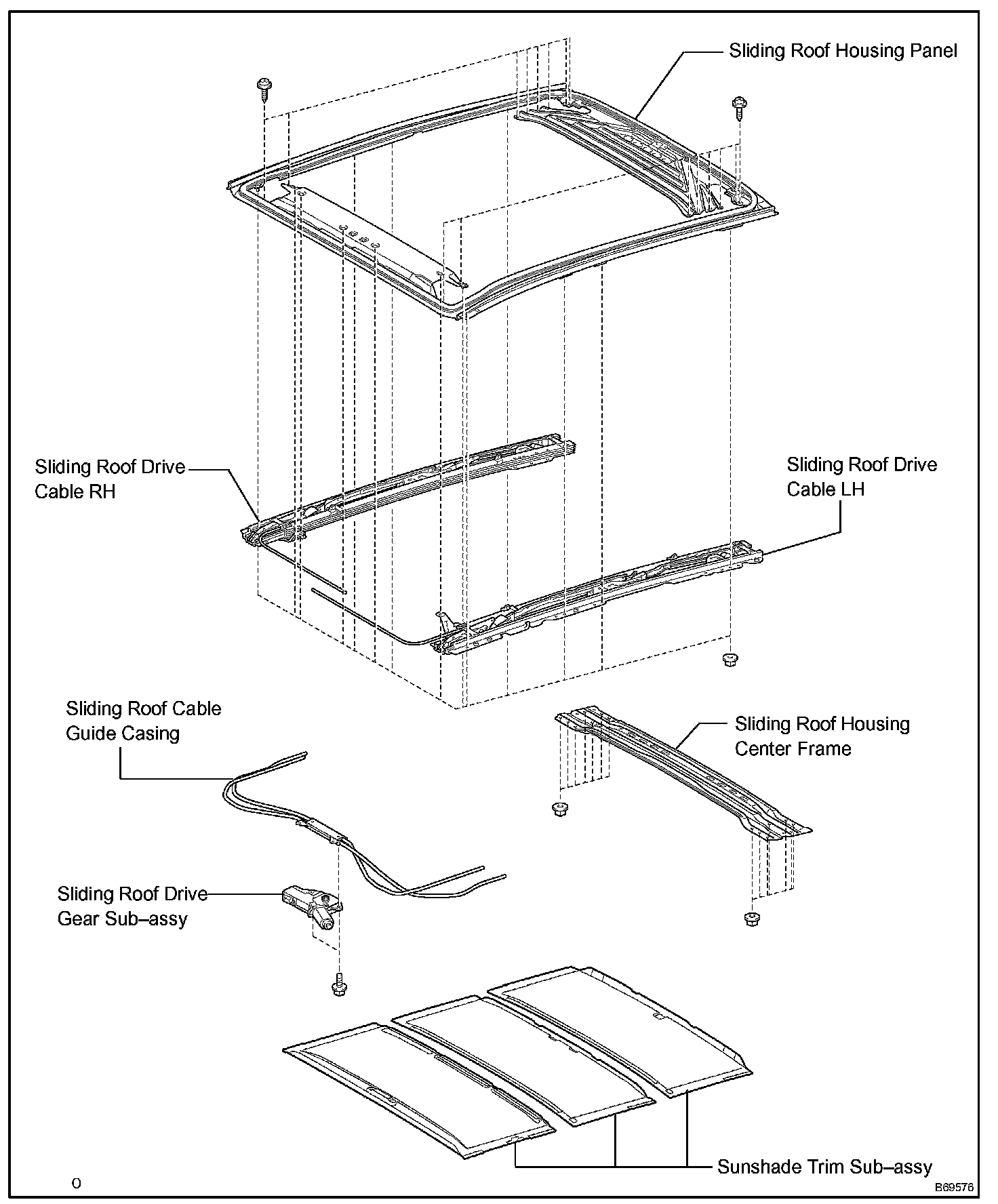

Sliding Roof (Multi-panel Moon Roof Type) - Part 2:

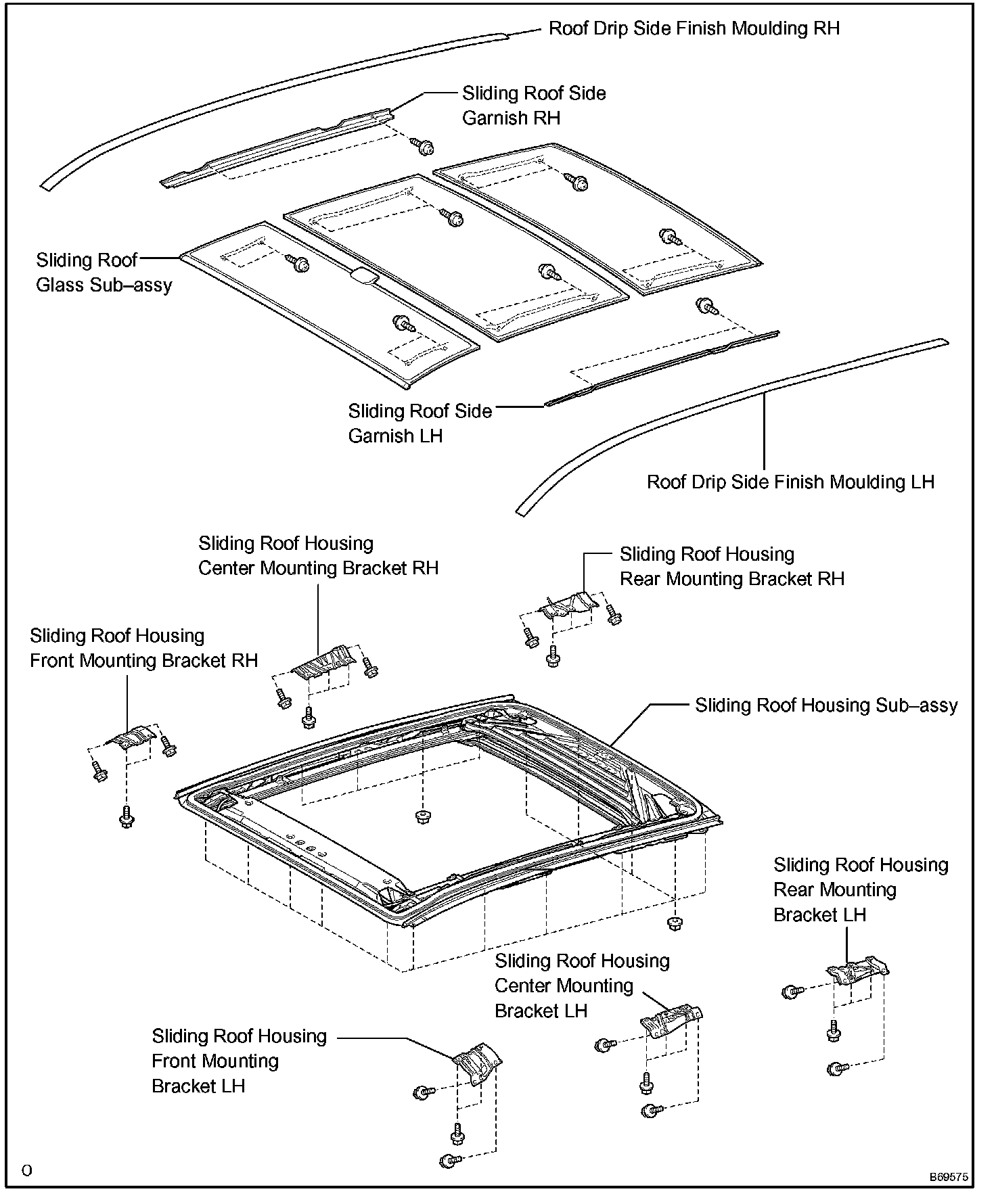

Sliding Roof (Multi-panel Moon Roof Type) - Part 3:



Sliding Roof (Multi-panel Moon Roof Type) - Part 4:
