Lexus Truck
>>
2004
>>
RX 330 FWD V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Sunroof / Moonroof
>>
Standard Type
Standard Type

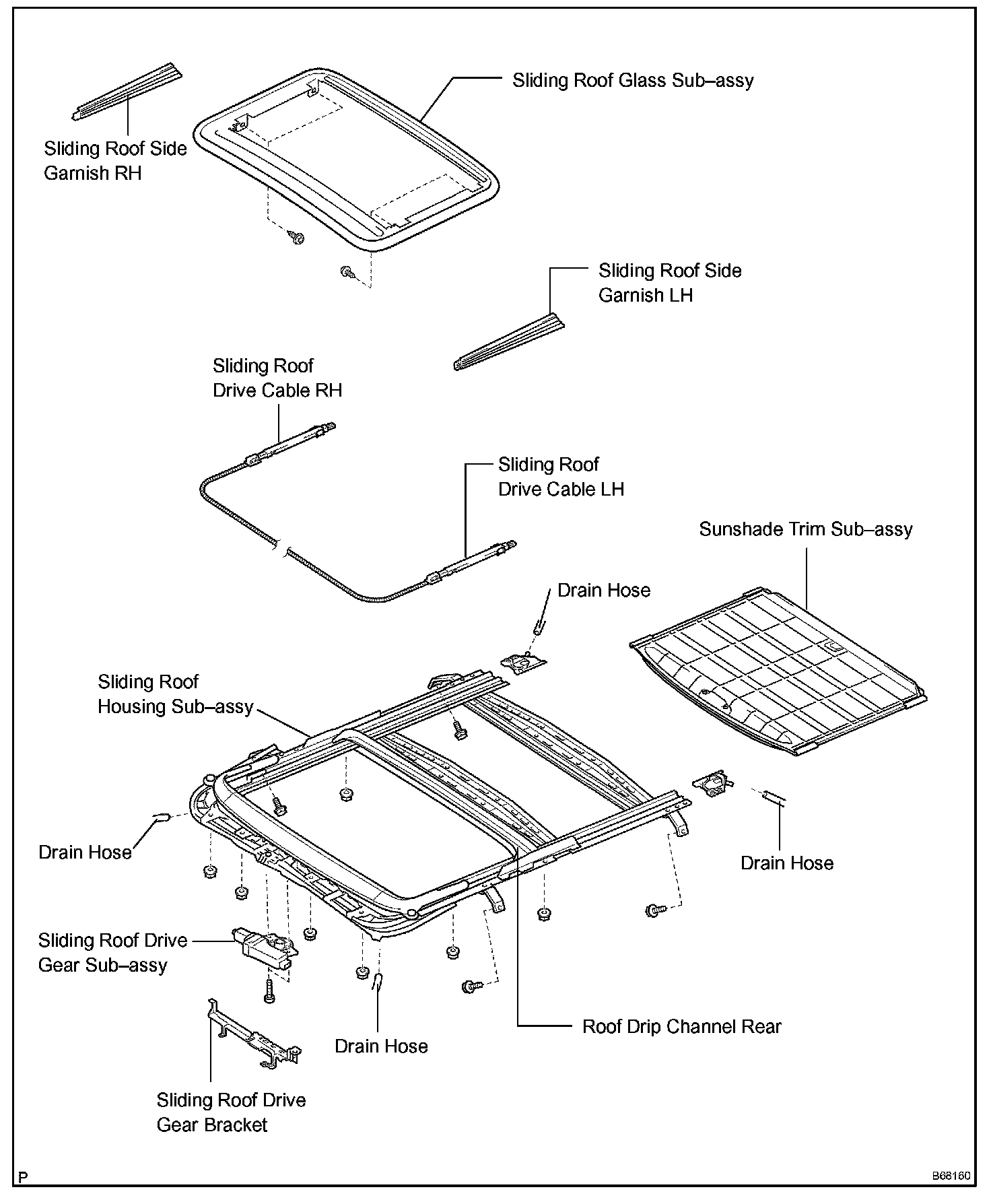

Sliding Roof(standard Type) Part 1:
Sliding Roof(standard Type) Part 2:
Sliding Roof(standard Type) Part 3:
