Blower Motor: Service and Repair

Blower Assy:

BLOWER ASSY

OVERHAUL

HINT:
- When removing the cooling unit motor sub assy with fan, follow procedures 1 through 7 and 10.

1. REMOVE FRONT DOOR SCUFF PLATE RH
2. REMOVE COWL SIDE TRIM SUB-ASSY RH
3. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2
4. REMOVE GLOVE COMPARTMENT DOOR ASSY
5. REMOVE ECM

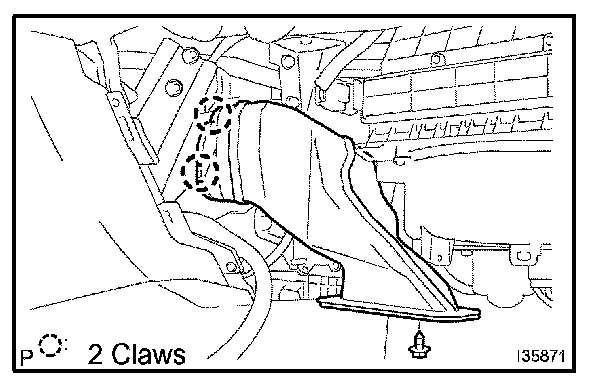

6. REMOVE AIR DUCT NO.2
a. Remove the screw.
b. Release the 2 claw fittings and remove the air duct No.2.

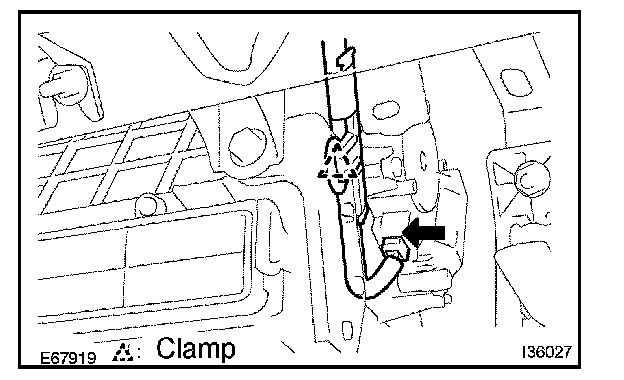

7. DISCONNECT WIRING AIR INDICATOR HARNESS SUB-ASSY NO.2
a. Remove the clamp and disconnect the connectors.

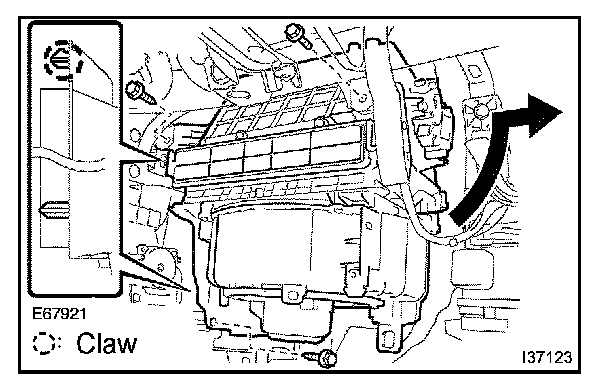

8. REMOVE BLOWER ASSY

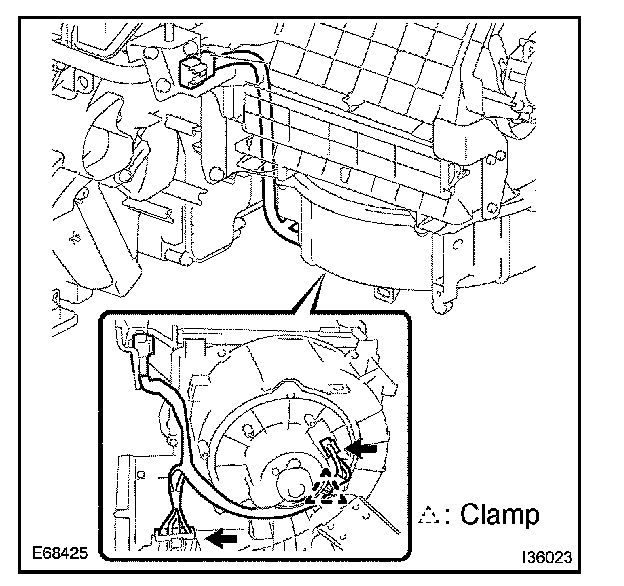

a. Remove the clamp and disconnect the connectors.




b. Remove the 4 screws and the nut, and then the bracket.




c. Remove the bolt and 2 screws.
d. Release the claw fitting and remove the blower assy.

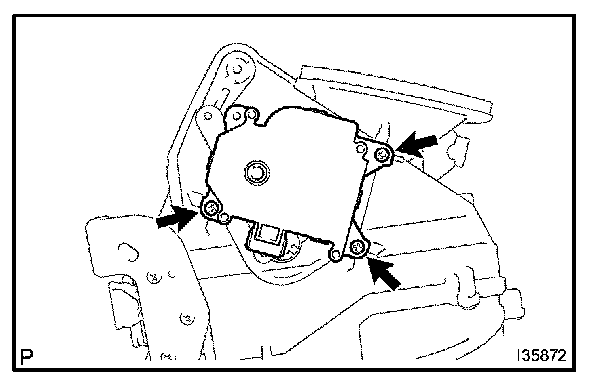

9. REMOVE RECIRCULATION DAMPER SERVO SUB-ASSY
a. Remove the 3 screws and recirculation damper servo sub-assy.

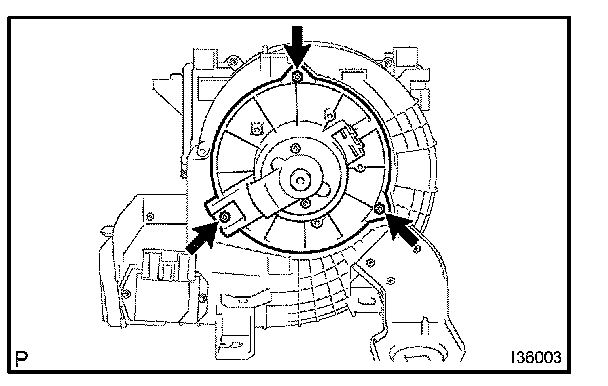

10. REMOVE COOLING UNIT MOTOR SUB-ASSY W/FAN
a. Remove the 3 screws and cooling unit motor sub-assy w/ fan.

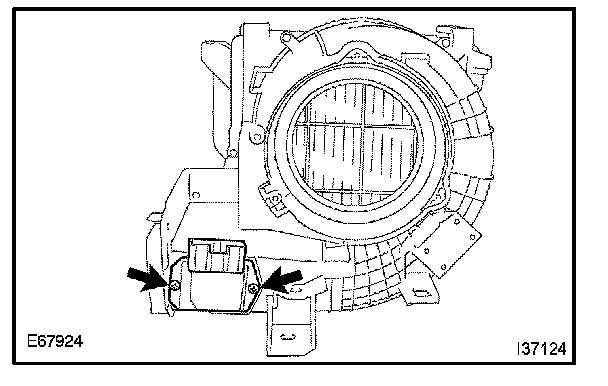

11. REMOVE BLOWER MOTOR CONTROL
a. Remove the 2 screws and blower motor control.

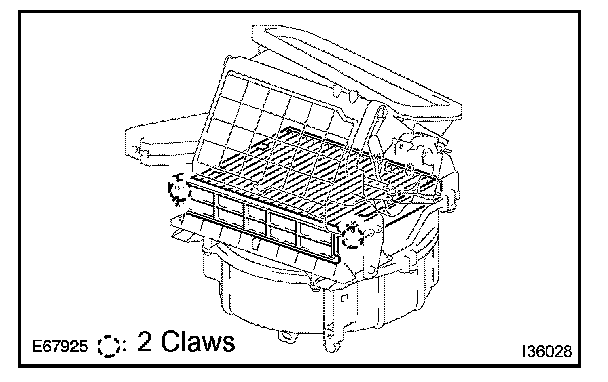

12. REMOVE CLEAN AIR FILTER
a. Release the 2 claw fittings and remove the air filter sub-assy.

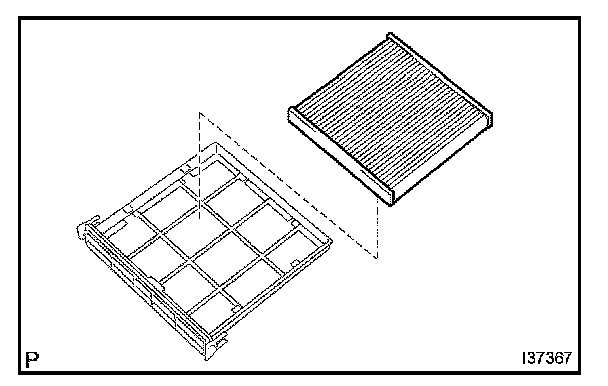

b. Remove the air refiner element from the air filter cover plate.

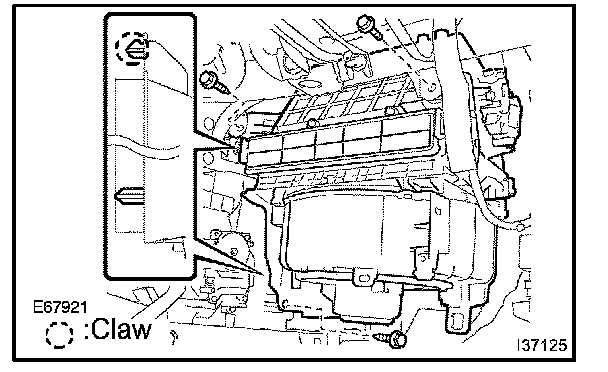

13. INSTALL BLOWER ASSY
a. Install the blower assy with the claw fitting.
b. Install the bolt and 2 screws.

Torque: 9.8 Nm (100 kgf.cm, 87in.lbf) (Bolt)




c. Install the bracket with the 4 screws and nut.

Torque: 9.8 Nm (100 kgf.cm, 87in.lbf) (Nut)




d. Install the clamp and connect the connectors.




14. INSTALL AIR DUCT NO.2
a. Install the air duct No.2 with the screw.

Torque: 2.5 Nm (25 kgf.cm, 22 in.lbf)

15. INSTALL ECM
