Heater Relay Circuit
HEATER RELAY CIRCUITCIRCUIT DESCRIPTION
The heater relay is turned on by signals from the A/C amplifier. It supplies power to the blower motor.

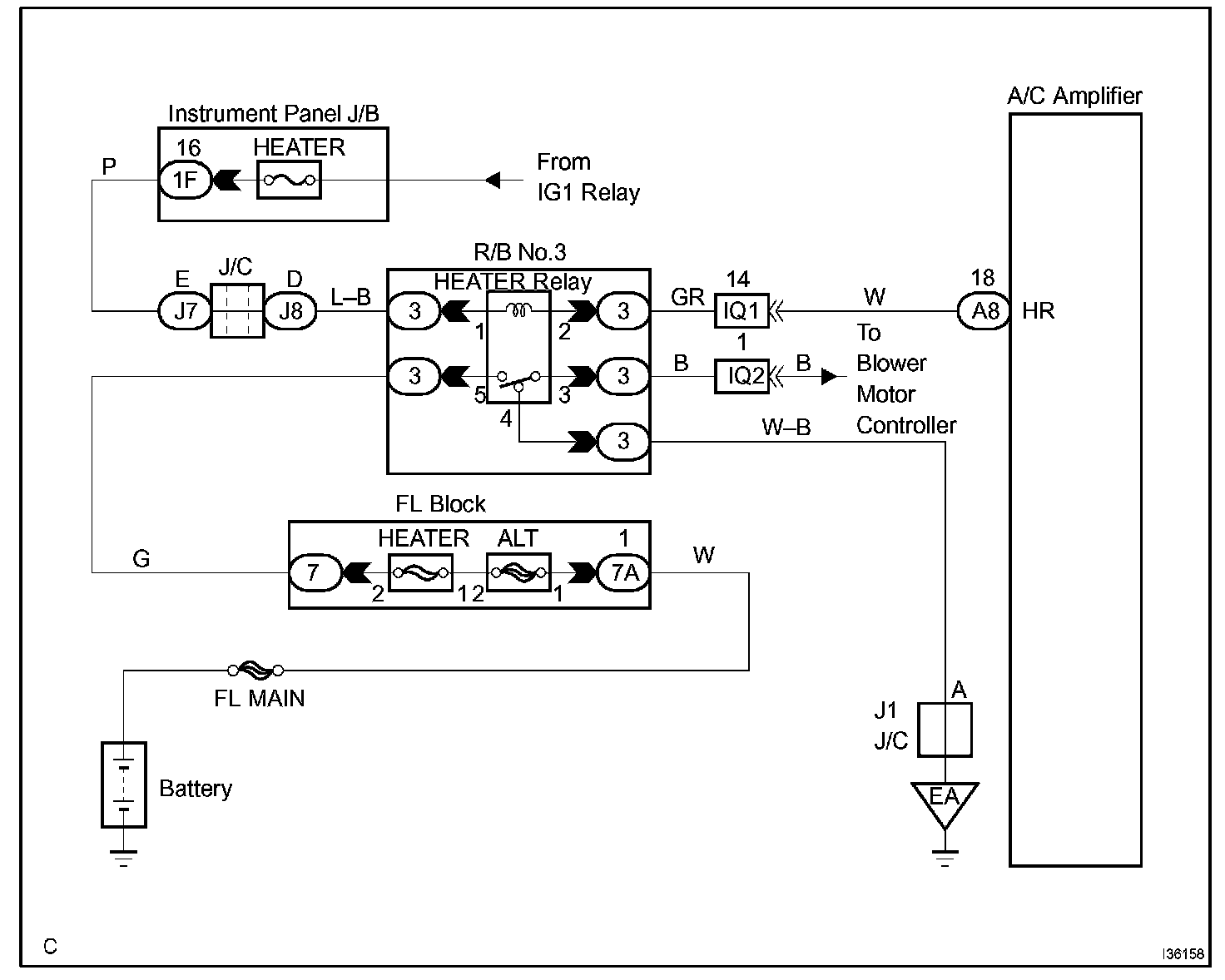

Wiring Diagram:
Step 1 - 2:
Step 3:

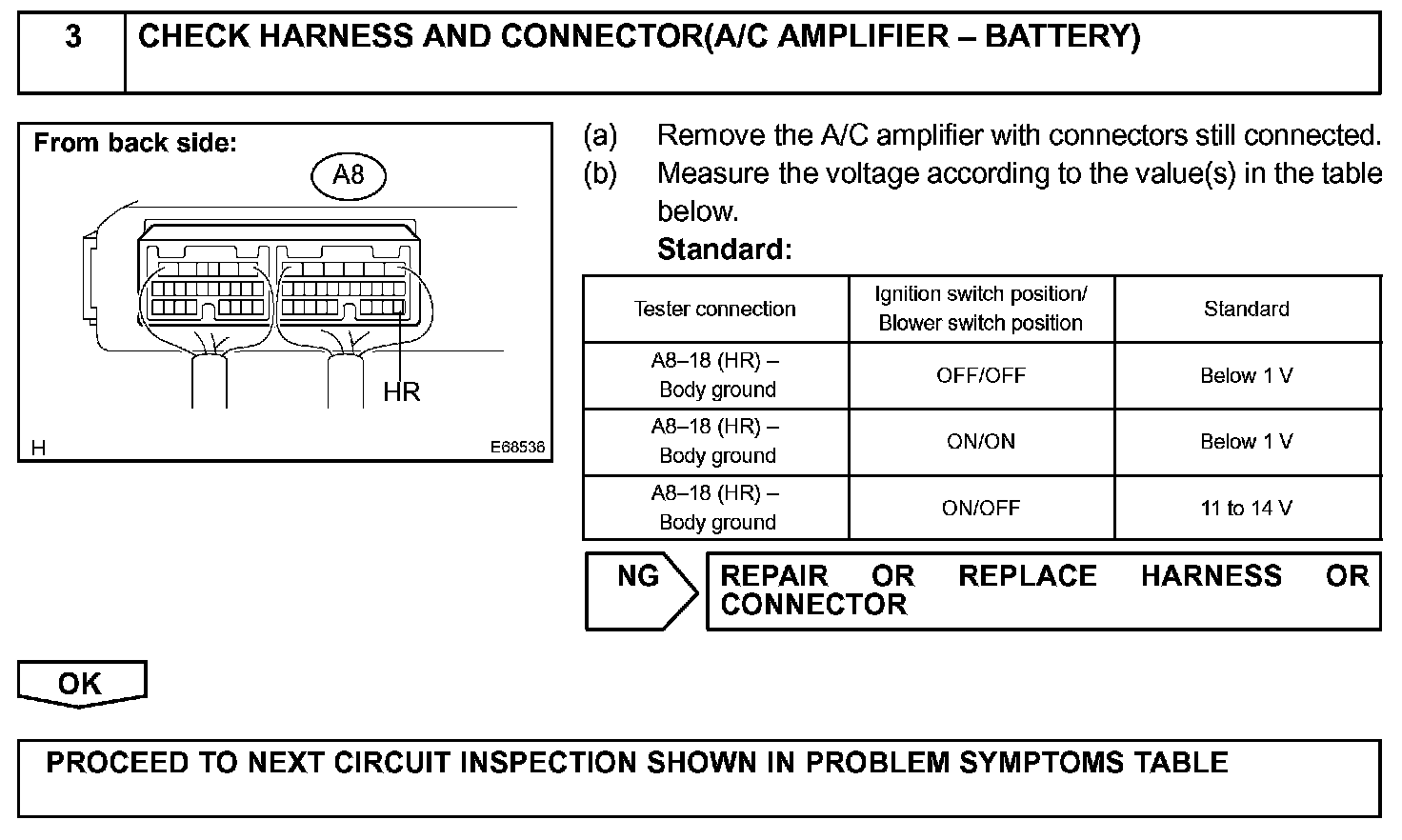

INSPECTION PROCEDURE
CIRCUIT DESCRIPTION
The heater relay is turned on by signals from the A/C amplifier. It supplies power to the blower motor.
INSPECTION PROCEDURE
