Pinout Values and Diagnostic Parameters
Terminals Of ECU/Pinouts - Skid Control ECU:

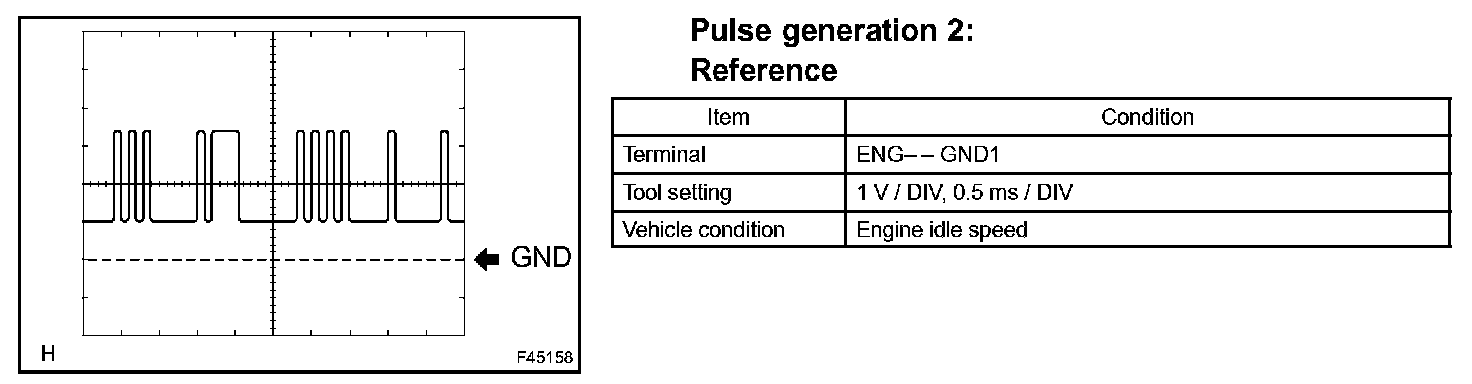

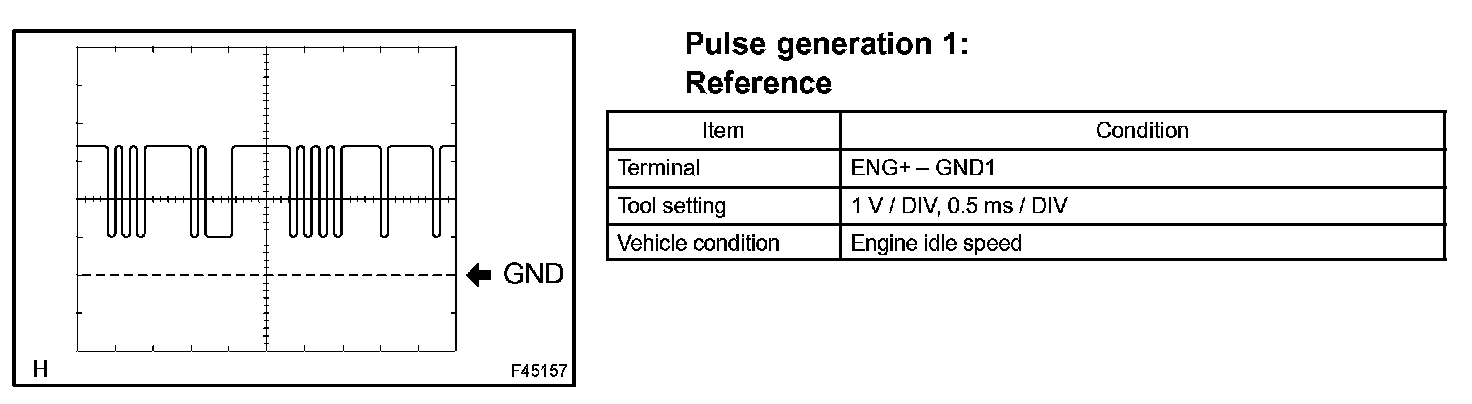

Oscilloscope Waveforms Part 1:
Oscilloscope Waveforms Part 2:
