Lighting and Horns: Description and Operation
DESCRIPTION1. AFS (Adaptive Front-Lighting System)
a. The AFS operates to illuminate the best position for smooth driving by projecting the low beam depending on the vehicle speed and steering angle.

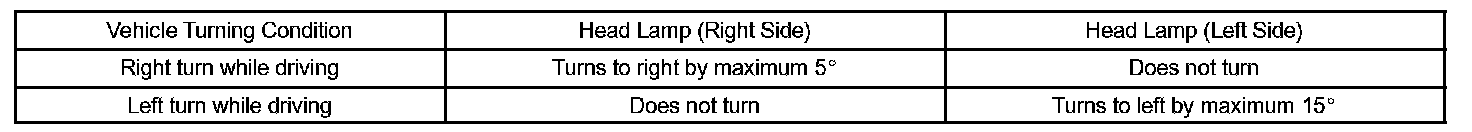

b. Standard Operation
1. The AFS ECU moves the low beam in the headlamp considering the vehicle running condition, etc.

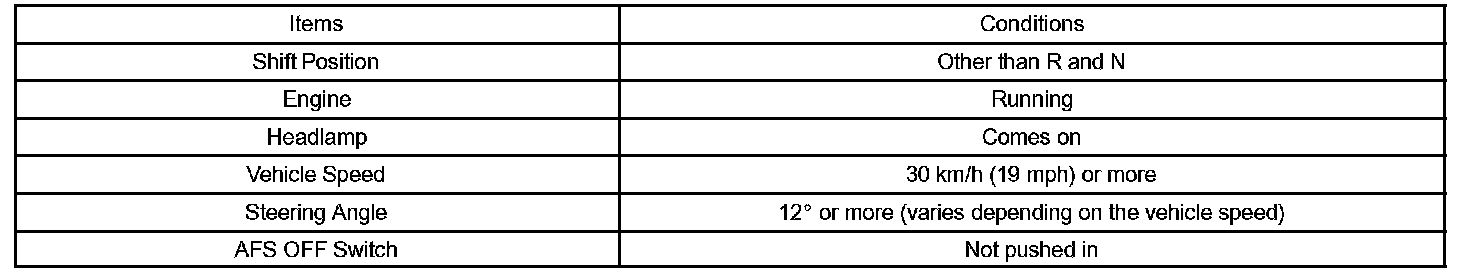

c. Start-up Conditions
1. The AFS starts operating when the conditions are met.
HINT:
- Continues operation as long as vehicle speed is kept above 6 km/h (3.6 mph) when operation has started once after vehicle speed reaches 30 km/h (19 mph) or more.
- Continues operation as long as steering angle is kept at 10 ° or more when operation has started once after steering angle reaches 12 ° or more.
d. Operation Stop Condition
1. The AFS stops operating if any of the conditions are met.
