Retainer, Headlamp Protector
RETAINER,HEADLAMP PROTECTORREPLACEMENT
1. REMOVE ENGINE UNDER COVER NO.1
2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSY RH
3. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSY LH
4. REMOVE FRONT BUMPER COVER
5. REMOVE LH HEADLAMP ASSY
6. INSTALL HEADLAMP PROTECTOR RETAINER UPPER LH
HINT: To minimize damage to the headlight unit in case of a collision, the stays for the headlight unit have been constructed to break off. The stays are available as supply parts for low-cost repair.

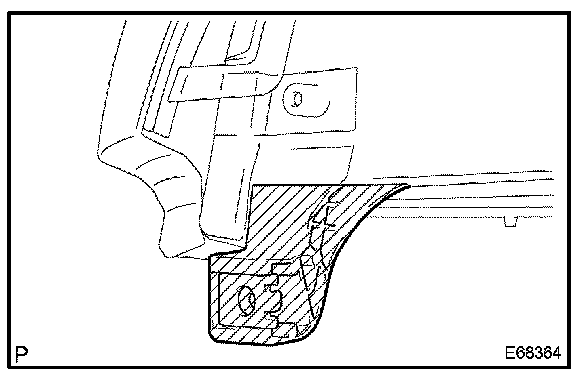

a. Cut off the part shaded in the illustration and sand smooth with sandpaper.
NOTE: After cutting off the part, place the headlamp protector retainer upper LH against the bosses and gradually file any interfering part until proper condition for installation is met.

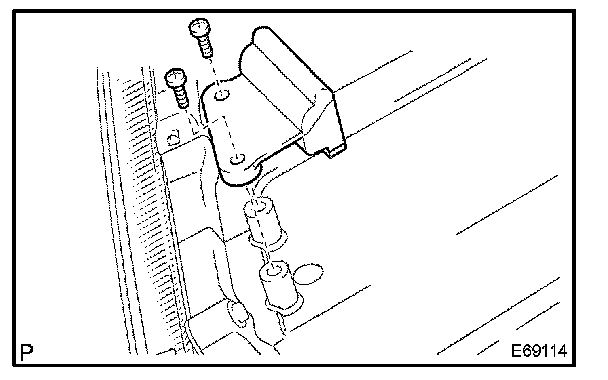

b. Install the headlamp protector retainer upper LH with the 2 screws.
7. INSTALL HEADLAMP PLATE LH
HINT: To minimize damage to the headlight unit in case of a collision, the stays for the headlight unit have been constructed to break off. The stays are available as supply parts for low-cost repair.

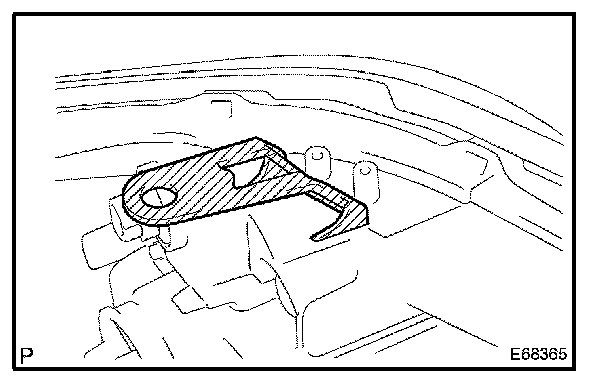

a. Cut off the part shaded in the illustration and sand smooth with sandpaper.
NOTE: After cutting off the part, place the headlamp plate LH against the bosses and gradually file any interfering part until proper condition for installation is met.
b. Install the headlamp plate LH with the screw.
8. INSTALL HEADLAMP PROTECTOR RETAINER LWR LH
HINT: To minimize damage to the headlight unit in case of a collision, the stays for the headlight unit have been constructed to break off. The stays are available as supply parts for low-cost repair.
a. Cut off the part shaded in the illustration and sand smooth with sandpaper.
NOTE: After cutting off the part, place the headlamp protector retainer LWR LH against the bosses and gradually file any interfering part until proper condition for installation is met.

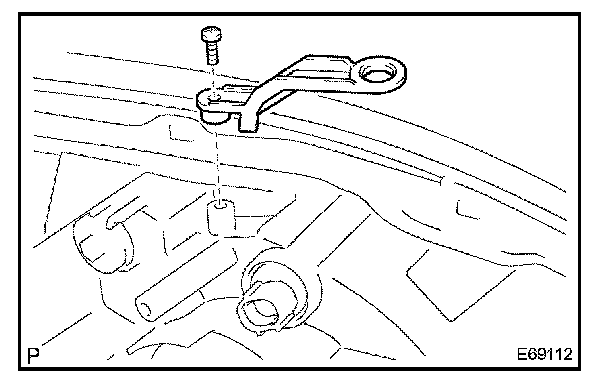

b. Install the headlamp protector retainer LWR LH with the screw.
9. INSTALL HEADLAMP BRACKET LWR LH
HINT: To minimize damage to the headlight unit in case of a collision, the stays for the headlight unit have been constructed to break off. The stays are available as supply parts for low-cost repair.
a. Cut off the part shaded in the illustration and sand smooth with sandpaper.
NOTE: After cutting off the part, place the headlamp bracket LWR LH against the bosses and gradually file any interfering part until proper condition for installation is met.
b. Install the headlamp bracket LWR LH with the 2 screws.
10. HEADLIGHT AIM ONLY
