Low Pitched Horn Assy

LOW PITCHED HORN ASSY

REPLACEMENT
1. REMOVE LOW PITCHED HORN ASSY
a. Disconnect the connector.

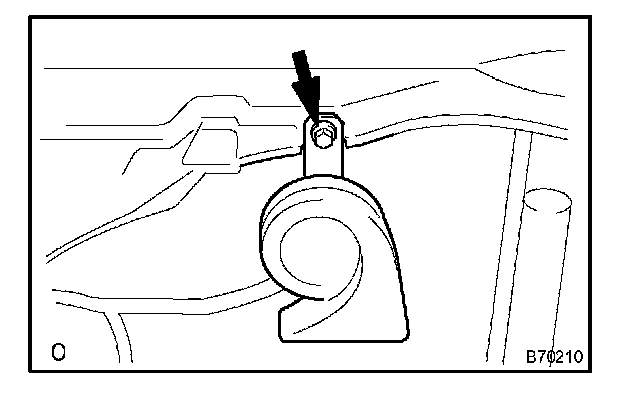

b. Remove the bolt and horn.




2. INSTALL LOW PITCHED HORN ASSY
a. Place the stay onto the baffle part in the radiator support upper and then install the horn with the bolt.

Torque: 20 Nm (204 kgf.cm, 15 ft.lbf)

b. Connect the connector.
