Headlamp Auto Leveling Operation Check

HEADLAMP AUTO LEVELING OPERATION CHECK




a. Check that the initialization (determination of the initial position) of the leveling motor is performed at engine-start.

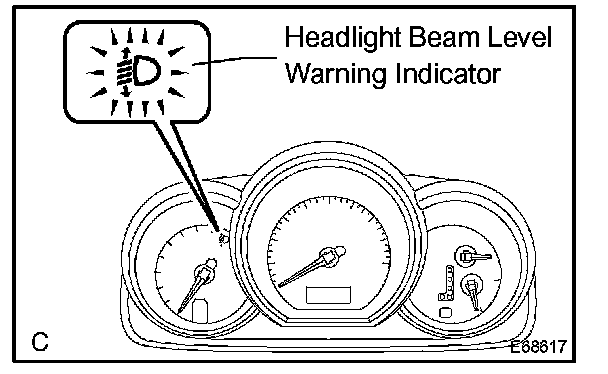

b. Check that the warning indicator in the combination meter assy come on for approximately 3 seconds at the engine-start and then goes off.
c. Check that the projector moves when:
Moving the rear of the vehicle up or down while the engine is running, vehicle stopped, and the headlamp dimmer switch in the HEAD position.

NOTE: Make sure to change the vehicle's height slowly.
