Fail Safe Function

FAIL-SAFE FUNCTION

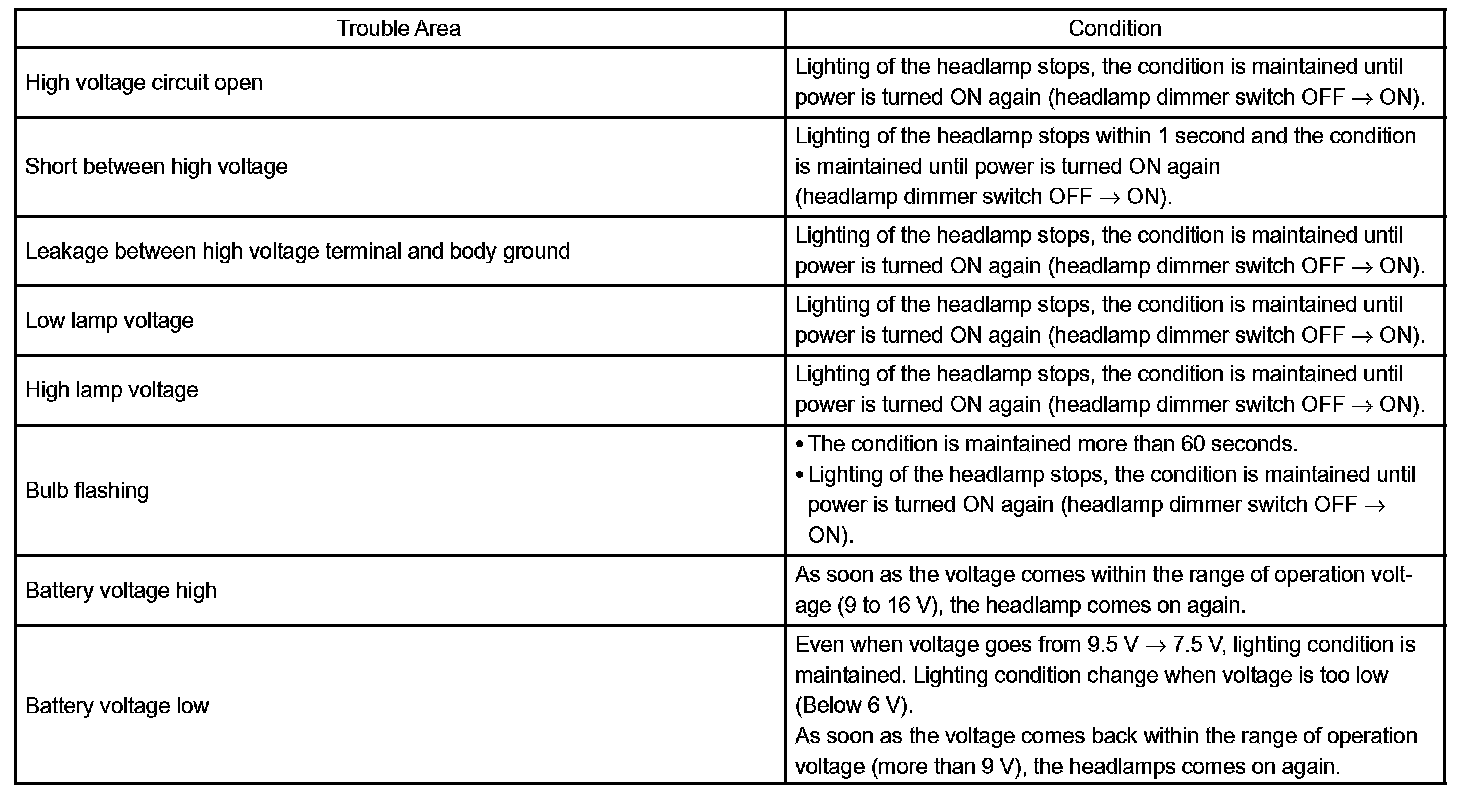

a. Light control computer (HID)

Part 1:

Part 2:

b. Headlamp Leveling ECU Assy

HINT: The Headlamp Leveling Control ECU performs fail-safe when detecting the given troubles.







c. Headlamp Swivel ECU Assy

HINT: The Headlamp Swivel ECU performs fail-safe when detecting the given troubles. The AFS OFF indicator light on the combination meter comes on at the same time.
