Home >> Lexus Truck >> 2004 >> RX 330 FWD V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

Terminals Of ECU/Pinouts - Airbag Sensor Assy Center Part 1:

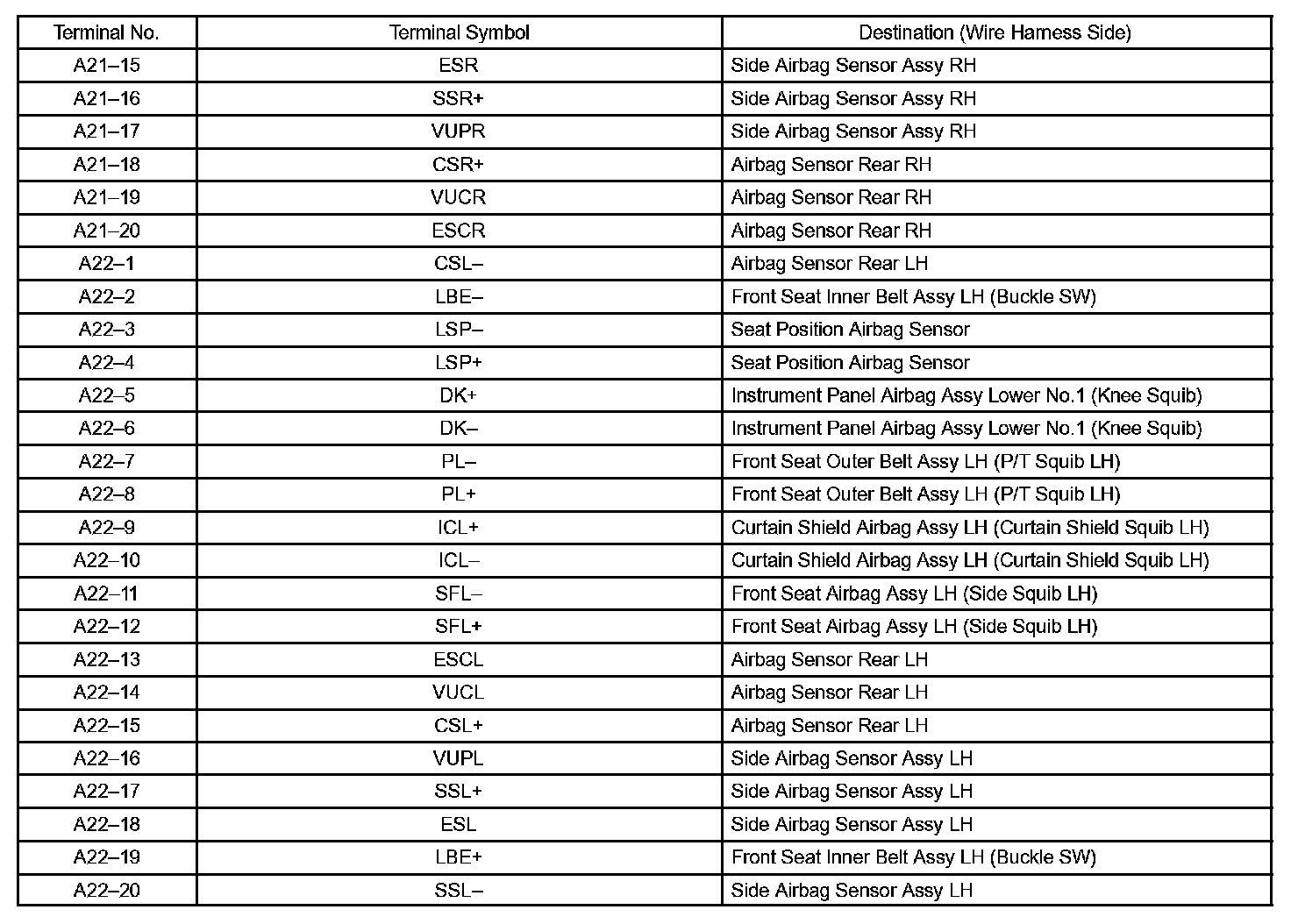

Terminals Of ECU/Pinouts - Airbag Sensor Assy Center Part 2:



Terminals Of ECU/Pinouts - Occupant Classification ECU Part 1:



Terminals Of ECU/Pinouts - Occupant Classification ECU Part 2:
