Monitors, Trips, Drive Cycles and Readiness Codes

THE MONITOR WILL RUN WHENEVER THE FOLLOWING DTCs ARE NOT PRESENT (MONITOR DISABLEMENT LIST)

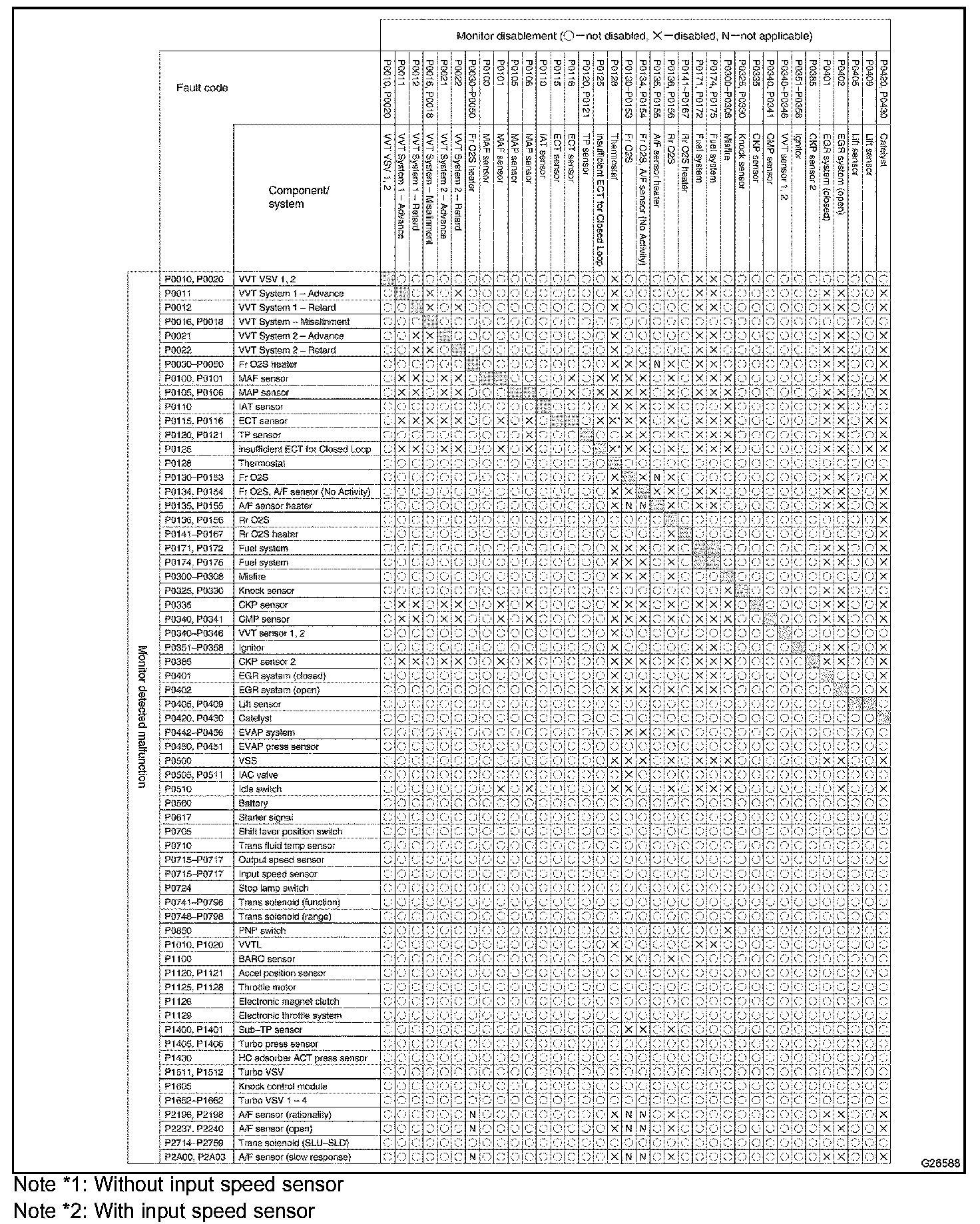

Part 1:

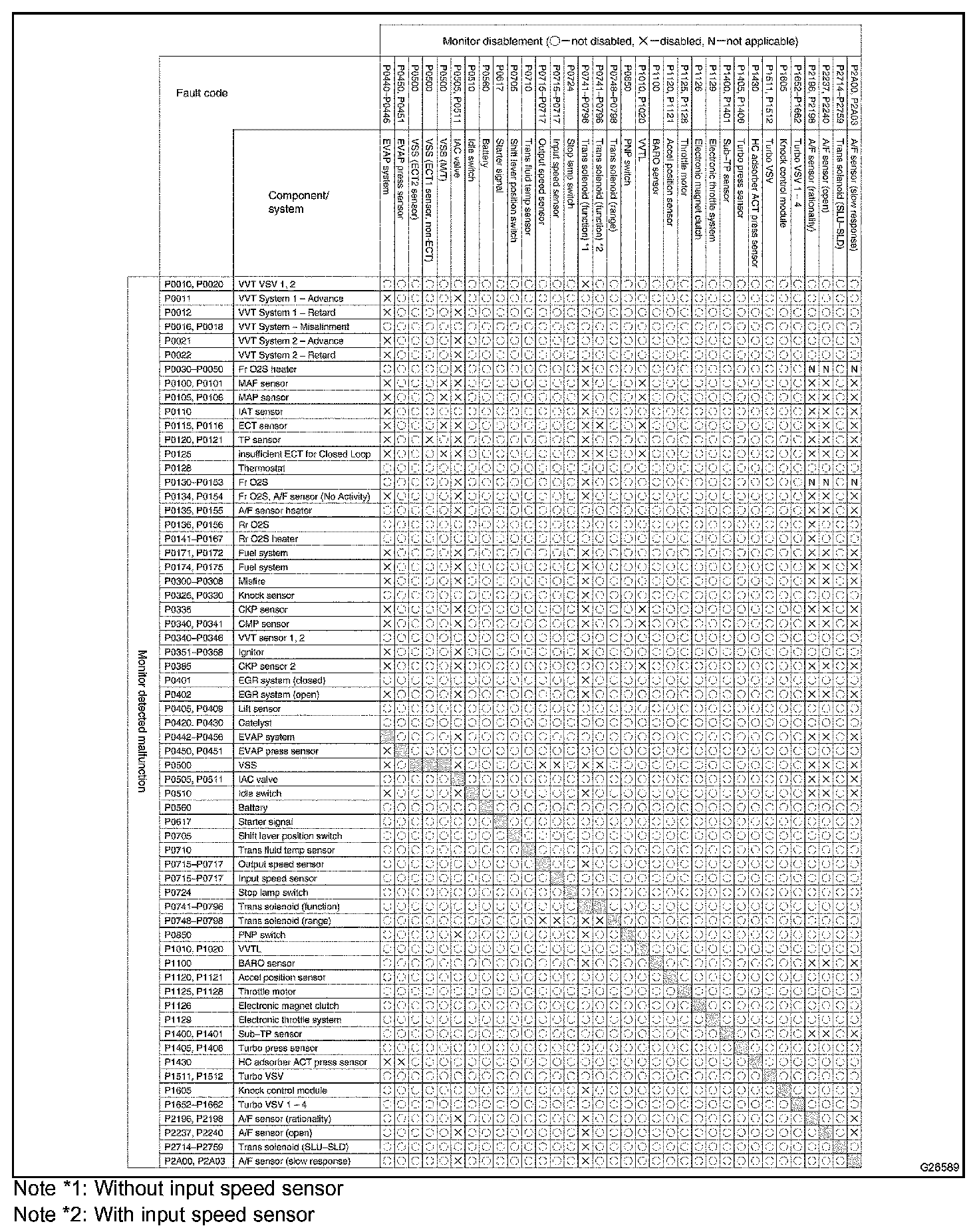

Part 2:

HINT: The table indicates ECM monitoring status for the items in the upper columns if the DTCs in each line on the left are being set.
