On-Vehicle Inspection

ON-VEHICLE INSPECTION




1. WINDSHIELD WASHER MOTOR AND PUMP ASSY
a. Operation Check
1. Fill the washer jar with the washer fluid.

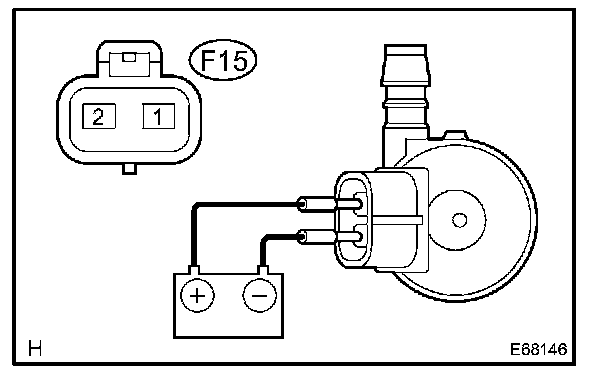

2. Connect the positive battery (+) lead to terminal 1 of the windshield washer motor and pump assy, and the negative battery (-) lead to terminal 2.Check that washer fluid flows from the washer jar.




2. REAR WASHER MOTOR ASSY
a. Operation Check
1. Fill the washer jar with the washer fluid.
2. Connect the positive battery (+) lead to terminal 1 of the windshield washer motor and pump assy, and the negative battery (-) lead to terminal 2.Check that washer fluid flows from the washer jar.




3. HEADLAMP CLEANER MOTOR AND PUMP ASSY
a. Operation Check
1. Fill the washer jar with the washer fluid.
2. Connect the positive battery (+) lead to terminal 1 of the windshield washer motor and pump assy, and the negative battery (-) lead to terminal 2.Check that washer fluid flows from the washer jar.







4. RAIN SENSOR

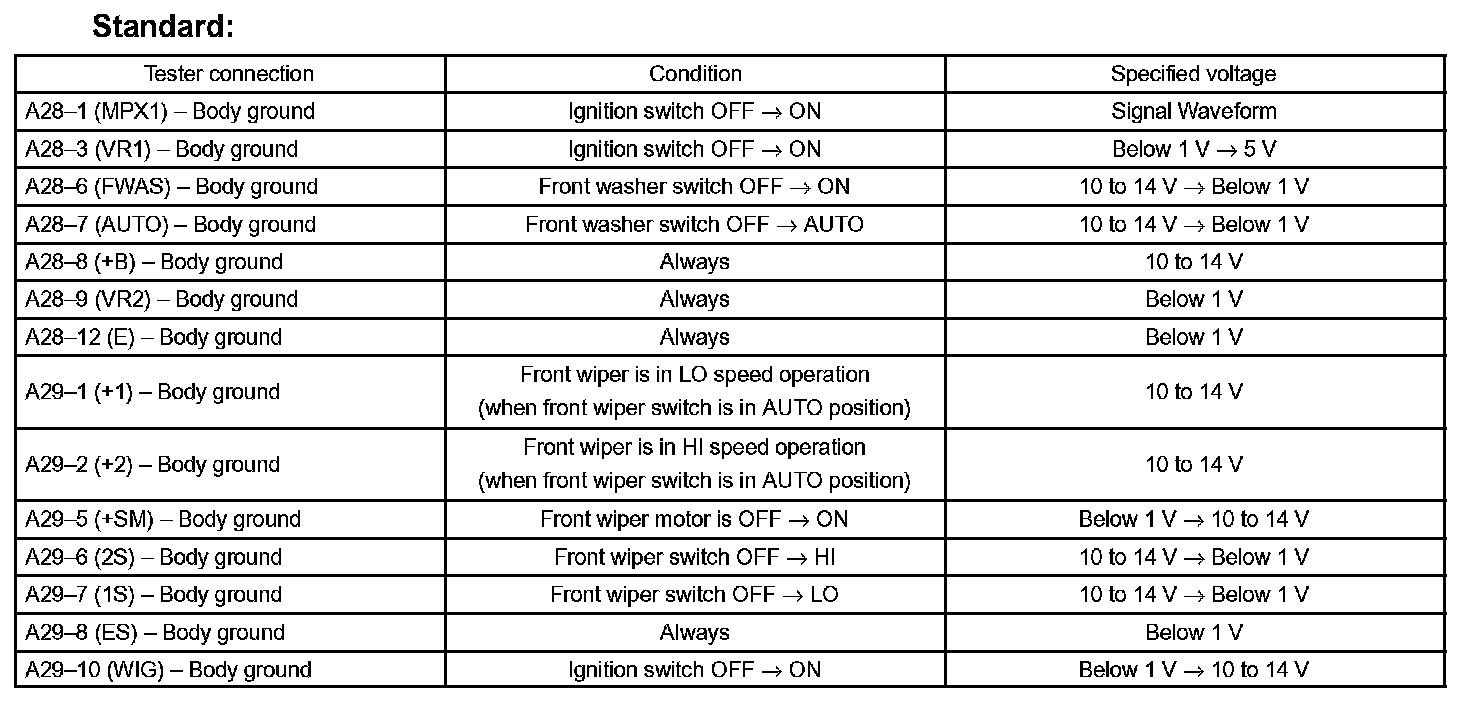

a. Measure the voltage according the value(s) in the table.







5. WINDSHIELD WIPER RELAY ASSY
a. Measure the voltage according to the value(s) in the table.
