DTC C1251 HYDRAULIC BRAKE BOOSTER PUMP MOTOR MALFUNCTION

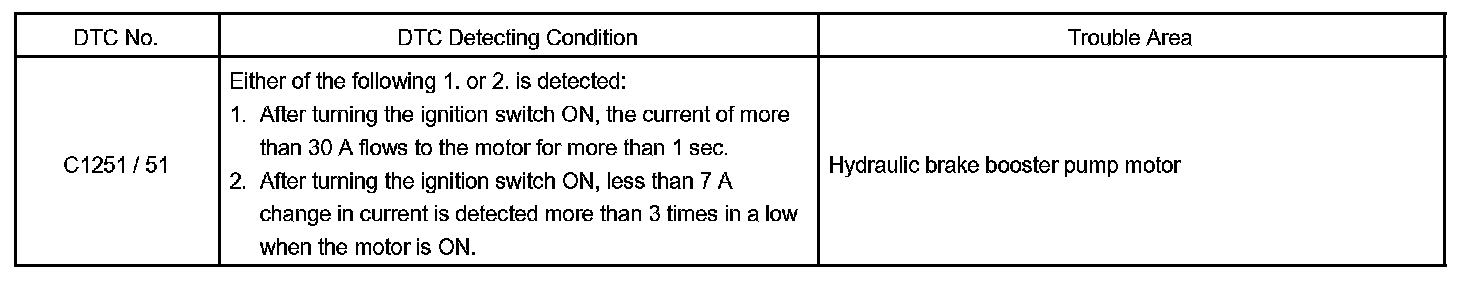

DTC Detecting Condition:
CIRCUIT DESCRIPTION
Wiring Diagram:

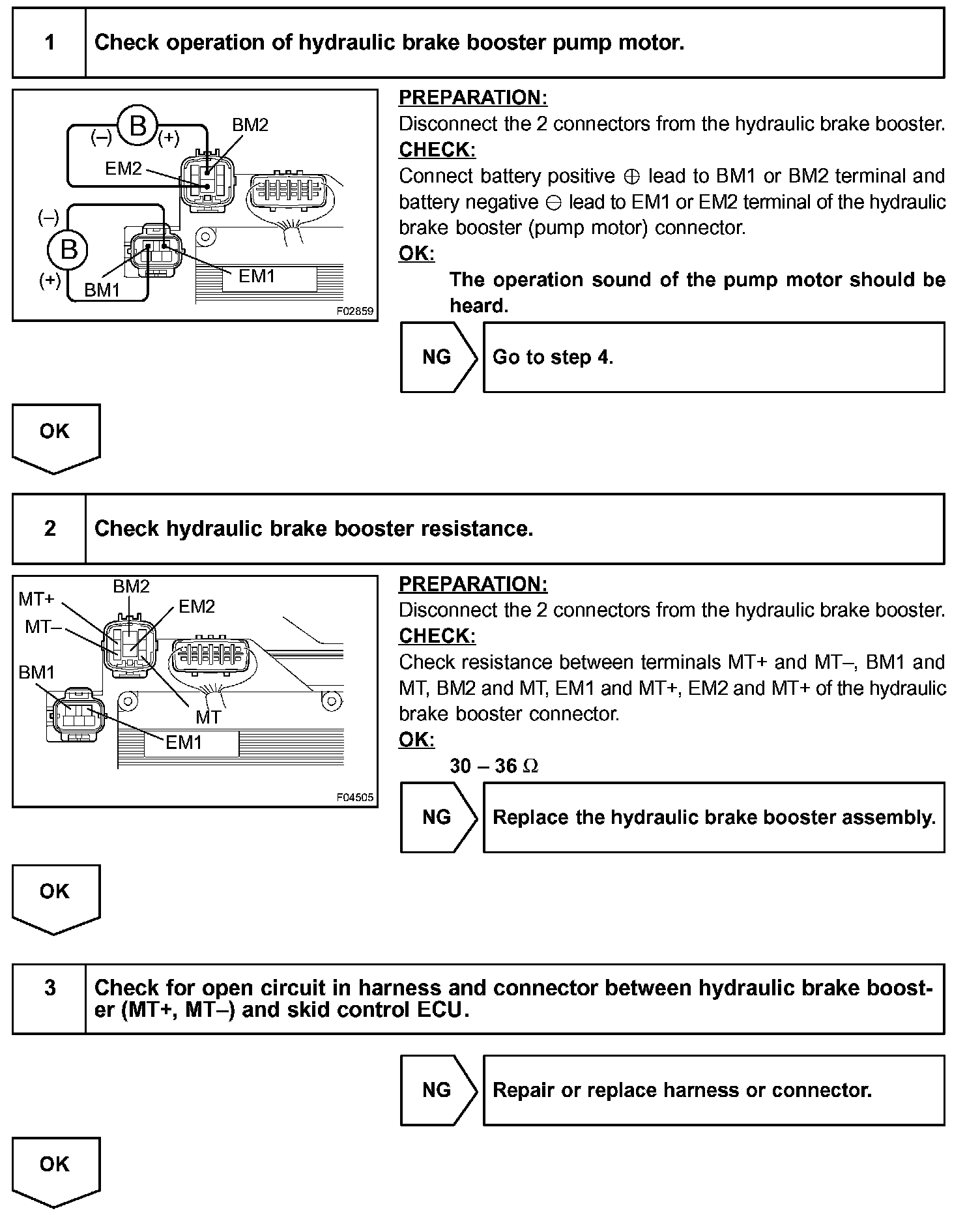

Step 1 - 3:
Step 3 (Continued) - 5:
INSPECTION PROCEDURE
